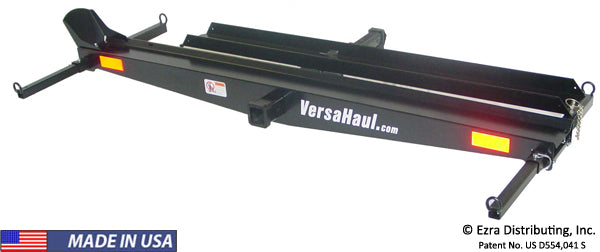

VersaHaul

Portamotos individual con rampa

Scooter Carrier/Motorcycle Carrier
(Model No. VH-55 RO)

Starting at: $849.99 USD

Key Features

    • Se adapta a cualquier enganche de clase III o IV.
    • Acabado con pintura en polvo
    • Se adapta a neumáticos de bicicleta anchos.
    • Vía de transporte 71,5" X 6,5"
    • Barras de amarre, tope de rueda y reflectores
Portamotos individual con rampa
Secure Checkout 256-bit SSL encryption on every order
Free Shipping On all orders over $50 across the USA
Price Match Guarantee Found it cheaper? We'll match it
Easy Returns Hassle-free returns within 30 days

VersaHaul

Scooter Carrier/Motorcycle Carrier
(Model No. VH-55 RO)

Starting at: $849.99 USD
$849.99
Los gastos de envío se calculan en la pantalla de pago.
This product usually ships in 2-7 business days.
Pay using HSA/FSA with flex Select Flex at checkout to pay for your HSA/FSA eligible items

Description
Specifications
Information
  • El transportador VH-55 RO está diseñado para transportar de forma segura 500 libras.
  • La rampa para motocicletas limita las bicicletas a neumáticos de menos de 5,5 pulgadas de ancho.
  • Las scooters Helix, Reflex, Gold Wing y Burgman no pueden transportarse en un VH-55 debido a su longitud (no a su peso). En su lugar, se necesita un portabicicletas VH-SPORT.
  • La mayoría de los enganches de Clase III están clasificados para 500 libras.
  • La mayoría de los enganches de Clase IV tienen una capacidad de carga de 1000 lb. Su peso de transporte puede estar limitado por la capacidad de carga de su vehículo.
  • El VH-55 cuenta con un enganche de Clase III en el extremo del portacargas. Su uso está limitado a aplicaciones de servicio ligero.
  • El peso máximo de remolque, independientemente de su vehículo, es de 3000 libras.

Características:

  • Se adapta a cualquier enganche de clase III o IV.
  • Acabado con pintura en polvo
  • Se guarda fácilmente
  • Empacado para envío por UPS
  • Admite neumáticos de bicicleta anchos - Pista de transporte de 6,5" x 71,5"
  • Cuatro barras de amarre retráctiles
  • Un tope de rueda - Dos reflectores - Un pasador de presión

Qué incluye:

  • Soporte de bloqueo antivuelco
  • Eje de sujeción de 2 pulg. x 2 pulg. x 24 pulg.
  • Cuatro barras de amarre retráctiles
  • Una pista portadora de 6,5 pulgadas x 71,5 pulgadas
  • Un tope de rueda
  • Dos reflectores

Distancia mínima al suelo

Utilice la tabla a continuación para determinar la distancia mínima al suelo necesaria para cargar correctamente su scooter de movilidad en un portaequipajes VH-MS o VH-MS XL. Los resultados están en pulgadas.

Distancia entre ejes del scooter de movilidad (pulgadas)

Altura del enganche (pulgadas)
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
8
0,99
1.02
1.06
1.09
1.12
1.16
1.19
1.23
1.26
1.29
1.33
1.36
1.39
1.43
1.46
9
1.11
1.15
1.19
1.23
1.27
1.30
1.34
1.38
1.42
1.45
1.49
1.53
1.57
1.60
1.64
10
1.24
1.28
1.32
1.36
1.41
1.45
1.49
1.53
1.57
1.62
1.66
1.70
1.74
1.78
1.83
11
1.36
1.41
1.45
1,50
1.55
1.59
1.64
1.68
1.73
1.78
1.82
1.87
1.92
1.96
2.01
12
1.48
1.54
1.59
1.64
1.69
1.74
1,79
1.84
1.89
1.94
1,99
2.04
2.09
2.14
2.19
13
1.61
1.66
1.72
1.77
1.83
1.88
1.94
1,99
2.05
2.10
2.16
2.21
2.27
2.32
2.38
14
1.73
1,79
1.85
1.91
1.97
2.03
2.09
2.15
2.21
2.27
2.32
2.38
2.44
2.50
2.56
15
1.86
1.92
1.98
2.05
2.11
2.17
2.24
2.30
2.37
2.43
2.49
2.56
2.62
2.68
2.75
16
1.98
2.05
2.12
2.19
2.25
2.32
2.39
2.46
2.53
2.59
2.66
2.73
2.80
2.86
2.93
17
2.11
2.18
2.25
2.32
2.40
2.47
2.54
2.61
2.69
2.76
2.83
2.90
2.98
3.05
3.12
18
2.23
2.31
2.39
2.46
2.54
2.62
2.69
2.77
2.85
2.92
3.00
3.08
3.15
3.23
3.13
19
2.36
2.44
2.52
2.60
2.68
2.77
2.85
2.93
3.01
3.09
3.17
3.25
3.33
3.42
3.50
20
2.49
2.57
2.66
2.74
2.83
2.92
3.00
3.09
3.17
3.26
3.34
3.43
3.52
3.60
3.69
21
2.61
2.70
2.80
2.89
2.98
3.07
3.16
3.25
3.34
3.43
3.52
3.61
3.70
3.79
3.88
22
2.74
2.84
2.93
3.03
3.12
3.22
3.31
3.41
3.50
3.60
3.69
3.79
3.88
3.98
4.07
23
2.87
2.97
3.07
3.17
3.27
3.37
3.47
3.57
3.67
3.77
3.87
3.97
4.07
4.17
4.27
24
3.00
3.11
3.21
3.32
3.42
3.52
3.63
3.73
3.84
3.94
4.05
4.15
4.26
4.36
4.46
Peso aproximado del envío: 69 libras.
Capacidad de carga: 500 libras.
Longitud del riel portador : 71,5 pulg.
Ancho del riel portador: 6,5 pulg.
Pasador al centro del riel: 21,5 pulg.
Peso aproximado del envío: 69 libras.
Capacidad de carga: 500 libras.
Longitud del riel portador : 71,5 pulg.
Ancho del riel portador: 6,5 pulg.
Pasador al centro del riel: 21,5 pulg.
