VersaHaul

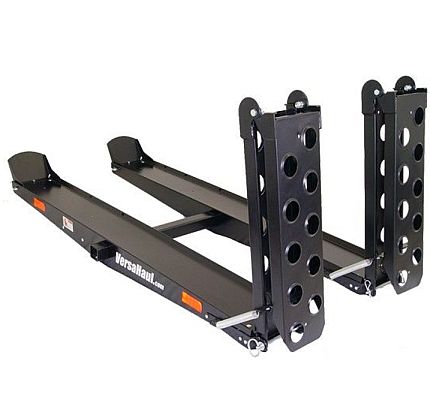

Porta scooters extra grande con rampas de carga dobles

Scooter Carrier
(Model No. VH-LG RO)

Starting at: $1,699.99 USD

Key Features

    • Se adapta a cualquier enganche de clase III o IV.
    • Dos rampas plegables centrales de 60"
    • Las rampas se pliegan cuando no se utilizan
Porta scooters extra grande con rampas de carga dobles
Secure Checkout 256-bit SSL encryption on every order
Free Shipping On all orders over $50 across the USA
Price Match Guarantee Found it cheaper? We'll match it
Easy Returns Hassle-free returns within 30 days

VersaHaul

Scooter Carrier
(Model No. VH-LG RO)

Starting at: $1,699.99 USD
$1,699.99
Los gastos de envío se calculan en la pantalla de pago.
This product usually ships in 2-7 business days.
Pay using HSA/FSA with flex Select Flex at checkout to pay for your HSA/FSA eligible items

Description
Specifications
Information

El portaequipajes VERSAHAUL modelo VH-LG-RO se monta en su receptor de enganche de dos pulgadas Clase III o IV. Tiene una capacidad de carga de 700 lb, por lo que le recomendamos verificar la capacidad de carga de la suspensión y la clasificación del enganche de su vehículo antes de cargar su equipo. Dos rampas plegables centrales con resorte facilitan la colocación del equipo en el portaequipajes y se pliegan cuando no se usa. El exclusivo sistema de bloqueo antivuelco evita que el portaequipajes se balancee mientras conduce.

Características:

  • El transportador VH-LG RO está diseñado para transportar de forma segura 700 libras.

  • Compatible con cualquier enganche de clase III o IV. La mayoría de los enganches de clase III soportan 227 kg (500 lb). La mayoría de los enganches de clase IV soportan 454 kg (1000 lb). Su peso de carga puede estar limitado por la capacidad de carga de su vehículo.

  • Acabado con pintura en polvo

  • La distancia entre los rieles y el parachoques es ajustable.

  • Rieles reversibles

Distancia mínima al suelo

Utilice la tabla a continuación para determinar la distancia mínima al suelo necesaria para cargar correctamente su scooter de movilidad en un portaequipajes VH-MS o VH-MS XL. Los resultados están en pulgadas.

Distancia entre ejes del scooter de movilidad (pulgadas)

Altura del enganche (pulgadas)
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
8
0,99
1.02
1.06
1.09
1.12
1.16
1.19
1.23
1.26
1.29
1.33
1.36
1.39
1.43
1.46
9
1.11
1.15
1.19
1.23
1.27
1.30
1.34
1.38
1.42
1.45
1.49
1.53
1.57
1.60
1.64
10
1.24
1.28
1.32
1.36
1.41
1.45
1.49
1.53
1.57
1.62
1.66
1.70
1.74
1.78
1.83
11
1.36
1.41
1.45
1,50
1.55
1.59
1.64
1.68
1.73
1.78
1.82
1.87
1.92
1.96
2.01
12
1.48
1.54
1.59
1.64
1.69
1.74
1,79
1.84
1.89
1.94
1,99
2.04
2.09
2.14
2.19
13
1.61
1.66
1.72
1.77
1.83
1.88
1.94
1,99
2.05
2.10
2.16
2.21
2.27
2.32
2.38
14
1.73
1,79
1.85
1.91
1.97
2.03
2.09
2.15
2.21
2.27
2.32
2.38
2.44
2.50
2.56
15
1.86
1.92
1.98
2.05
2.11
2.17
2.24
2.30
2.37
2.43
2.49
2.56
2.62
2.68
2,75
16
1.98
2.05
2.12
2.19
2.25
2.32
2.39
2.46
2.53
2.59
2.66
2.73
2.80
2.86
2.93
17
2.11
2.18
2.25
2.32
2.40
2.47
2.54
2.61
2.69
2.76
2.83
2.90
2.98
3.05
3.12
18
2.23
2.31
2.39
2.46
2.54
2.62
2.69
2.77
2.85
2.92
3.00
3.08
3.15
3.23
3.13
19
2.36
2.44
2.52
2.60
2.68
2.77
2.85
2.93
3.01
3.09
3.17
3.25
3.33
3.42
3.50
20
2.49
2.57
2.66
2.74
2.83
2.92
3.00
3.09
3.17
3.26
3.34
3.43
3.52
3.60
3.69
21
2.61
2.70
2.80
2.89
2.98
3.07
3.16
3.25
3.34
3.43
3.52
3.61
3.70
3.79
3.88
22
2.74
2.84
2.93
3.03
3.12
3.22
3.31
3.41
3.50
3.60
3.69
3.79
3.88
3.98
4.07
23
2.87
2.97
3.07
3.17
3.27
3.37
3.47
3.57
3.67
3.77
3.87
3.97
4.07
4.17
4.27
24
3.00
3.11
3.21
3.32
3.42
3.52
3.63
3.73
3.84
3.94
4.05
4.15
4.26
4.36
4.46

Qué incluye:

  • Soporte de bloqueo antivuelco

  • 2 topes de rueda

  • 2 rieles portadores

Presupuesto:

  • Número de modelo: VH-LG

  • Descripción: Portaequipaje para césped y jardín

  • Peso aproximado del envío: 118 libras .

  • Unidad de capacidad de carga: 700 libras.

  • Longitud de los rieles portadores: 71,5 pulg.

  • Ancho de los rieles portadores: 9,25 pulg.

Qué incluye:

  • Soporte de bloqueo antivuelco

  • 2 topes de rueda

  • 2 rieles portadores

Presupuesto:

  • Número de modelo: VH-LG

  • Descripción: Portaequipaje para césped y jardín

  • Peso aproximado del envío: 118 libras .

  • Unidad de capacidad de carga: 700 libras.

  • Longitud de los rieles portadores: 71,5 pulg.

  • Ancho de los rieles portadores: 9,25 pulg.
