VersaHaul

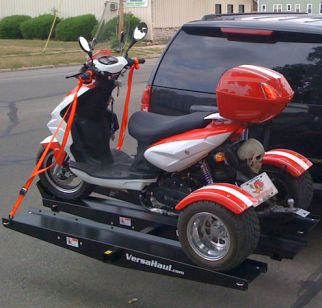

Portatriciclos con rampa

Scooter Carrier
(Model No. VH-TRICCO)

Starting at: $1,849.99 USD

Key Features

    • Tubo principal de 50"
    • Rieles reversibles
    • Incluye soporte de bloqueo antivuelco
    • Hecho en EE.UU.
Portatriciclos con rampa
Secure Checkout 256-bit SSL encryption on every order
Free Shipping On all orders over $50 across the USA
Price Match Guarantee Found it cheaper? We'll match it
Easy Returns Hassle-free returns within 30 days

VersaHaul

Scooter Carrier
(Model No. VH-TRICCO)

Starting at: $1,849.99 USD
$1,849.99
Los gastos de envío se calculan en la pantalla de pago.
This product usually ships in 2-7 business days.
Pay using HSA/FSA with flex Select Flex at checkout to pay for your HSA/FSA eligible items

Description
Specifications
Information

El VH-TRIKE está diseñado para transportar de forma segura un total de 600 libras, pero está limitado a solo 500 en el riel VH-55.

Características:

  • Se adapta a cualquier enganche de clase III o IV.

  • Acabado con pintura en polvo

  • Se guarda fácilmente

  • Empacado para envío por UPS

  • Rieles reversibles

Qué incluye:

  • Soporte de bloqueo antivuelco

  • Tubo principal de 50 pulgadas

  • 1 tope de rueda extendido

  • 8 bucles de amarre

  • 3 rampas

  • 2 reflectores

  • Manual de instrucciones

  • Instrucciones del soporte de bloqueo inverso

Enganche:

La mayoría de los enganches de Clase III soportan 227 kg (500 lb). La mayoría de los enganches de Clase IV soportan 454 kg (1000 lb). Enganche bajo: El tubo principal del VersaHaul sobresale del enganche al mismo nivel. Los enganches bajos no funcionarán correctamente.

Los enganches empotrados acortarán la longitud del tubo portador.

Vehículo:

Su peso de transporte puede estar limitado por la capacidad de carga de su vehículo y su suspensión. Consulte la información específica de su vehículo.

Distancia mínima al suelo

Utilice la tabla a continuación para determinar la distancia mínima al suelo necesaria para cargar correctamente su scooter de movilidad en un portaequipajes VH-MS o VH-MS XL. Los resultados están en pulgadas.

Distancia entre ejes del scooter de movilidad (pulgadas)

Altura del enganche (pulgadas)
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
8
0,99
1.02
1.06
1.09
1.12
1.16
1.19
1.23
1.26
1.29
1.33
1.36
1.39
1.43
1.46
9
1.11
1.15
1.19
1.23
1.27
1.30
1.34
1.38
1.42
1.45
1.49
1.53
1.57
1.60
1.64
10
1.24
1.28
1.32
1.36
1.41
1.45
1.49
1.53
1.57
1.62
1.66
1.70
1.74
1.78
1.83
11
1.36
1.41
1.45
1,50
1.55
1.59
1.64
1.68
1.73
1.78
1.82
1.87
1.92
1.96
2.01
12
1.48
1.54
1.59
1.64
1.69
1.74
1,79
1.84
1.89
1.94
1,99
2.04
2.09
2.14
2.19
13
1.61
1.66
1.72
1.77
1.83
1.88
1.94
1,99
2.05
2.10
2.16
2.21
2.27
2.32
2.38
14
1.73
1,79
1.85
1.91
1.97
2.03
2.09
2.15
2.21
2.27
2.32
2.38
2.44
2.50
2.56
15
1.86
1.92
1.98
2.05
2.11
2.17
2.24
2.30
2.37
2.43
2.49
2.56
2.62
2.68
2,75
16
1.98
2.05
2.12
2.19
2.25
2.32
2.39
2.46
2.53
2.59
2.66
2.73
2.80
2.86
2.93
17
2.11
2.18
2.25
2.32
2.40
2.47
2.54
2.61
2.69
2.76
2.83
2.90
2.98
3.05
3.12
18
2.23
2.31
2.39
2.46
2.54
2.62
2.69
2.77
2.85
2.92
3.00
3.08
3.15
3.23
3.13
19
2.36
2.44
2.52
2.60
2.68
2.77
2.85
2.93
3.01
3.09
3.17
3.25
3.33
3.42
3.50
20
2.49
2.57
2.66
2.74
2.83
2.92
3.00
3.09
3.17
3.26
3.34
3.43
3.52
3.60
3.69
21
2.61
2.70
2.80
2.89
2.98
3.07
3.16
3.25
3.34
3.43
3.52
3.61
3.70
3.79
3.88
22
2.74
2.84
2.93
3.03
3.12
3.22
3.31
3.41
3.50
3.60
3.69
3.79
3.88
3.98
4.07
23
2.87
2.97
3.07
3.17
3.27
3.37
3.47
3.57
3.67
3.77
3.87
3.97
4.07
4.17
4.27
24
3.00
3.11
3.21
3.32
3.42
3.52
3.63
3.73
3.84
3.94
4.05
4.15
4.26
4.36
4.46

Número de modelo: VH-TRIKE

Descripción: Portabicicletas para triciclo con rampa

Peso aproximado del envío: 205 libras.

Carga máxima: 600 libras.

Longitud de la rampa: 60 pulgadas.

Ancho de la rampa VH-55 (central): 5,5 pulg.

Ancho de las rampas VH-90 (exteriores): 9,25 pulgadas.

Installation Instructions
Brochure

Limited Warranty

LIMITED WARRANTY The Limited Warranty on the VersaHaul Carrier. BNK, INC warrants the carrier and related components. This warranty applies to any part found to be defective due to material and/or workmanship when inspected at the factory of BNK, Inc., Winamac, IN. BNK Inc. will, at its option, repair or replace defective parts to the original purchaser at no charge other than transportation. Sale receipt as proof of date of purchase is required, which will be returned. BNK, Inc. assumes no liabilty for labor charges made in performance of this warranty. The warranty periods are as follows from date of purchase:
CARRIER FOR 1 YEAR, VOID IF: frame is broken or bent due to abuse. example: (underside scraped abusively) ALL WARRANTIES ARE VOID IF: the carrier has been rented, used under abnormal conditions, or subjected to abuse, misuse, neglect, or improper maintenance. All warranties should be handled at point of purchase unless other arrangements are made. BNK, Inc. is not liable for any damage claim or liability cliam, personal or otherwise resulting from operation of this carrier in any way.
All transportation charges for items returned for warranty evaluation and/or replacement are to be borne by the customer. For one (1) year from the date of purchase, BNK, Inc. will repair or replace for the original purchaser, without charge, any part or parts are manufactured by BNK, Inc. and found, upon examination at our factory in Winamac, to be defective in materials and/or workmanship. All transportation charges on parts submitted for replacement under this warranty must be borne by the purchaser. This warranty does not apply to parts not manufactured by BNK, Inc.
Their manufacturer may warrant these items. This warranty does not apply to any part which has been damaged by accident, alteration, abuse, improper adjustment, normal wear, or any other cause beyond our control. Use of replacement parts other than genuine BNK, Inc. parts may impair the safety of your machine and void this warranty. IMPORTANT THIS WARRANTY IS VOID UNLESS THE PRODUCT REGISTRATION CARD IS FILLED OUT COMPLETELY AND RETURNED TO THE FACTORY AT WINAMAC, IN. WITHIN TEN (10) DAYS OF PURCHASE. OUR WARRANTY COVERS OUR PRODUCT FOR ONE YEAR. WE ARE NOT ABLE TO EXCHANGE USED VERSAHAUL CARRIERS FOR REFUNDS OR NEW CARRIERS.
