Harmar - AL560XL - Power Wheelchair Vehicle Lift
(Model No. HAR-AL560XL)
Starting at: $2,985.00 USD
Key Features
- Automatic powerchair securement: The padded hold-down arm secures a compatible powerchair without modifying the chair, reducing the separate tie-down steps required during everyday loading.
- Powered lift and stowage: The AL560XL powers both lifting and empty-platform folding, giving larger compatible powerchairs an exterior transport option without manually raising the platform.
Couldn't load pickup availability

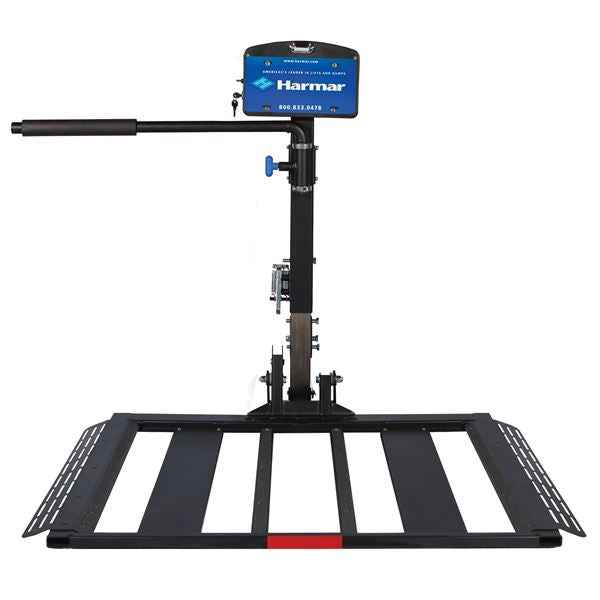

Harmar AL560XL Automatic Power Wheelchair Lift
The AL560XL is a fully powered exterior vehicle lift designed for larger power wheelchairs. It raises and lowers the chair on an adjustable platform rather than requiring a manual lift into the vehicle. Harmar specifies securement with a padded hold-down arm and wheel cradles, so the chair can be transported without modifications to the wheelchair itself. The lift is intended for a compatible powerchair and vehicle, not every chair that fits within the platform dimensions.
Capacity and Platform Fit
The listed lifting capacity is 350 lb. The adjustable platform measures 30.75 x 38.5 inches; compare the chair's wheelbase, overall width and length, ground clearance and securement points with the actual platform setup. Check that the hold-down arm and wheel cradles reach the chair correctly without contacting joystick controls, seating or other components. Do not use the earlier 400 lb claim; verify the powered lift's rating against the exact model documentation.
Hitch, Vehicle and Installation
The listing specifies a Class III-or-greater hitch adapter. Confirm the receiver type and rating, vehicle tongue-weight limit, ground clearance, rear-door clearance and the added load at the hitch with a Harmar dealer. Vehicle wiring is required to power the lift; the product offers harness options, and the chosen connection must match the vehicle and installation. Professional installation is available as an option.
Daily Loading and Vehicle Access
A hitch-mounted lift keeps the powerchair outside the cabin, but adds length and weight behind the vehicle. Consider the space needed to approach, transfer, operate the lift and store it when not carrying the chair. A swing-away option is available to help clear a rear door; confirm it is compatible with the chosen lift and vehicle and whether it is included or separately selected.
Before Ordering
Provide the wheelchair make and model, dimensions and loaded weight, together with the vehicle year, make, model and hitch details. Confirm platform fit, the 350 lb lift rating, adapter class, wiring, installation and any swing-away option as a complete system before purchase.
| Hitch Height: | 5" to 19" |
| Lift Operation: | Power |
| Power Source: |
Battery Hardwired |
| Works With Hitch Size: |
Class II Hitch Class III Hitch |
| Professional Install Available: | No |
| Service Contract Available: | No |
| Operation: | Power |
| Lifting Capacity: | 350 lbs. |
| Recommended For: | Full-Size Power Wheelchairs |
| Platform Size - Length: | 38.5 in. |
| Platform Size - Width: | 32.5 in. |
| Installed Product Weight: | 115 lbs. |
| Type of Lift: | Outside Lift |
| Warranty: | 3 Year Limited Warranty |
| Warranty - Transferable Warranty: | Yes |
Ownership Information
Warranty Information
Components: 3 Years
