Merits Vision Sport S326E0M Mid-Wheel Drive Power Wheelchair with Power Elevating Seat


(Model No. S326E0M)

Starting at: $3,723.00 USD

Key Features

    • Power-elevating seat: The seat height adjusts from 22 to 29.5 inches using the powered elevating system.
    • Mid-wheel suspension: The mid-wheel-drive base combines independent suspension with solid tires and an 18-inch seat.
CONFIGURE
Secure Checkout 256-bit SSL encryption on every order
Free Shipping On all orders over $50 across the USA
Price Match Guarantee Found it cheaper? We'll match it
Easy Returns Hassle-free returns within 30 days
Weight Capacity 300 lbs.
Battery Range Up to 18 miles
Turning Radius 20"
Top Speed Up to 4 mph

Merits


(Model No. S326E0M)

Starting at: $3,723.00 USD
  • Red
  • Blue
$3,723.00
Shipping calculated at checkout.
Lead Time: This product ships in 2-7 business days.

Description
Specifications
Information
Reviews

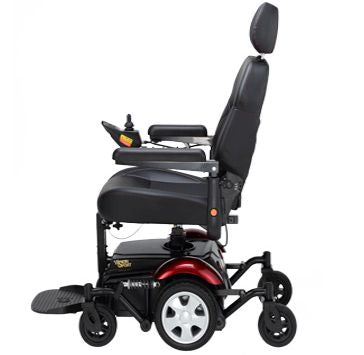

Merits Vision Sport S326E0M Power Elevating Power Wheelchair

The Vision Sport S326E0M pairs Merits' mid-wheel-drive platform with a power-elevating seat. It is intended for everyday indoor and outdoor mobility, with independent suspension, solid tires and a compact turning layout for maneuvering in tighter spaces. Merits rates the chair for users up to 300 lb and lists a range of up to 18 miles per charge; actual range varies with the rider, route, terrain, battery condition and use.

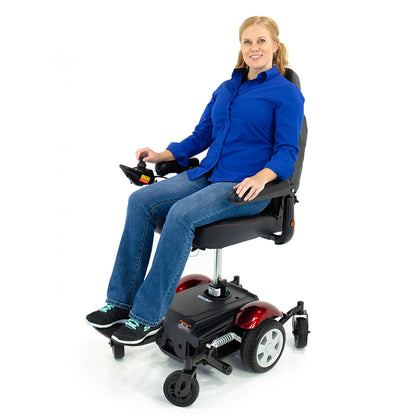

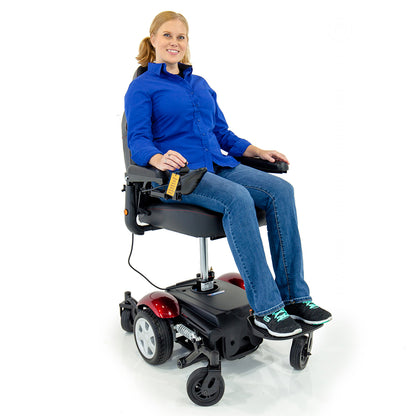

Understand the power-elevating seat

The powered seat changes the rider's seated position without requiring a manual lift. Top Mobility notes that the chair operates at half speed while the seat is elevated, so movement and transfers should be planned with that reduced speed in mind. The published listing contains a malformed seat-travel figure, so confirm the actual elevation range for the ordered configuration rather than relying on that number. Follow the operating instructions and use the seat lift only as directed.

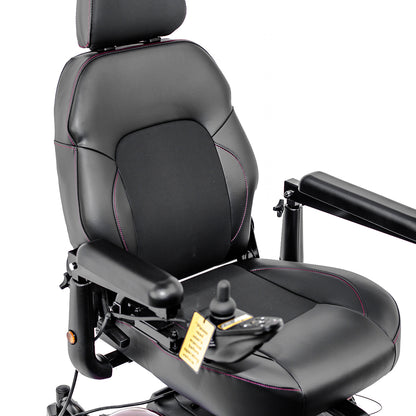

Ride, seating and controls

Merits describes the Vision Sport's independent suspension as absorbing up to 250 lb of force at the footplate without tipping, and its semi-reclining captain or pan seating as adjusting up to 135 degrees. This does not make the footplate a step or transfer surface; follow the manual's transfer guidance. The Top Mobility listing offers left- or right-side joystick placement, red or blue color choices, and optional elevating legrests or an armrest bag. Confirm that seat style, joystick side and options match the rider's needs before ordering.

Plan for the full configuration

A powerchair's fit depends on the rider's posture, seat dimensions, control reach and the spaces where it will be used. Review doorway and turning clearances, charging access and the route's surface transitions with a qualified mobility specialist. Check the owner's manual for charging, maintenance and safe operation, and confirm any transfer or positioning questions with the rider's care team. The 18-mile figure is a manufacturer maximum, not a guaranteed everyday distance.

Seat width 18'
Seat depth 18'
Seat height 22'-29.5'
Backrest height 20'
Footrest extension length '15.5'
Overall length 34'
Overall width 24'
Overall height 48'
Driving range 18
Maximum speed 5 mph
Motor

DC 24V , 160W (Rating )

/ 520W 6(Max)
Max Climbing Angle 6°
Turning Radius 50 cm / 20'
Ground Clearance 5 cm / 2'
Controller PG VR2 60A A1
Charger 4A off-board
Weight Capacity 136 kg / 300 lb
Total Weight 88.5 kg / 195 lb
Front wheel F/R 6”x 2” PU tire
Drive Wheel 10'(260 x 85) PU tire
Rear wheel F/R 6”x 2” PU tire

Ownership Information

Owners Manual
Brochure
Warranty Insert

Warranty Information

Lifetime Warranty: Power Chair Frame

One Year Limited Warranty: Electronic Controller - Drive Train Components

Six Month Limited Warranty: Plastic Parts, Rubber Parts, Batteries, Bearings (Excluding plastic shroud)
