Merits P322B0M VISION CF Front Wheel Drive Power Wheelchair


(Model No. P322B0M)

Starting at: $2,267.00 USD

Key Features

    • True front-wheel drive: The Vision CF places the powered wheels toward the front of its compact base, providing a distinct driving layout for navigating everyday indoor and accessible outdoor routes.
    • Foam-filled running tires: Foam-filled drive tires and casters do not require routine air-pressure checks, reducing one maintenance task while retaining a powered-chair format with adjustable seating.
CONFIGURE
Secure Checkout 256-bit SSL encryption on every order
Free Shipping On all orders over $50 across the USA
Price Match Guarantee Found it cheaper? We'll match it
Easy Returns Hassle-free returns within 30 days
Weight Capacity 300 lbs.
Battery Range Up to 18 mile
Turning Radius 17"
Top Speed Up to 4 mph

Merits


(Model No. P322B0M)

Starting at: $2,267.00 USD
$2,267.00
Shipping calculated at checkout.
Lead Time: This product ships in 2-7 business days.

Description
Specifications
Information

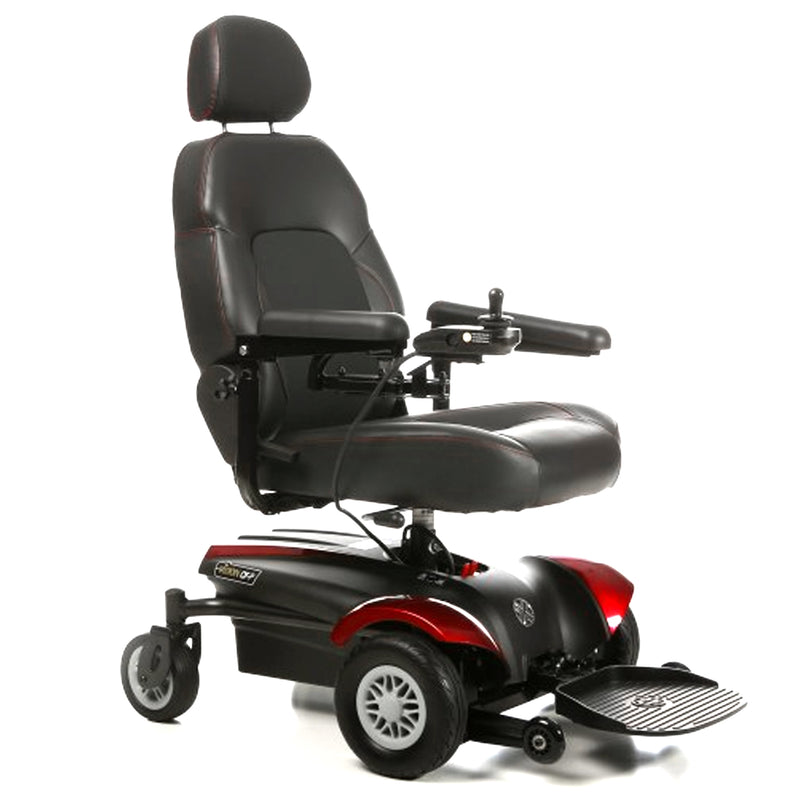

Merits P322B0M Vision CF Front-Wheel-Drive Power Wheelchair

The Vision CF P322B0M is a compact front-wheel-drive powerchair with a semi-reclining backrest, removable seat and back covers, and a Dynamic LiNX controller. Its front-drive layout places the powered wheels ahead of the seat. This can help the chair approach furniture and turn through indoor spaces differently from a mid-wheel model, but the drive position also affects how the chair tracks through turns and over floor transitions. It is important to assess the actual chair with the user's usual rooms and routes.

Drive Layout and Home Maneuvering

The product listing describes a 17 inch turning radius and compact frame. Front-wheel drive can be useful for navigating close to counters, tables and doorways, while the larger front drive wheels need room to pass around obstacles and clear transitions. Measure narrow doorways, bathroom approaches and turning areas, and consider thresholds, rugs and the route from room to room. A turning-radius figure does not by itself guarantee that the complete chair can pivot within a particular room.

Seating and Controls

The P322B0M is offered with captain or pan seating, and the joystick can be selected for the right or left side. The semi-reclining back and removable, replaceable seat and back covers add setup and maintenance choices. Optional elevating legrests and an armrest bag are listed separately. Confirm the selected seat, control side and accessories against the user's posture, reach, transfer routine and leg-support needs; do not assume an option is included in the base configuration.

Operating Limits and Charging

The retailer lists a 300 lb weight capacity, up to 18 miles of range, and a top speed of up to 4 mph for this P322B0M listing. Actual travel distance depends on user and cargo weight, terrain, temperature, battery condition, tire pressure and driving style. Plan charging around the intended routine and review the supplied charger and controller instructions. These figures describe listing specifications, not a promise of the same performance on every route.

Fit, Transport and Ordering

Before ordering, check the overall chair dimensions against the user's doorways and the vehicle's loading method. A powerchair of this type is not made compact by removing its covers; confirm whether the selected vehicle can accommodate the complete chair and how it will be loaded. Verify that the order is for P322B0M, then choose the seat style, joystick side and any optional legrests. Specifications from other P322 suffixes should not be substituted for this model.

Max Speed: 4 mph

Range: 18 miles

Turning Radius: 17"

Ground Clearance: 2.4'

Motor: DC 24V, 130W

Controller: Dynamic LiNX

Battery: 12/U1(34Ah) x 2pcs

Charger: 4A off-board

Gradient: 6°

Casters: 6' foam filled tires

Drive Wheels: 9' foam filled tires

Brakes: intelligent, regenerative, electromagnetic

Seat Width: 18'

Seat Depth: 16'

Seat Height: 20' - 22'

Backrest Height: 17'

Min. Footrest Extension: 16.5'

Max. Footrest Extension: 18.5'

Overall Length: 33'

Overall Height: 42'

Overall Width: 24'

Total Weight: 154 lbs.

Weight Capacity: 300 lbs.

Ownership Information:
Owners Manual
Brochure
Warranty Insert
Warranty Information:
  • Frame 5 year / Limited Lifetime
  • Electronics 1 year
  • Motor/Brakes 1 year
  • Batteries 1 year
