TRI LIFT

TRILIFT Platform-Free Mobility Carrier

Outside Vehicle Mobility Lift
(Model No. T1020LT, T1010 SB, T1010 PWC)

Starting at: $2,142.00 USD

Key Features

    • TriLift Platform-Free Mobility Carrier: TriLift transports a compatible scooter or power wheelchair outside a vehicle without a conventional platform deck.
    • Lift, Device Bracket and Hitch: The system is configured from a lift, a device-specific docking bracket and a suitable vehicle receiver.
Watch Product Video CONFIGURE
Secure Checkout 256-bit SSL encryption on every order
Free Shipping On all orders over $50 across the USA
Price Match Guarantee Found it cheaper? We'll match it
Easy Returns Hassle-free returns within 30 days

TRI LIFT

Outside Vehicle Mobility Lift
(Model No. T1020LT, T1010 SB, T1010 PWC)

Starting at: $2,142.00 USD
Watch Product Video
$2,142.00
Shipping calculated at checkout.
Product ships in 7-10 business days.

Description
Specifications
Information

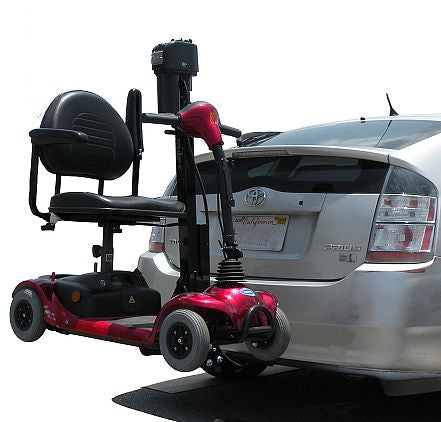

TriLift Platform-Free Mobility Carrier

TriLift transports a compatible scooter or power wheelchair outside a vehicle without a conventional platform deck. Its lift unit raises a triangular receiver, which engages a matching bracket mounted to the mobility device. The device must have the correct bracket installed and be positioned accurately for the docking connection to engage; this is a different loading routine from driving onto a platform and securing the device with straps.

Lift, Device Bracket and Hitch

The system is configured from a lift, a device-specific docking bracket and a suitable vehicle receiver. Lift models, bracket styles and hitch options vary, including choices for scooters, power wheelchairs and manual wheelchairs. These pieces are not interchangeable by appearance alone. Confirm that the exact device can accept the correct bracket and that the selected lift and receiver match the vehicle before ordering.

Capacity and Vehicle Limits

The listing publishes loading capacities from 160 to 450 lb across different TriLift models. Capacity belongs to the selected lift configuration, not to the family as a whole; compare the mobility device's complete loaded weight with that model's rating. Also check receiver and vehicle limits, including the added load and leverage at the hitch. The product page calls for a compatibility check with both the vehicle and mobility unit.

Loading and Storage

The lift lowers its docking point near the ground so the device-mounted bracket can be aligned and engaged; the vehicle powers the lift mechanism. The platform-free design avoids a deck to store, but successful use depends on correct bracket placement, alignment and clearance behind the vehicle. Confirm the operating space, device approach and access to the lift controls at the intended parking location.

Before Ordering

Provide the vehicle year/make/model, hitch details and exact scooter or wheelchair model when checking compatibility. Confirm the lift model, docking bracket, receiver option and applicable load limits as one complete system. Do not select from the 160-450 lb family range without verifying the rating for the exact configuration.

Lift Height: 45'-60' 42'-55'

Lift Weight: 60 lbs 42 lbs

Loading Capacity: Up to 500 lbs Up to 145 lbs

Back Space: 11' 10'

Cycle Load Time: 55 Seconds 45 Seconds

Docking Bracket Size: 9.5' 7'

Docking Bracket Weight: 12-22 lbs 8-15 lbs

Ownership Information:
Installation Manual
Warranty Insert
Wiring Instructions
Wireless Remote Option
Warranty Information:

Please see warranty insert.

Shipping / Returns Information:
This unit is delivered via common LTL carrier on a pallet. This will be left curbside for standard delivery. Some carriers schedule delivery appointments.

The following conditions apply:
  • This item has a 25% Restocking Fee.
  • You are responsible for the cost of return shipping.
  • The product must be new and unused and in the original packaging.
  • All accessories and items that were included in the box must be returned.
  • Items canceled after the product has already shipped will be considered a return.
  • Delivery and service fees are not refundable.
  • Custom-made by the manufacturer to suit your specific needs are non-returnable.
  • An RA (Return Authorization) from Top Mobility must be requested within 15 days of delivery.
  • The item must be shipped back to the address noted on the RA within 15 days.
  • Once approved, your refund, minus any restocking and freight fees, will be issued to your original form of payment.

    • If you have questions about this item please call a Top Mobility Customer Service Expert at 1-888-364-3813.
