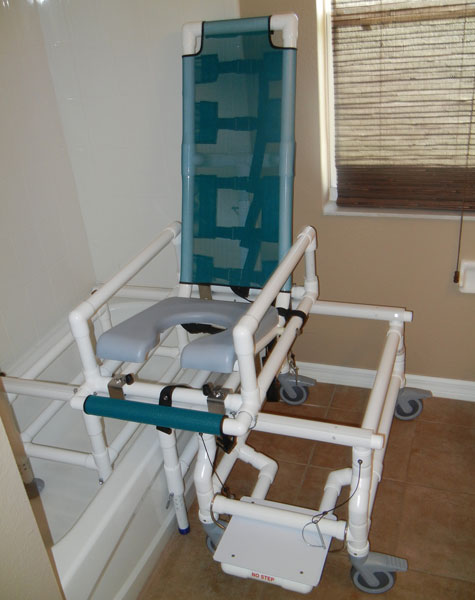

Tilt-in-Space Tub Slider Bathing System
Sku: TILT-TUBSLIDEStarting at: $2,195.00 USD
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
Transfer systems eliminate the need for this and allow the caregivers/parents to shower individuals without them ever leaving the seat. In just a few simple steps you can be giving your loved one a shower without straining your back. Set-up takes only minutes. Medical conditions for which these products can be used: Spina Bifida (latex free), Muscular Dystrophy, Cerebral Palsy, stroke, heart conditions, and many more. How it works: It is a 2 part system. You have the rolling chair and the stationary tub unit. The rolling bath chair/shower chair interlocks with the tub frame, which is stationary in the bath tub. When detached from the tub frame, the rolling chair can be positioned over a standard toilet commode and then without even one transfer from the seat, can be placed next to the bathtub, interlocked to the tub frame, and slid right into the bathtub. After the transfer is made into the tub, the rolling chair can then be removed so the caregiver can help with bathing. When bathing is complete, simply reposition the chair next to the tub, interlock it with the support frame, and slide the bath chair back onto the rolling chair. Once locked in place, the rolling shower chair can then be rolled away from the bathroom. These products are all made out of the highest grade of medial PVC and this allows us to custom manufacture your system to any way you wish.
Tilt-in-Space Bathing System |
Standard |
Narrow |
Wide |
Extra Wide |
Between Arms |
17.5' |
16.5' |
20' |
22' |
Backrest Height-Customer Specify |
24' - 36' |
24' - 36' |
24' - 36' |
24' - 36' |
Over Width |
21.5' |
20.5' |
23' |
25' |
Overall Length Seat Upright |
32' |
32' |
32' |
32' |
Overall Length Seat at Full Tilt (w/36' backrest) |
42' |
42' |
42' |
42' |
Seat Depth |
18' |
18' |
18' |
18' |
Seat Depth from Seat to Front of Backrest |
19.5' |
19.5' |
19.5' |
19.5' |
Standard Seat to Floor |
24' |
24' |
24' |
24' |
Rolling Chassis Overall Length |
32' |
32' |
32' |
32' |
Backrest Angle Upright |
15 degrees |
15 degrees |
15 degrees |
15 degrees |
Backrest Angle at Full Tilt |
35 degrees |
35 degrees |
35 degrees |
35 degrees |
Commode Clearance |
18.75' |
18.75' |
18.75' |
18.75' |
Commode Clearance |
200 lbs |
200 lbs |
300 lbs |
300 lbs |
Backrest Angle to Seat |
110 degrees |
110 degrees |
110 degrees |
110 degrees |
Overview
Overview
No information available at this time.
Info
Info
No additional information available at this time.
Documents
Documents
No product documentation available at this time.
Specifications
Specifications
Tilt-in-Space Bathing System |
Standard |
Narrow |
Wide |
Extra Wide |
Between Arms |
17.5' |
16.5' |
20' |
22' |
Backrest Height-Customer Specify |
24' - 36' |
24' - 36' |
24' - 36' |
24' - 36' |
Over Width |
21.5' |
20.5' |
23' |
25' |
Overall Length Seat Upright |
32' |
32' |
32' |
32' |
Overall Length Seat at Full Tilt (w/36' backrest) |
42' |
42' |
42' |
42' |
Seat Depth |
18' |
18' |
18' |
18' |
Seat Depth from Seat to Front of Backrest |
19.5' |
19.5' |
19.5' |
19.5' |
Standard Seat to Floor |
24' |
24' |
24' |
24' |
Rolling Chassis Overall Length |
32' |
32' |
32' |
32' |
Backrest Angle Upright |
15 degrees |
15 degrees |
15 degrees |
15 degrees |
Backrest Angle at Full Tilt |
35 degrees |
35 degrees |
35 degrees |
35 degrees |
Commode Clearance |
18.75' |
18.75' |
18.75' |
18.75' |
Commode Clearance |
200 lbs |
200 lbs |
300 lbs |
300 lbs |
Backrest Angle to Seat |
110 degrees |
110 degrees |
110 degrees |
110 degrees |
Warranty
Warranty
No warranty documentation available at this time.
Shipping / Returns
Shipping / Returns
No shipping/returns information available at this time.





$2,195.00 USD
