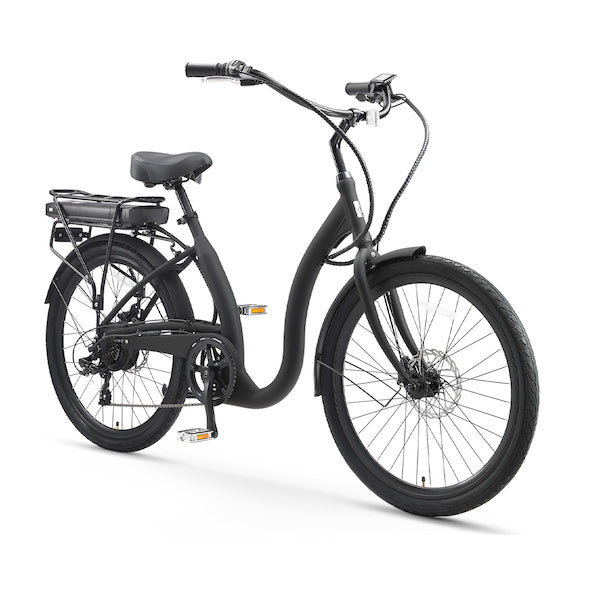

sixthreezero Simple Step-Thru Men's 7-Speed 500W Electric Bicycle

sixthreezero Simple Step-Thru Men's 7-Speed 500W Electric Bicycle Features:

• Lowest step-thru frame on the market
• 300 lbs weight capacity
• 20 mph top speed for both full electric and with pedal assist
• 500 watt-hour battery that will take you 20 miles using full electric and 20 - 40 miles on pedal assist mode
• Smart app connectivity to track your rides
• Assembly Required
• Matte Black color

Owner's Manual

Weight Range	Up to 300 lbs
Height Range	5' - 6'4'
Arm Length	Short, Average or Long
Leg Length	Short, Average or Long
Ride Frequency	Daily / Once a Week
Primary Use	Recreation / Commuting
Riding Surface	Paved Surfaces / Trails
Distance	25 - 40 Miles
Riding Pace	Moderate / Aggressive
Designed For	Comfort
Seat Firmness	Soft
Uphill Frequency	Often
Body Pain	Good for riders with knee and/or back pain
Frame	Material: Aluminum Size: 18' Style: Step Thru Dropout: 3/8' Threading Dropout Style: Forged Semi-Vertical Droput Mounts Included: Rear Rack Mounts, Rear Fender Mounts
Headset (Handlebar Stem)	Diameter: 25.4mm x 180mm Material: Alloy
Tires	Size: 26' x 1.95'
Chain	Size: 1/2' x 3/32' x 134L
Bottom Bracket Set	Model: Steel Size: 68mm x 118mm
Pedal Size (Thread)	9/16'
Rear Cassette	Brand: Shimano Tourney Teeth Count: 14, 16, 18, 20, 22, 24, and 28
Battery	500W, 48V 10.4Ah Lithium-Ion Battery with Charger
Controls	Throttle control and pedal assist modes
Fork	Fork Material: Steel Fork Style: Standard Rigid Fork Mounts Included: Front Fender Mount
Rims	Rim Type: Double Wall Rim Material: Alloy Size: 26*1.75 14G*36H
Rear Derailleur	7-Speed, Direct Type
Crankset (Chainwheel)	Crank Material: Steel Crank Arm Length: 170mm or 6.7' Teeth Count: 44'
Brakes	Front and Rear Disc Brake
Shift Levers	Shimano Index Revo Shifter 7 Speed
Motor	500 Watt Rear Hub Motor
Display	LCD Display with Speedometer, Power Meter, and Battery Charge

Please note, the Forever Warranty is not available to Electric Bicycles. The standard Electric Bicycle warranty is the only warranty coverage that is available and included with the purchase of any sixthreezero electric bicycle.

• Battery Replacement Guarantee
• Hub Motor Replacement Guarantee
• All other components on Electric Bicycles
• Lifetime coverage on bicycle frame

THIS WARRANTY DOES NOT COVER

• Normal wear and tear, which includes Tires and Tubes
• Improper assembly
• Installation of components, parts, or accessories not originally intended for or compatible with the bicycle as sold
• Damage or failure due to accident, misuse, abuse, or neglect
• Labor charges for part replacement or changeover
• Bikes used for commercial activities, including those in rental, demo, or security fleets
• Rust not covered by warranty
• Assembly reimbursement

This warranty is void in its entirety by any modification of the frame, fork, or components. This warranty is expressly limited to the repair or replacement of a defective item, and said repair or replacement is the sole remedy of the warranty. This warranty extends from the date of the original purchase, is offered only to the original retail purchaser, and is not transferable. sixthreezero is not responsible for incidental or consequential damages. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. Any claim against this warranty must be made through an authorized dealer or distributor. Product registration and proof of purchase is required before a warranty claim may be processed. Claims made outside the country of purchase may be subject to fees and additional restrictions. Warranty duration and detail may differ by frame type and/or country. This warranty gives you specific legal rights, and those rights may vary from place to place. This warranty does not affect your statutory rights. The English version of the warranty shall prevail.

Warranty covers only the first owner/purchaser, it is non-transferable and applies only to sixthreezero bicycles purchased through an authorized dealer

OTHER MODIFICATIONS THAT WILL VOID YOUR WARRANTY

• Adding / Changing electric motor, LCD screen, controller, or battery
• Welding additional parts to the frame
• Removing and changing the original chain, crank, and gears
• Changing primary gear and braking components, such as shifters, derailleurs, brake arms, and pedal crank
• Any physical changes to the bicycle fork or frame that could compromise the factory welding
