Liftup Raizer II Portable Electronic Lifting Device with remote

Patient Lifts
(Model No. Raizer II)

Starting at: $5,399.00 USD

Key Features

    • Powered floor recovery with an assistant: The Raizer II is described as a portable aid for one assistant to raise a person from the floor toward a seated or nearly standing position; its listed maximum capacity is 330.7 lb.
    • Remote control and timed operation: A remote or side control operates the lift, and the listing includes a 5Ah LiFePO4 battery, safety belt and charger; follow the stated one-minute-on/five-minute-off duty cycle.
Watch Product Video CONFIGURE
Secure Checkout 256-bit SSL encryption on every order
Free Shipping On all orders over $50 across the USA
Price Match Guarantee Found it cheaper? We'll match it
Easy Returns Hassle-free returns within 30 days

Liftup

Patient Lifts
(Model No. Raizer II)

Starting at: $5,399.00 USD
Watch Product Video
$5,399.00
Shipping calculated at checkout.
Product ships in 10-15 business days.

Description
Specifications
Information

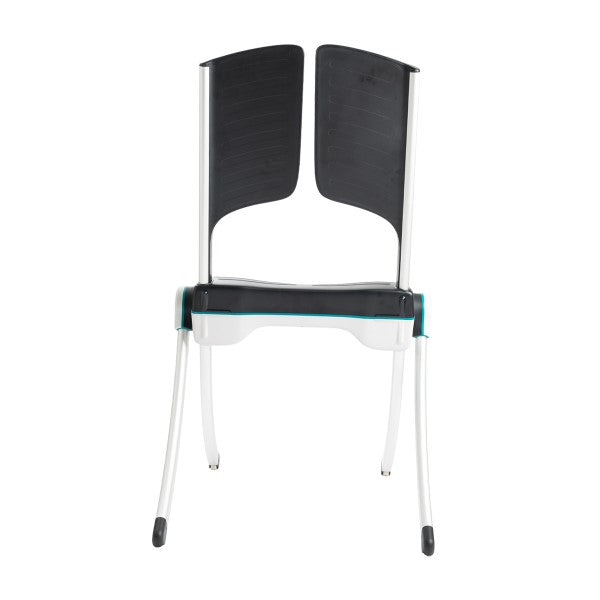

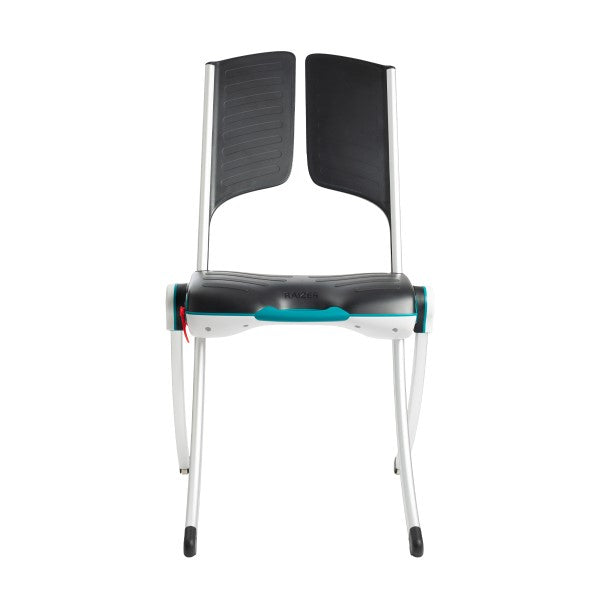

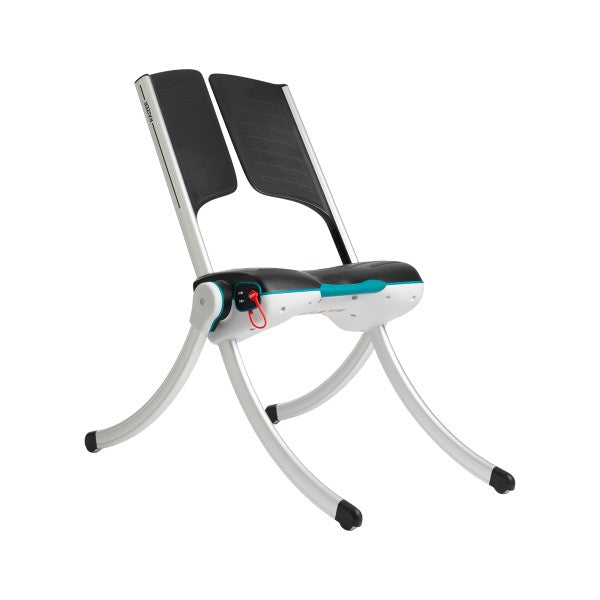

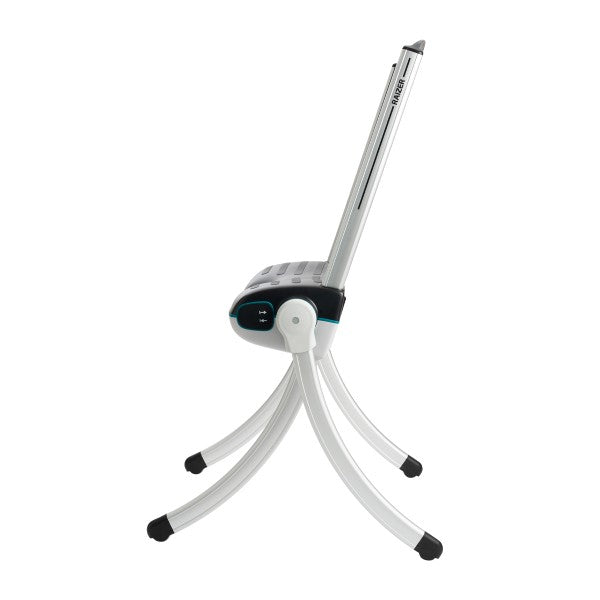

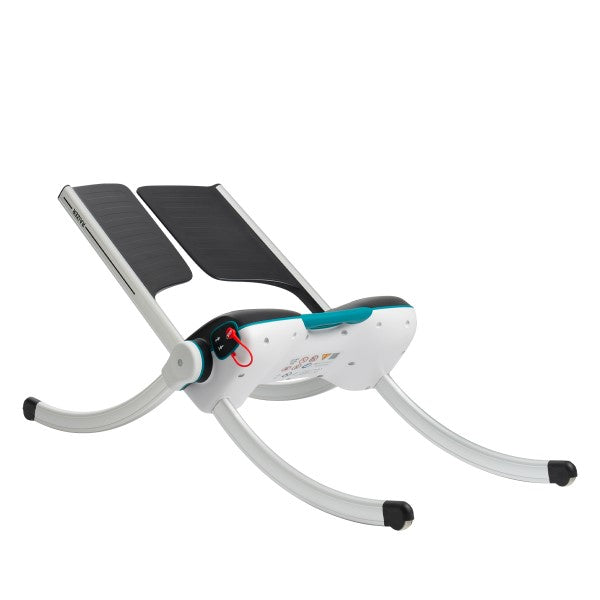

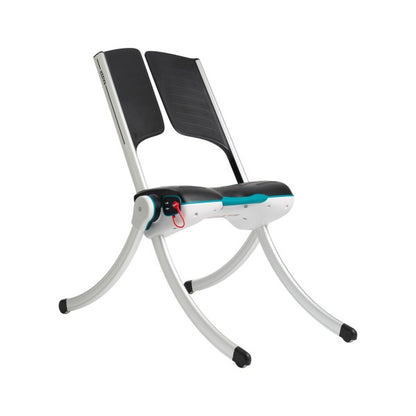

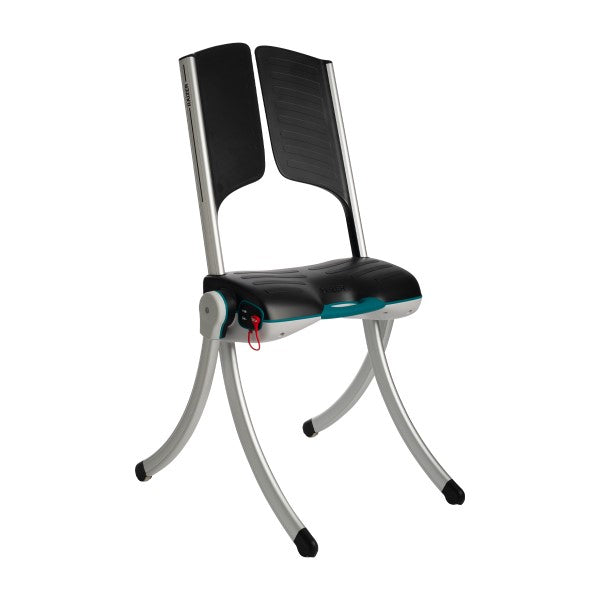

Liftup Raizer II Mobile Lifting Chair

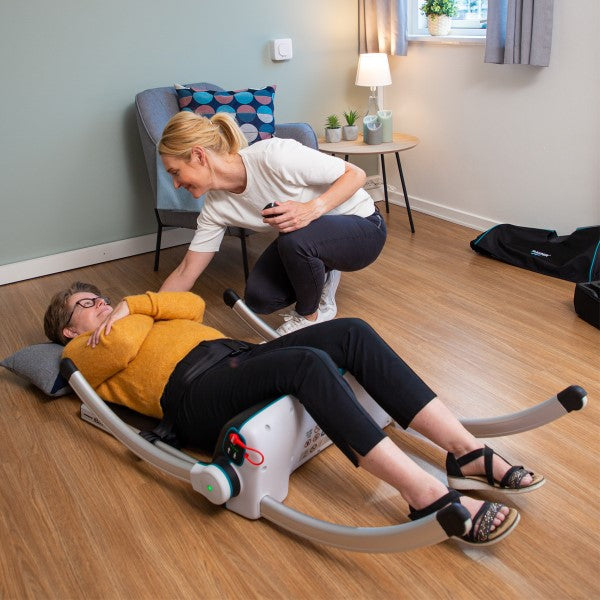

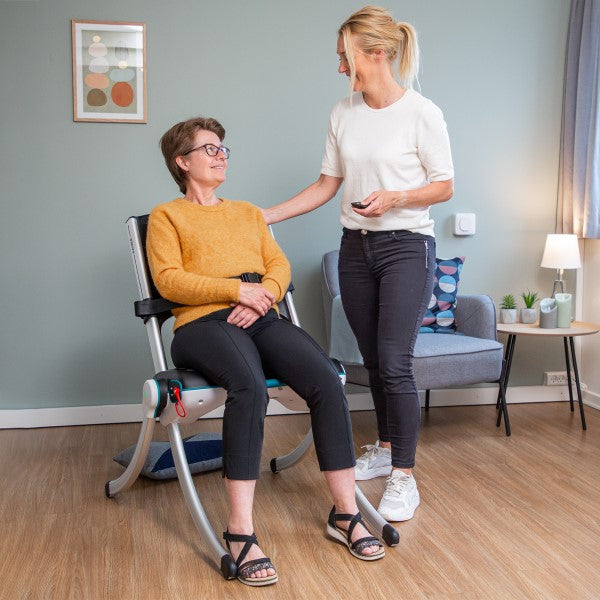

The Raizer II is a portable powered aid designed to help one assistant raise a person from the floor to a seated or nearly standing position. Its maximum user capacity is 330.7 lb. Top Mobility lists the heaviest component at 20.3 lb; confirm the user's suitability and transfer plan with a qualified care professional before use.

Controls and included equipment

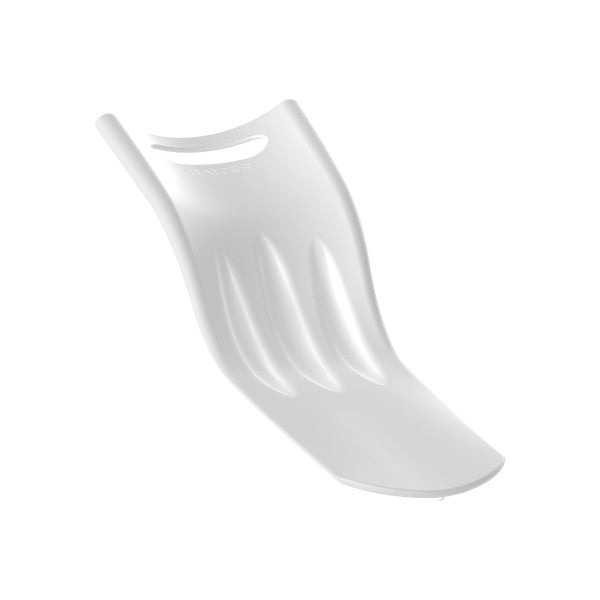

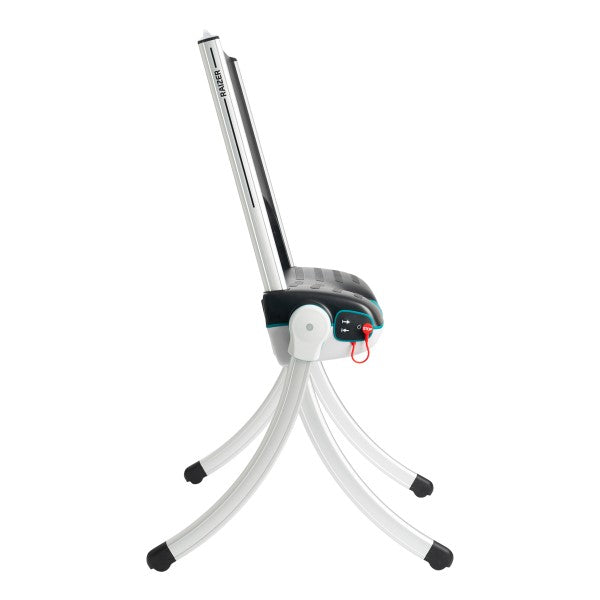

The chair operates from a remote or its side control panel and includes a safety belt, seat cover, carry case, charger and USB charging cable. It has a 5 Ah LiFePO₄ battery; the listed charge time is up to six hours. The specifications estimate up to 40 lifts at maximum capacity or about 80 at average load per charge.

Operate within the duty cycle

The listed duty cycle is one minute of operation followed by five minutes off. Follow the owner's manual for assembly, belt placement, positioning, remote use and charging. Confirm the person and environment are suitable for a standing transfer aid, and use the device only as part of the prescribed care plan.

Check the device, belt and controls before each use. Do not exceed the 330.7 lb capacity or operate outside the stated duty cycle.

Battery LiFePo4, 5AH
Number of lifts on full charge

40 with max. load

Approx. 80 with average load
Duty Cycle 1 min/5min
Charging time Up to 6 hours with the provided charger
Charging of depleted battery 10-15 min. = 1 lift
Dimensions (LxWxH)

Standing - 25.8x27.1x48.2 inches

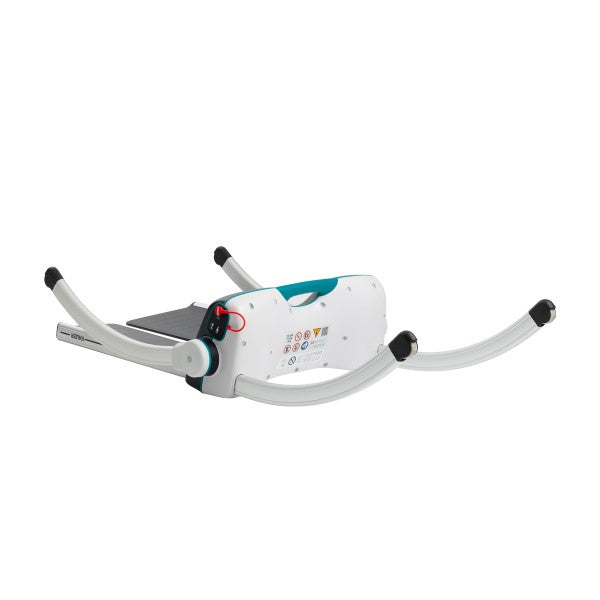

Lying - 52x27.1x10.9 inches
Total Weight 31.1 lbs.
Motor unit/seat weight 20.3 lbs
Backrest and legs 10.8 lbs.
Maximum lifting capacity 330.7 lbs.
Lifting time 20-30 sec.
Noise level <70 dB A
Dust and water

IP 52 (protected from limited dust ingress;

protected from water spray)
Operating forces of controls: <3N (300g)
Working temperature +5°C to +40°C/41°F to 104°F
Storage temperature -25°C to +70°C/13°F to 158°F
Materials

Motor unit/seat: PolyCarbonate+ABS

Backrests: PolyCarbonate+ABS

Legs: Aluminum
Ownership Information:
Owner's Manual
Brochure
Warranty Information:

1-Year Limited Warranty

See Owner's Manual for additional warranty information
