Watch Product Video
  • Cardinal Red
  • Iceburg Blue
  • Sugarplum
  • Robins Egg Blue
  • Black

Pride Mobility

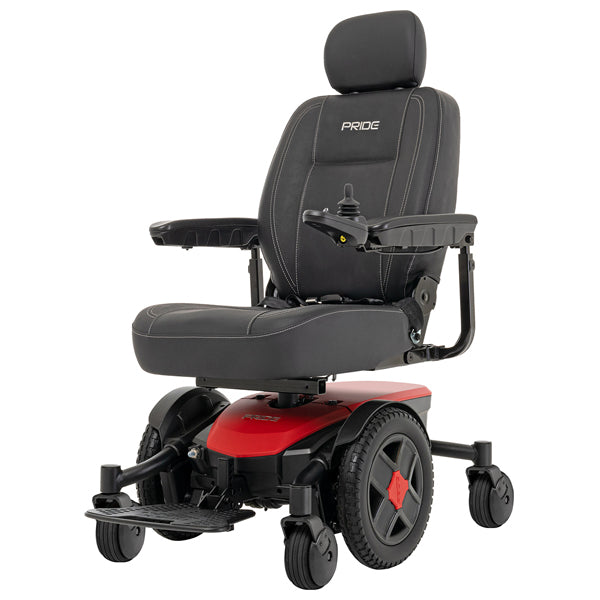

Jazzy EVO 613 w/ ATX Suspension

Heavy Duty Power Wheelchair
(Model No. PR-JZEVO613)
Colors:

Starting at: $3,759.00 USD

* FDA Class II Medical Device

Secure Checkout 256-bit SSL encryption on every order
Free Shipping On all orders over $50 across the USA
Price Match Guarantee Found it cheaper? We'll match it
Easy Returns Hassle-free returns within 30 days
Weight Capacity 300 lbs.
Battery Range Up to 17.1 mph
Turning Radius 22"
Top Speed Up to 5.1 mph
Unit Weight 149 lbs.

Pride Mobility

Jazzy EVO 613 w/ ATX Suspension

Heavy Duty Power Wheelchair
(Model No. PR-JZEVO613)

Starting at: $3,759.00 USD

* FDA Class II Medical Device

Watch Product Video
  • Cardinal Red
  • Iceburg Blue
  • Sugarplum
  • Robins Egg Blue
  • Black
$3,759.00
Shipping calculated at checkout.
Lead Time: This product ships in 2-7 business days.

Description
Specifications
Information

Pride Jazzy EVO 613 Power Wheelchair with ATX Suspension

The Jazzy EVO 613 combines a 22-inch turning radius with Pride's Active-Trac suspension for maneuvering through tighter indoor spaces and handling uneven surfaces. The current listing gives a 300 lb user capacity and a maximum speed of 5.1 mph; actual speed depends on rider and operating conditions. Check the chair's footprint and route clearance before choosing it for a particular home.

Choose a seat and joystick setup

The listing offers 16-, 18- and 20-inch seat widths with depth-adjustable options, plus left- or right-side joystick placement. A swing-away joystick is also available. Confirm the exact seat, depth, joystick and delivery selections at checkout; these choices affect the finished setup.

Confirm the battery and expected range

The listing identifies sealed lead-acid batteries as available, while battery type and rider weight affect driving range. Published range figures vary across the product data, so confirm the battery included with the order and its applicable range before relying on a distance estimate. Do not treat the maximum as a guaranteed trip length.

Device information

Top Mobility identifies this Pride chair as an FDA Class II medical device designed to aid individuals with mobility impairments. The listing includes a one-year in-home labor service plan; confirm the current service coverage and delivery requirements for your order.

* Pride Mobility FDA Class II Medical Devices are designed to aid individuals with mobility impairments.

Model Jazzy EVO 613
Weight Capacity 300 lbs.
Turning Radius 22"
Width 22"
Length 35" (41" with footrest)
Maximum Speed Up to 5.1 mph
Ground Clearance 3"
Front Casters 5"
Drive Wheels 13" solid
Rear Casters 5"
Drivetrain Two-motor, in-line, mid-wheel drive
Braking System Regenerative and electro-mechanical
Suspension Type Active-Trac (ATX)
High-Back Seat Sizes

16"x16-18"

18"x18-20"

20"x18-20"
Seat-to-Floor Range 19.75" - 21.25"

Per Charge Range

(SLA Battery)

Up to 14 miles at 300 lbs;

Up to 17.1 miles at 200 lbs

Per Charge Range

(Li-Ion Battery)

Up to 17.6 miles at 300 lbs;

Up to 21 miles at 200 lbs
Standard Electronics 40A, PG Gc3
Base Weight 94 lbs
Seat Weight (18" seat) 48 lbs
Battery Weight (SLA) (2) 23.5 lbs each
Battery Weight (Li-Ion) 18.5 lbs
Total Weight

189 lbs (with SLA batteries)

160.5 lbs (with Li-Ion battery)
Warranty

Frame: 5 year limited

Drivetrain: 13 month limited

Electronics: 13 month limited

SLA Battery: 13 month limited

Lithium Ion Battery: 3 Year limited




Ownership Information:
Owner's Manual
Brochure
Warranty Insert
Warranty Information:

Warranty Information



Lifetime Limited Warranty
From the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:

  • Main Frame

1-Year Limited Warranty
For one (1) year from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:

    Electronic Assemblies, including:
  • Charger Assembly
  • Controller
  • Joystick

    • Main Frame Assemblies, including:
  • Metal Seat Framing
  • Fixed-position Seat Post

    • Other Components, including:
  • Electrical Harnesses
  • Accessories
  • Anti-tip Forks
  • Front Riggings
  • Bearings and Bushings
  • Motor/Gearbox Assembly
  • Brakes (Electronic Function ONLY)
  • Caster Forks
  • Front Rigging Mounting Brackets
12-Month Warranty - Lithium Ion Batteries
The batteries are covered by a separate for one (1) year warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.

Note: Starting from date of product delivery, battery charge must be maintained to ensure warranty coverage. For mobility products which are not used regularly, or during periods of storage prior to and after purchase date, batteries must be charged once a week, for 24 hours. Failure to do so will void battery warranty.

Warranty Exclusions
This warranty does not extend to those items which may require replacement due to normal wear and tear, including:

  • ABD Plastic Shrouds
  • Brake Pads
  • Motor Brushers
  • Tires and Tubes
  • Upholstery and Seating
  • Fuses/Bulbs
Circumstances beyond the control of Pride
Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized IN ADVANCE, by Pride Mobility Products.

Repairs and/or modifications made to any part without specific consent from Pride
Shipping / Returns Information:
This unit is delivered via common LTL carrier on a pallet. This will be left curbside for standard delivery. Some carriers schedule delivery appointments.

The following conditions apply:
  • This item has a 35% Restocking Fee
  • You are responsible for the cost of return shipping.
  • The product must be new and unused and in the original packaging.
  • All accessories and items that were included in the box must be returned.
  • Items canceled after the product has already shipped will be considered a return.
  • Delivery and service fees are not refundable.
  • Custom-made by the manufacturer to suit your specific needs are non-returnable.
  • An RA (Return Authorization) from Top Mobility must be requested within 15 days of delivery.
  • The item must be shipped back to the address noted on the RA within 15 days.
  • Once approved, your refund, minus any restocking and freight fees, will be issued to your original form of payment.

    • If you have questions about this item please call a Top Mobility Customer Service Expert at 1-888-364-3813.
