Arjohuntleigh - Maxi 500 - Patient Lift
(Model No. KM560001)
Starting at: $6,099.00 USD
Key Features
- Dual-position caregiver controls: The Maxi 500 can be operated from either the mast or hand control, letting the caregiver stay near the person being transferred while controlling lift movement.
- 500 lb safe working load: The lift's 500 lb rating provides a clear transfer-planning limit; the sling, spreader bar, and every other component must also be rated for the intended setup.
- Dual-position caregiver controls: The Maxi 500 can be operated from either the mast or hand control, letting the caregiver stay near the person being transferred while controlling lift movement.
- 500 lb safe working load: The lift's 500 lb rating provides a clear transfer-planning limit; the sling, spreader bar, and every other component must also be rated for the intended setup.
(Model No. KM560001)
Starting at: $6,099.00 USD
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.

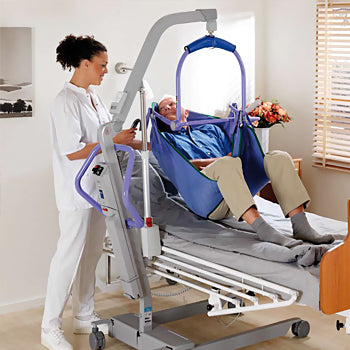

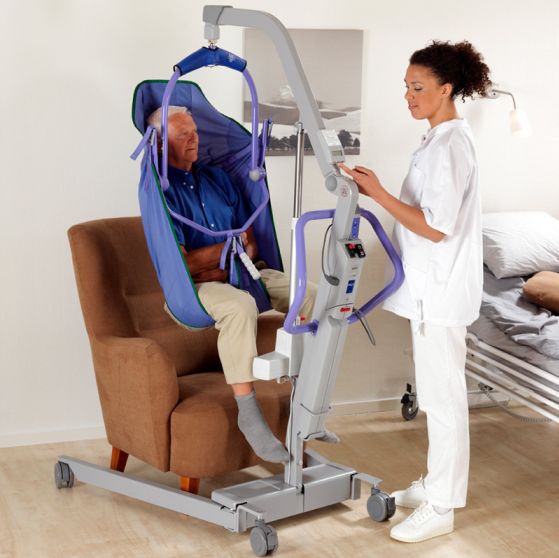

Arjo Maxi 500 Powered Floor Patient Lift
The Maxi 500 is a powered mobile floor lift designed to assist caregivers with transfers of dependent patients or residents in hospitals, long-term care, homecare and assisted-living settings. Its adjustable leg chassis opens to approach a chair, wheelchair or commode and closes again for narrower passages. This flexibility can help the lift work around different furniture layouts, but it does not eliminate the need to plan the route, select a compatible sling and bar, and assess the transfer for the individual patient.
Working Load Applies to the Complete Transfer Setup
Arjo lists a 500 lb safe working load for the lift. The permitted load for a transfer is the lowest rated limit among the lift, spreader bar, sling and any other accessory in use. Confirm each component's rating and compatibility before starting; do not rely on the lift's capacity alone if the selected sling or bar has a lower limit. The product is intended to support a caregiver-directed transfer, not replace training or a patient-specific assessment.
Plan the Room and Approach
The published external width is 26.75 inches with the legs closed and 42.5 inches with them open; turning diameter is listed as 55.4 inches. Check doorways, bed or chair access, space around the patient and the turning area needed to reposition the lift. Opening the chassis provides a wider approach, while closing it can help with passage through tighter spaces. The lift weighs 126 lb with the spreader bar and battery, so consider where it will be stored and how staff will move it between rooms.
Select the Spreader Bar and Sling Together
Arjo offers a 2-point loop spreader bar and a 4-point manual dynamic positioning system (DPS) bar. The compatible sling, loop arrangement and transfer method depend on the selected bar and the patient's needs. Do not treat the bars or slings as interchangeable based on appearance alone. Confirm the exact bar and sling combination, attachment points, size and intended transfer with Arjo or a qualified clinical supplier before ordering.
An optional suspended scale can integrate weighing into a transfer. If that is needed, confirm that the scale is compatible with the lift and selected bar and that it is part of the quoted configuration; it is not included by implication.
Controls, Battery and Operating Checks
The Maxi 500 can be operated from controls on the mast or from the hand control, allowing the caregiver to choose the control position suited to the transfer. It uses a 24 V, 4 Ah battery and includes a battery charge indicator. Follow the Instructions for Use for charging, inspection, emergency stop and lowering procedures, and the full transfer sequence. Confirm the battery is ready before a planned transfer and use the manual's charging guidance.
Before Use
Read Arjo's current Instructions for Use before operating the lift. Check the patient, sling, bar, lift rating, room clearances and staff plan as one complete transfer setup. A safe working load and powered controls do not determine whether a transfer is appropriate; the caregiver must be trained on the equipment and follow the care plan and manufacturer instructions.
|
Ownership Information
No product documentation available at this time.
Warranty Information
One year warranty except batteries, replacement parts which are warranted for three months from the date of the purchase and it does not cover normal wear and tear, abuse or problems caused by using the product for other than that for which it was intended.
