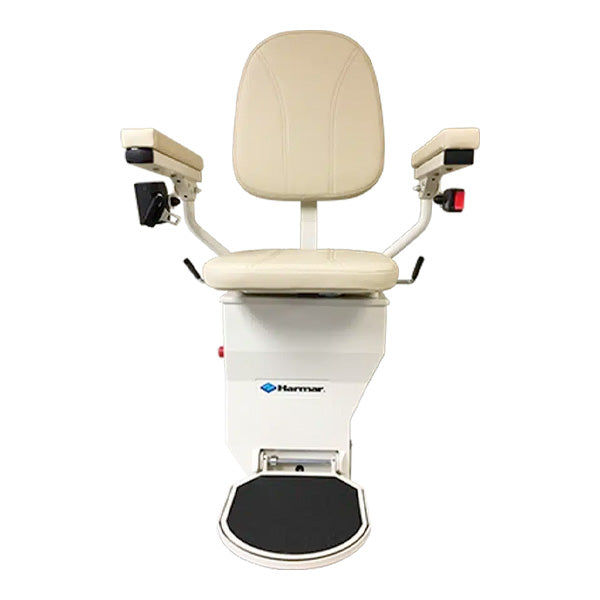

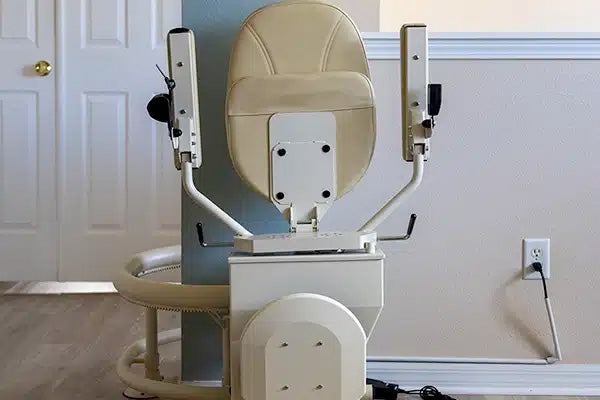

Harmar Helix Curved Stairlift (CSL500)

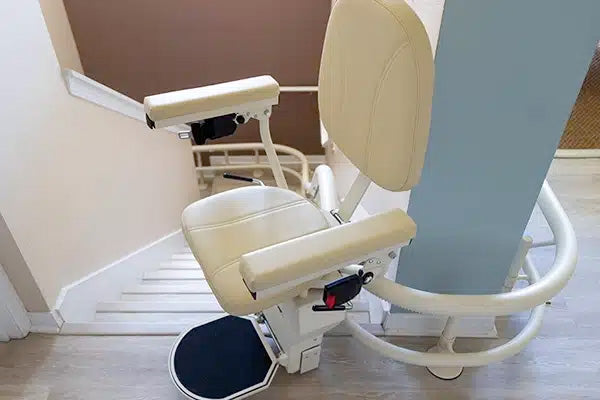

The Helix uses a custom-fabricated rail designed for the home's curved staircase, including turns and landings. Because the rail is made for the installation, arrange a staircase assessment and confirm the rail layout, landing clearances and installation requirements before ordering.
Rider and operation

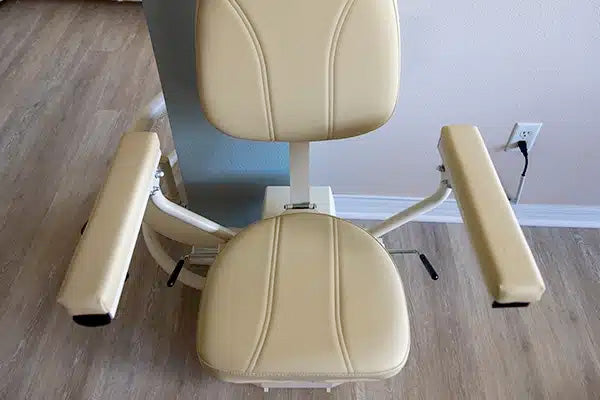

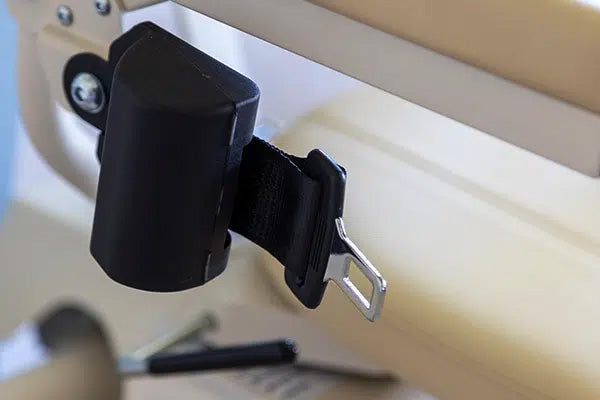

Top Mobility lists a 350 lb maximum capacity and an operating speed of 20 feet per minute. The listed safety and access features include a swivel seat, retractable seatbelt, footrest and chassis obstruction sensors, constant-pressure controls and remotes for calling or sending the chair. Confirm that the seat and transfer setup suit the rider and that the stairway remains clear during operation.
| Weight Capacity | 350 lbs |
| Speed | 20 FPM |
| Track Length | 16', 18', and 24' standard depending on configurationExtra rail up to 164' |
| Incline Limit(s) | up to 60° |
| Seat Size | 19' x 15' |
| Footrest Size | 11' x 12' |
| Folded Width | 16' from wall |
| Drive | Steel rack and pinion |
| Certified | ETL listedCSA B44.1/ASME A17.5Safety standard ASME A18.1Rated commercial & residential |
| Safety Features |
|
| Options |
|
| Warranty | Limited lifetime2-year parts1-year battery |
Parts: 3 Years
Gear Rack: 10 Years
Battery: 12 Months
