Guldmann

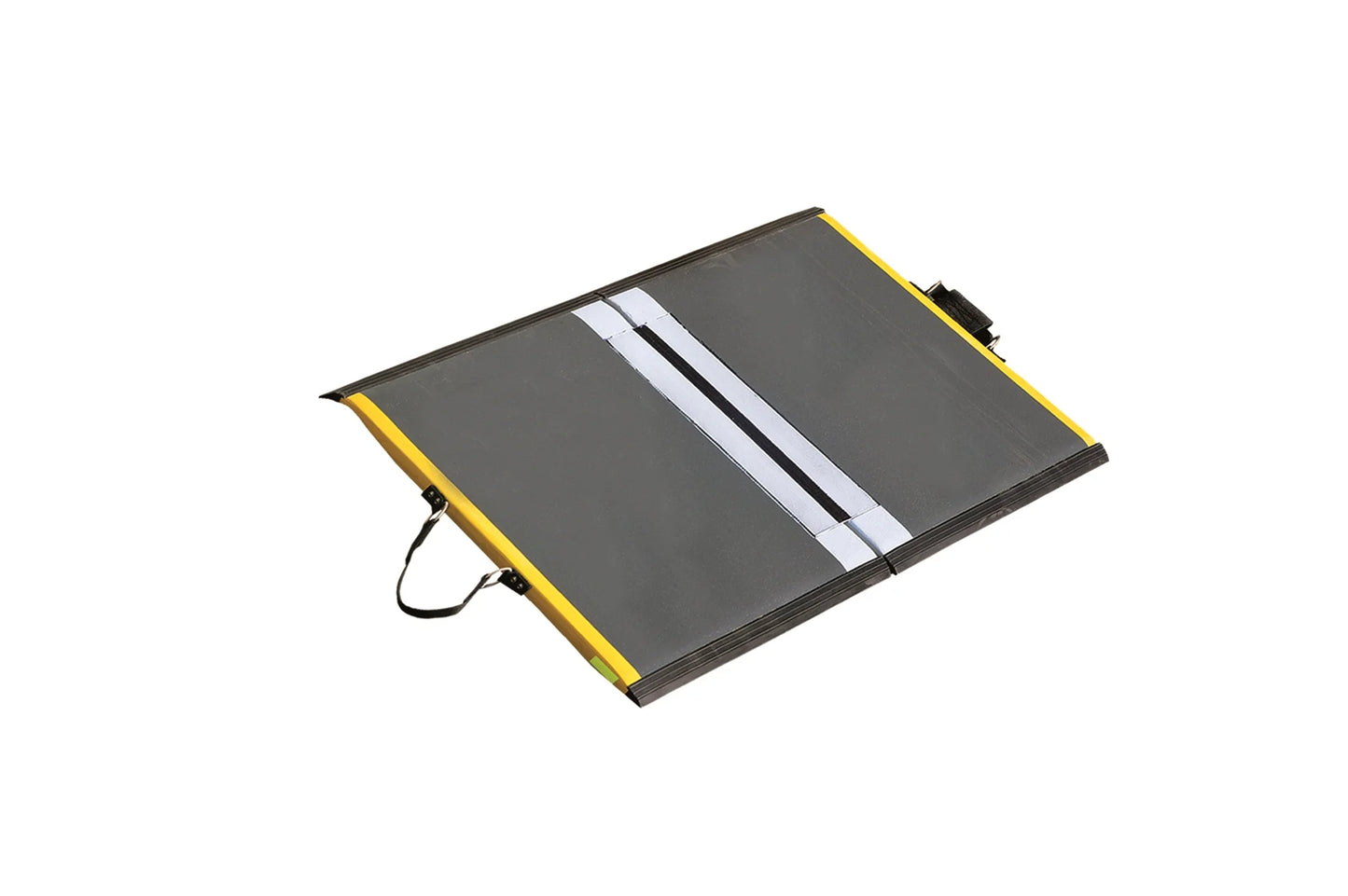

Stepless Lite Ramp - 1250mm ( 49.2" )

Accessibility Ramps
(Model No. 30100-xxx)

Starting at: $1,040.00 USD

Key Features

    • Ultra-Lightweight Frame: The base 700 mm (27.5-inch) variant weighs a mere 7.7 lbs. avoiding stability issues when hanging from the back of a wheelchair.
    • Heavy-Duty Capacity: Supports maximum distributed loads of up to 660 lbs. despite its lightweight footprint.
CONFIGURE
Secure Checkout 256-bit SSL encryption on every order
Free Shipping On all orders over $50 across the USA
Price Match Guarantee Found it cheaper? We'll match it
Easy Returns Hassle-free returns within 30 days

Guldmann

Accessibility Ramps
(Model No. 30100-xxx)

Starting at: $1,040.00 USD

Your Stepless Lite Ramp - 1250mm ( 49.2" )

Add Accidental Protection from CPS
Starting from: $1,040.00

Free shipping on this order!

$1,040.00
Shipping calculated at checkout.
Description
Specifications
Information

Guldmann Stepless Lite Ramp: 1250 mm (49.2 in)

This page selects the 1250 mm (49.2 in) ramp. Confirm the measured rise and available run against Guldmann's slope guidance before installation or use.

Planning the gradient

The manufacturer advises using the longest ramp possible for a gentler slope. General maximum gradients are 1:7 for user-operated manual wheelchairs and 1:5 for helper-assisted manual or electric wheelchairs. Actual suitability depends on the rise, approach, landing and local requirements, so verify the complete route rather than relying on length alone.

Material and capacity

The Stepless Lite is made from fiberglass and carbon fiber and has a broad non-skid driving surface. Its listed maximum distributed load is 660 lb. Ensure the load and placement comply with the manufacturer's instructions.

Folding transport and selected size

The ramp folds lengthwise for easier storage and transport. 1250 mm (49.2 in) is the selected length. Check the entry and landing transitions and ensure the ramp is secure before use.

Item No. 30100-070 30100-085 30100-125 30100-165 30100-205
Length 27.6 in 33.5 in 49.2 in 65.0 in 80.7 in
Width (Inner) 28.7 in 30.7 in 29.9 in 29.9 in 29.9 in
Width (Outer) 28.7 in 30.7 in 30.7 in 30.7 in 30.7 in
Width (Folded) 14.4 in 15.4 in 15.4 in 15.4 in 15.4 in
Height of Edge none none 1.0 in 1.0 in 1.0 in
Thickness (Fold) 1.5 in 1.5 in 4.2 in 4.2 in 4.2 in
Max Height Difference 5.5 in (1:5) 6.7 in (1:5) 9.8 in (1:5) 13.0 in (1:5) 16.1 in (1:5)
Weight 7.7 lbs 8.8 lbs 13.2 lbs 16.5 lbs 20.9 lbs
