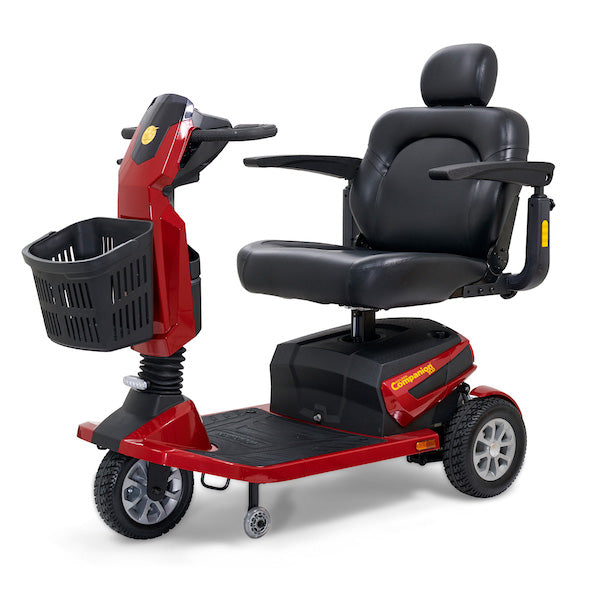

Golden Companion HD GC540 Heavy-Duty Mobility Scooter - Crimson Red

This listing selects the Crimson Red finish for the Companion HD. The color option changes its appearance, while the model configuration and operating characteristics described below remain those of this exact parent model.

The Companion HD GC540 serves a different need from Golden's compact travel scooters: a 500 lb. capacity, wider standard seating and an everyday platform that can be used indoors as well as on suitable outdoor routes. Its three-wheel layout helps keep turning demands below those of some larger four-wheel heavy-duty scooters, but it remains a substantial machine. The best reason to choose it is a successful rider fit and a workable daily route, not an expectation of lightweight car-trunk transport.

Start With Seat Fit and Transfer Position

The standard extra-wide high-back seat measures 22 inches wide by 20 inches deep, with an 18-inch back before the headrest. That is a meaningful distinction from the narrower seats on many travel scooters. Check cushion depth as well as width: adequate thigh support should not force the rider to sit forward or crowd the backs of the knees. The maximum capacity is 500 lbs., but the rider's actual posture and reach remain separate fitting questions.

The seat swivels for access and has a self-locking transportation seat lock. Four height positions in one-inch increments provide a ground-to-seat range of 24.5 to 27.5 inches. Test transfers at the chosen height and confirm comfortable foot placement on the deck. An optional 20-inch by 20-inch captain's chair and a six-inch power-elevating seat option with lockout are listed separately. Neither should be assumed to be part of the standard extra-wide seat.

Indoor Maneuvering Still Needs a Wide Enough Route

The GC540 measures 48 inches long and 26 inches wide, with a turning radius of 51 inches. The three-wheel layout can be useful in a larger home or retail space, but the width needs checking at doorways and beside furniture. Measure the whole path from the entrance to the parking spot, including turns and the space required to get off the scooter. Front anti-tip wheels are fitted, but they do not remove the need to judge side slopes and cornering speed.

The infinitely adjustable tiller lets the rider establish steering reach. The integrated LCD console reports battery energy and fault codes, which can help describe a problem accurately when service is needed. A tiller-mounted USB port and drink holders keep routine items close to hand. The maximum speed is 6 mph, with electronic speed control for a slower setting when using the scooter inside or moving through busy pedestrian areas.

A Heavy-Duty Chassis Needs a Transport Plan

The manufacturer lists an assembled weight of 225.5 lbs. This is the complete scooter weight, not a lifting-component figure. Do not use the seat's removability or the three-wheel layout as evidence that the chassis is practical for one-person loading. Before selecting a vehicle lift or ramp arrangement, assess the supplied scooter, its occupied and unoccupied handling requirements, and the vehicle equipment's rated capacity with the relevant installer.

Storage also deserves a plan at home. Allow space for turning into the parking position, reaching the charger and transferring out without blocking a doorway. A scooter that fits the rider but cannot be parked conveniently may complicate every trip. Where travel requires manual lifting, compare the actual loading routine with a dismantling scooter's separate pieces rather than comparing advertised weight capacities alone.

Battery, Suspension and Everyday Equipment

Two NF22 batteries provide a published operating range of up to 16 miles. Golden states that range varies with rider weight, drive surface, terrain and battery type. A rider near the maximum capacity should retain a realistic return reserve and not treat the brochure distance as a fixed outcome. The listed portable 8 amp off-board charger is part of the charging system; use it according to the supplied instructions rather than substituting equipment intended for a smaller scooter.

Rear suspension addresses minor bumps on a maintained route. The specification table lists a 10.25-inch front tire and 10.75-inch rear tires, all solid and non-marking. Center-deck clearance is 6.25 inches, while the motor/transaxle clearance is 3.75 inches. The lower point matters when judging transitions, and neither figure is a promise that the scooter can cross curbs. Choose firm accessible surfaces rather than loose sand, deep ruts or abrupt slopes.

A large front basket and an LED lighting package with headlights, taillights and flashers are standard. Electro-mechanical brakes and freewheel mode are fitted; learn how to restore powered driving mode after manual positioning. Optional holders and extra storage should be chosen around the final width and carrying needs. The Companion HD is strongest as a fitted daily-use scooter with substantial seating and load capacity, supported by a transport arrangement that respects its weight.

FDA Class II Medical Devices designed by Golden Technologies are intended to assist persons with physical disablements.

* Golden Technologies FDA Class II Medical Devices are designed to aid individuals with mobility impairments.
