• Red

Forcemech

Carbon F1 - Red

Travel / Folding Power Wheelchair
(Model No. FM-CarbonF1)

Starting at: $2,799.00 USD

Key Features

    • Ultra-Lightweight Frame: The full carbon fiber chassis weighs just 35 lbs. with the battery installed. It is light enough for easy lifting into a trunk or backseat by most users or caregivers
    • Travel-Approved Lithium Battery: Powered by a specialized 24V 10Ah Force Max lithium-ion battery that yields up to 10 miles of driving range per charge. The single battery layout safely falls under Federal Aviation Administration (FAA) limits for carry-on flight transport.
CONFIGURE
Secure Checkout 256-bit SSL encryption on every order
Free Shipping On all orders over $50 across the USA
Price Match Guarantee Found it cheaper? We'll match it
Easy Returns Hassle-free returns within 30 days
Weight Capacity 300 lbs.
Battery Range Up to 10 miles
Turning Radius 24"
Top Speed Up to 4 mph
Unit Weight 35 lbs.

Forcemech

Travel / Folding Power Wheelchair
(Model No. FM-CarbonF1)

Starting at: $2,799.00 USD
  • Red

Your Carbon F1 - Red

Powerchair Joystick✱ Selection Required
Starting from: $2,799.00

Free shipping on this order!

$2,799.00
Shipping calculated at checkout.
Description
Specifications
Information

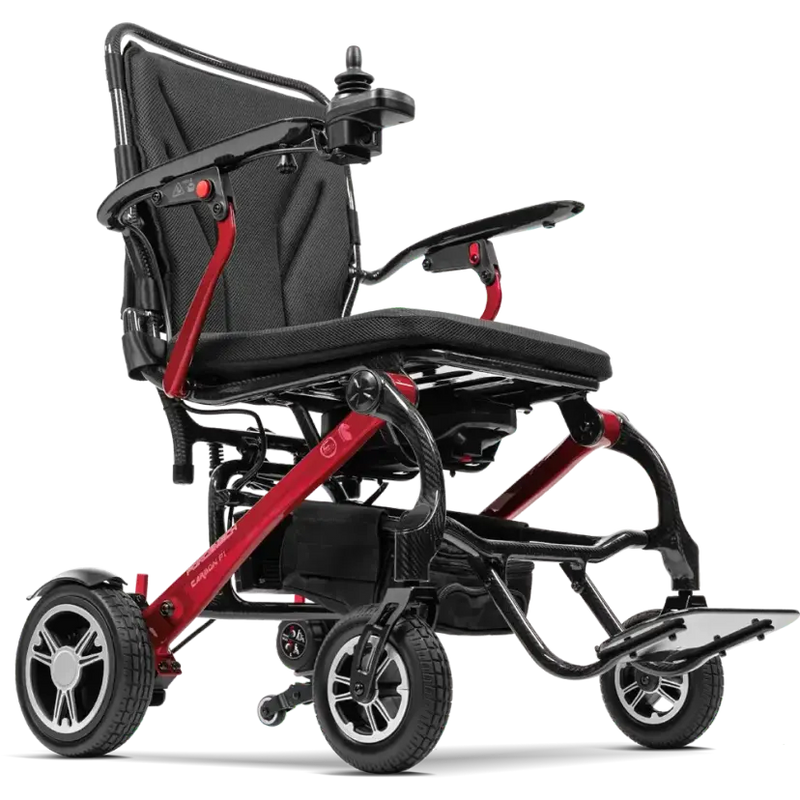

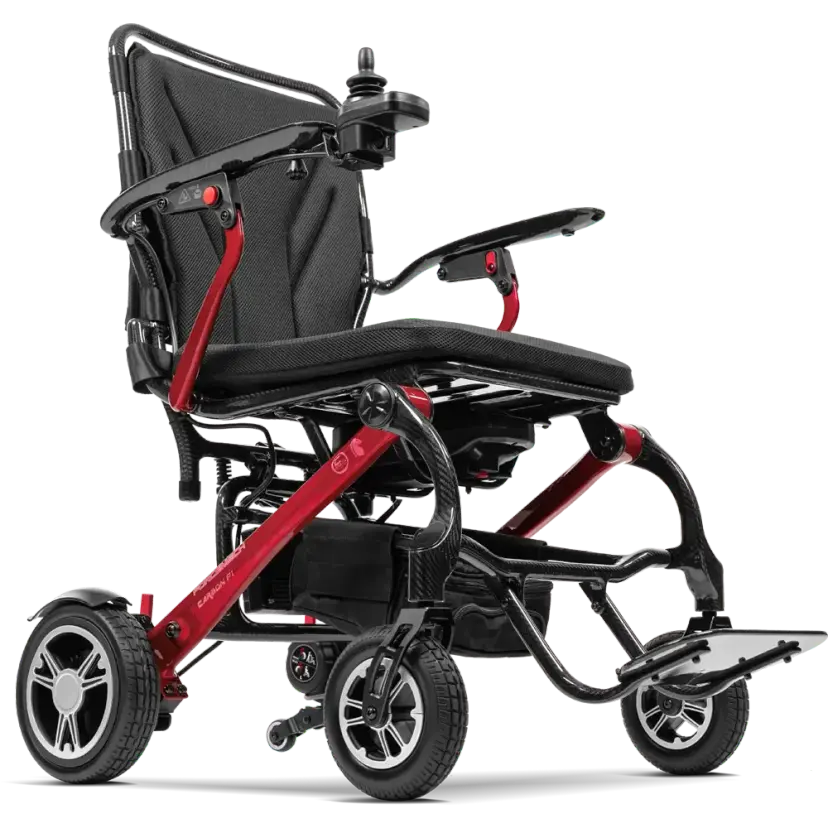

Forcemech Carbon F1 Power Wheelchair: Red

Red is the selected finish for this Carbon F1 listing. Check the joystick choice separately to confirm the delivered configuration.

Portable carbon chassis

The exact-model page lists the frame at 33 lb without a battery and 35 lb with the included 24V 10Ah lithium-ion battery. The chair folds for storage and transport. Measure your vehicle space and follow the supplied instructions; plan lifting around the complete battery-installed weight.

Operating performance

Published specifications give a 300 lb maximum capacity, top speed up to 4 mph, maximum range up to 10 miles and 24-inch turning radius. Actual range depends on conditions. Measure turning clearances and review route surfaces before relying on the chair for a particular outing.

Red finish and travel planning

Red is the selected color. Top Mobility identifies a 24V 10Ah Force Max lithium-ion battery and describes the chair as approved for FAA and cruise travel. Confirm the exact battery label and current airline or cruise-line requirements before travelling.

Unfolded Dimensions (LWH) 27"x24"x38"
Folded Dimensions (LWH) 28"x13"x24"
Total Weight (w/o Battery) 33 Lbs
Battery Weight 2 Lbs
Turning Radius 24"
Weight Capacity 300 Lbs
Driving Distance 10 Miles
Max Climbing Angle 9°
Max Obstacle Height 1"
Max Speed 4 Mph
Minimum Breaking Distance (from max speed) ≤ 39"
Effective Seat Depth 17"
Effective Seat Width 20"
Armrest Height 9"
Lithium Battery Specification 24V/10Ah
Ground Clearance 1.25"
Diameter of Front Wheel 7"
Diameter of Rear Wheel 8.5"
Motor Specification 24V 200W

Ownership Information

Owners Manual
Brochure

Warranty Information

Frame: 5 Years

Drive Train: 2 Years

Electronics: 1 Year

Batteries: 12 Months*
