• Blue

Forcemech

Carbon F1 - Blue

Travel / Folding Power Wheelchair
(Model No. FM-CarbonF1)

Starting at: $2,799.00 USD

Key Features

    • Ultra-Lightweight Frame: The full carbon fiber chassis weighs just 35 lbs. with the battery installed. It is light enough for easy lifting into a trunk or backseat by most users or caregivers
    • Travel-Approved Lithium Battery: Powered by a specialized 24V 10Ah Force Max lithium-ion battery that yields up to 10 miles of driving range per charge. The single battery layout safely falls under Federal Aviation Administration (FAA) limits for carry-on flight transport.
CONFIGURE
Secure Checkout 256-bit SSL encryption on every order
Free Shipping On all orders over $50 across the USA
Price Match Guarantee Found it cheaper? We'll match it
Easy Returns Hassle-free returns within 30 days
Weight Capacity 300 lbs.
Battery Range Up to 10 miles
Turning Radius 24"
Top Speed Up to 4 mph
Unit Weight 35 lbs.

Forcemech

Travel / Folding Power Wheelchair
(Model No. FM-CarbonF1)

Starting at: $2,799.00 USD
  • Blue

Your Carbon F1 - Blue

Powerchair Joystick✱ Selection Required
Starting from: $2,799.00

Free shipping on this order!

$2,799.00
Shipping calculated at checkout.
Description
Specifications
Information

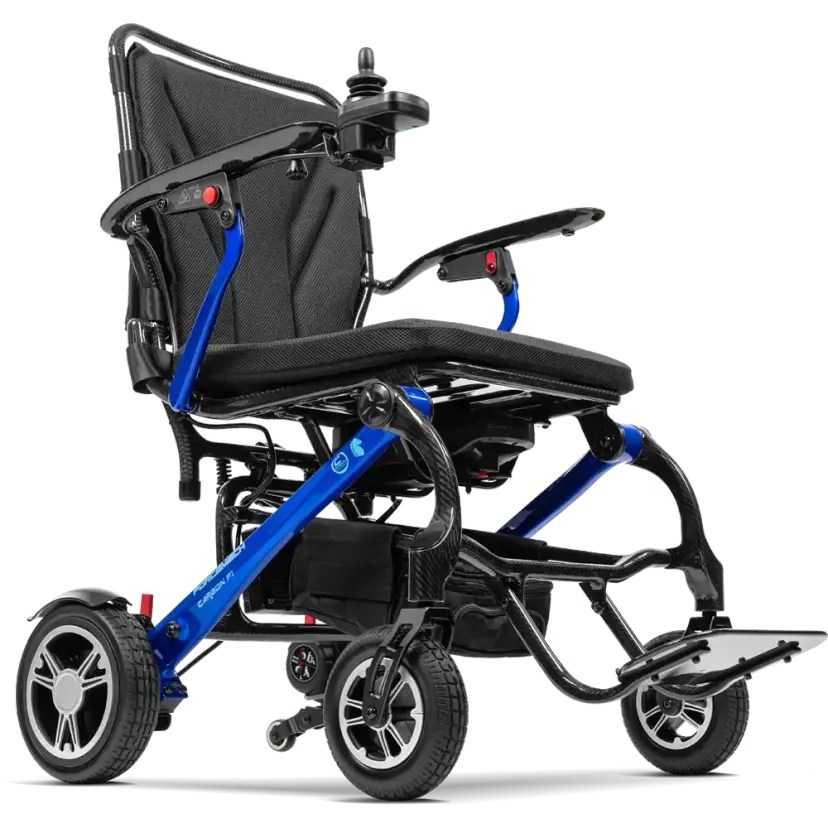

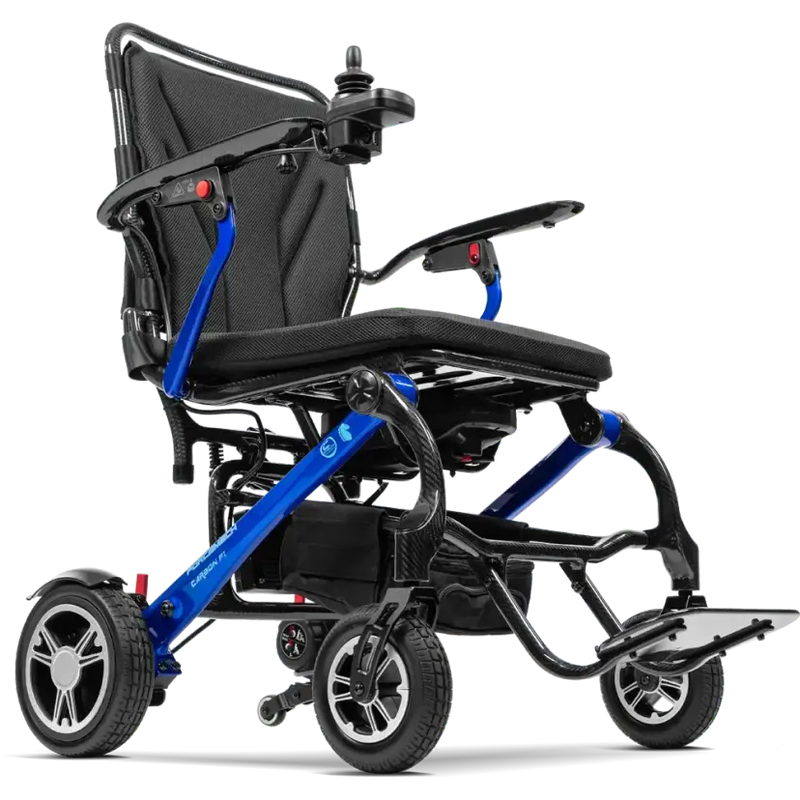

Forcemech Carbon F1 Power Wheelchair: Blue

This page selects the Forcemech Carbon F1 in Blue. The joystick configuration is a separate choice; verify the selected control in the order details.

Carbon frame and transport

The current listing gives a frame weight of 33 lb without the battery and a total weight of 35 lb with its 24V 10Ah lithium-ion battery installed. The chair folds for travel; check the supplied folding instructions and compare the folded chair with your vehicle storage space. Use the battery-inclusive figure when planning a lift.

Capacity and route limits

Top Mobility lists a 300 lb capacity, speed up to 4 mph, range up to 10 miles and a 24-inch turning radius. Range varies with operating conditions. Check the turning space and surfaces on your intended route, and plan charging around the actual trip rather than assuming maximum distance.

Blue finish and battery travel

Blue is the selected color. The listing describes a 24V 10Ah Force Max lithium-ion battery and says the chair is suitable for FAA and cruise travel. Airline and cruise operators can set specific battery rules; verify the battery marking and current carrier requirements before booking.

Unfolded Dimensions (LWH) 27"x24"x38"
Folded Dimensions (LWH) 28"x13"x24"
Total Weight (w/o Battery) 33 Lbs
Battery Weight 2 Lbs
Turning Radius 24"
Weight Capacity 300 Lbs
Driving Distance 10 Miles
Max Climbing Angle 9°
Max Obstacle Height 1"
Max Speed 4 Mph
Minimum Breaking Distance (from max speed) ≤ 39"
Effective Seat Depth 17"
Effective Seat Width 20"
Armrest Height 9"
Lithium Battery Specification 24V/10Ah
Ground Clearance 1.25"
Diameter of Front Wheel 7"
Diameter of Rear Wheel 8.5"
Motor Specification 24V 200W

Ownership Information

Owners Manual
Brochure

Warranty Information

Frame: 5 Years

Drive Train: 2 Years

Electronics: 1 Year

Batteries: 12 Months*
