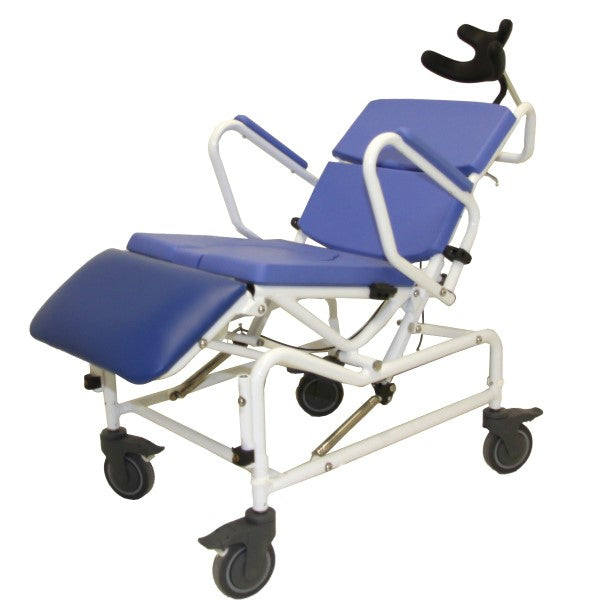

Healthline EZee Life 170 Tilt and Recline Rehab Shower Commode

Healthline® EZee Life Rehab Shower Commode Model 170 Features:

• Rust-proof aluminum frame
• Safety belt included
• Multi-position adjustable headrest
• Flip-up armrests and adjustable seat height
• Tilting and reclining seat frame
• 4 locking caster wheels
• Padded lower leg and swing away legrests support
• Caregive Controlled Tilt/Recline Function

Owner's Manual (English)

Model Number	170
Frame Material	Aluminum
Lower Back Recline Range	90° to 111°
Upper Back Angle	15°
Weight	46.5 lbs. (21.1 kgs.)
Wheels (Locking Casters)	5 in. (12.7 cm.)
Seat Width	18 in. (45.7 cm.)
Seat Depth	17 in. (43.2 cm.)
Seat Height Adjustable	21.8 - 23.8 in. (55.4 - 60.5 cm.)
Footrest Hanger Angle	60°
Footrest Length Infinite adjustment	14 to 20 in. (35.6 - 50.8 cm.)
Back Height	16 in. (40.6 cm.)
Arm Height (from seat)	8 in. (20.3 cm.)
Arm Length	12.5 in. (31.8 cm.)
Arm Pad Length	11.75 in. (29.8 cm.)
Calf Support (WxL)	18.1 in. x 12 in.(46 cm. X 30.5 cm.)
Back Height Seat (Top of Back Support)	17.5 in.(44.5 cm.)
Back Width	18.3 in. (46.4 cm.)
Knee to Footrest height	14 in. - 20 in. (35.6 in. - 50.8 cm.)
Weight Capacity	286 lbs. (130 kgs.)
Backrest to end of calf support length when elevated	41.9 in. (106.5 cm.)
Overall Length when fully reclined/tilted	49.2 in. (125 cm.)
Overall Length when upright footrests at their highest	47.7 in. (121.2 cm.)
Overall Length when upright footrests at their lowest	50.3 in. (128.1 cm.)

Limited Warranty

Ezee Life products carry a two-year warranty against manufacturing defects, faulty materials, and workmanship only.

Any alterations, misuse, abuse, or accidental damage voids this warranty. Healthline reserves the right to replace or repair any part that has become defective.

The warranty does not extend to consequential costs resulting from the fault or defect of the product: freight and travel costs, loss of earnings, or other expenses that one may incur.

Warranty is valid for the original purchaser only and the original receipt must be presented before any warranty options are considered. Please also be prepared to provide the date of purchase and serial number.

This unit is delivered via UPS or FedEx.

The following conditions apply:

This item has a 50% Restocking Fee.

You are responsible for the cost of return shipping.

The product must be new and unused and in the original packaging unopened.

All accessories and items that were included in the box must be returned.

Items canceled after the product has already shipped will be considered a return.

Delivery and service fees are not refundable.

Custom-made by the manufacturer to suit your specific needs are non-returnable.

An RA (Return Authorization) from Top Mobility must be requested within 15 days of delivery.

The item must be shipped back to the address noted on the RA within 15 days.

Once approved, your refund, minus any restocking and freight fees, will be issued to your original form of payment.

If you have questions about this item please call a Top Mobility Customer Service Expert at 1-888-364-3813.
