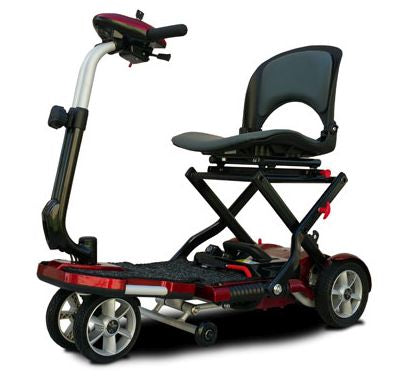

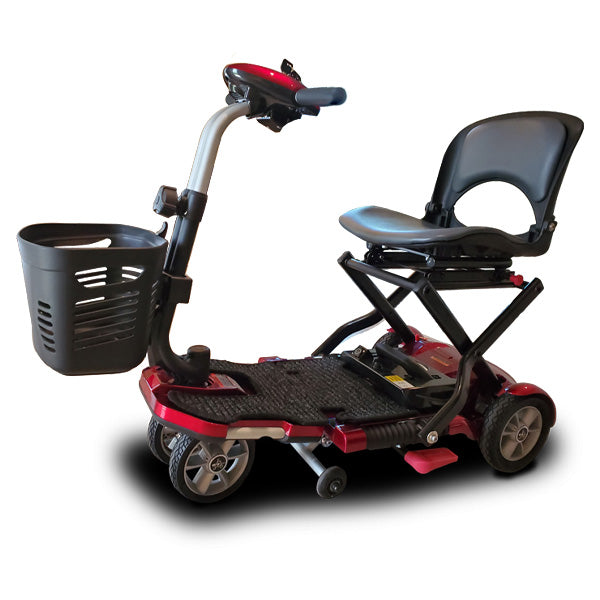

EV Rider Transport Plus S19+ Manual Folding Mobility Scooter Open Box Showroom Returns Model

Sku: EV-S19+
Starting at: $1,429.00 USD
  • Blue
Weight Capacity Driving Range Turning Radius Top Speed
250 lbs. Up to 15 miles (depending on rider) 32" Up to 4 mph (depending on rider)
$1,429.00
Shipping calculated at checkout.

  Lease to own   Pay as low as $/week
Sorry, it's out of stock.

But we can let you know when it's back in.

EV Rider S19 Manual Fold Open Box Returns Showroom Model

  • May have minor cosmetic blimishes
  • Fully checked by certified tech team
  • No functional issues and excellent battery life
  • Blue Color Only

 EV Rider Transport Plus Manual Folding Travel Mobility Scooter Features:

  • Lighting Package & digital display

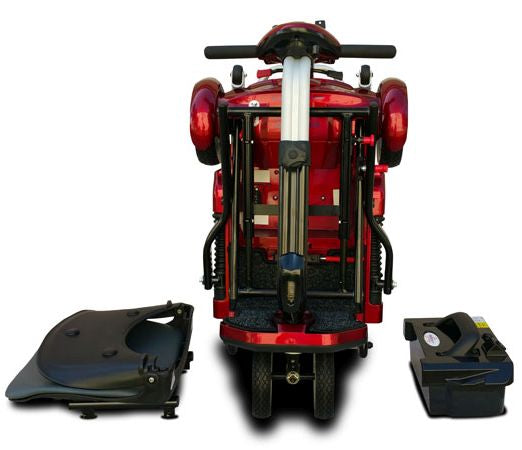

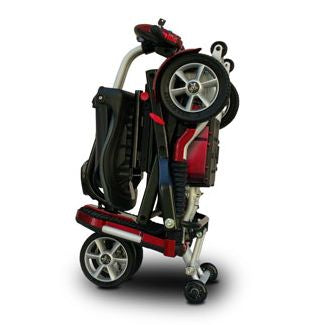

  • Unique design uses unusual folding concept
  • Easy to plug around at home or airports
  • Articulated front end adds to greater stability
  • Two versions: SLA or Li Ion Battery Pack
Owners Manual
Brochure
Battery Charging Tips

Overall Length

36'

Overall Width

21'

Overall Height (at Maximum Tiller Height)

37 ½'

Overall Height - at Minimum Tiller Height

31'

Legroom - Floorboard Length x Width

19' x 13'

Deck Height - Floorboard to Floor

6.5'

Ground Clearance

2.4'

Turning Radius

 32.3'

Folded Overall Length

31'
Folded Overall Width

19'

Folded Overall Height

18'

Weight with Std. 12V12Ah Batteries

70 lb

Weight with Opt. 112V11.5Ah Li Ion Batteries

60 lb

Weight without Batteries

46 lb

Seat Type

Folding backrest, ABS plasticwith high desity foam cushion

Seat - Width & Depth & Height

16' x 13½' x 13½'

Seat - Cushion Thickness

 1'

Seat Height - Cushion to Deck

 14'

Seat Height - Cushion to Floor

 20.5'

Tire Type

 Solid rubber front and rear

Rim Type Rear

Cast Aluminum

Rim Type Front

ABS Plastic

OEM Spec Rear

200 x 50

Outside Diameter Rear

8'

Tire Width Rear

2'

OEM Spec Front

180/40
Outside Diameter Front

7'

Tire Width Front

1.6'
Battery Type & Power

Std. Two 12V12Ah SLAOptional 24V11.5Ah Li Ion Battery Pack

Brake System

 Electromagnetic Brake

Climbing Angle - Maximum Recommended

6 degrees
Charger Type

2 Amp, 110/240 Volt SLA Charger2.5Amp,110/240 Volt,Li-ION Charger

Charging Time

 4 - 6 hours

Controller

S-Druive 45 Amp
*Driving Range

10 - 15 miles

Load Capacity

 250 lbs (115 kgs)

Motor & Drive Location

4-pole, 270 Watt, Rear-Wheel Drive
*Speed - Maximum

4 mph

Colors

 Metallic Blue, Burgundy, Copper and Plum
Tiller Type

Height Adjustable
Throttle Control Type

Digital Wig-Wag

Anti-Tipper Wheels-Rear

 Standard

(*) SPECIFICATION PERFORMANCE IS DETERMINED IN THE LABORATORY SETTING BASED ON IDEAL CONDITIONS (MINIMAL FRICTION, NO WIND AND CONTROLLED TEMPERATURE AND PRESSURE WITH AN AVERAGE STANDARD WEIGHT). ACTUAL PERFORMANCE WILL BE DIFFERENT THAN RESULTS OBTAINED DURING LABORATORY TESTING.

30 Day Limited Warranty

This unit is delivered via UPS or FedEx.

The following conditions apply:
  • This item is non-returnable.

    • If you have questions about this item please call a Top Mobility Customer Service Expert at 1-888-364-3813.
