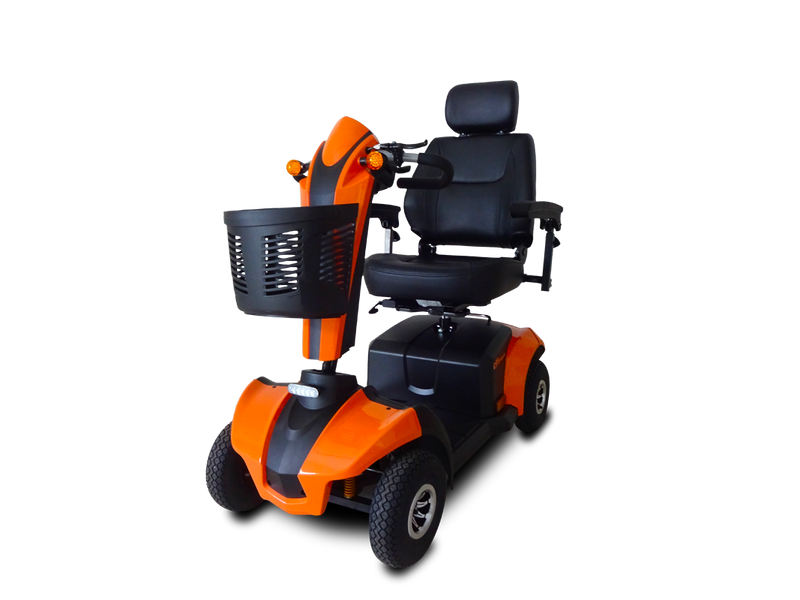

EV Rider CityRider 4 Wheel Medium Sized Mobility Scooter


(Model No. WT-M4JP6)

Starting at: $2,050.00 USD

Key Features

    • Well-upholstered Captain’s Chair
    • Adjustable Tiller
    • Full Lighting System
    • Full Suspension
    • Cable Breaks
Secure Checkout 256-bit SSL encryption on every order
Free Shipping On all orders over $50 across the USA
Price Match Guarantee Found it cheaper? We'll match it
Easy Returns Hassle-free returns within 30 days
Weight Capacity 350 lbs.
Battery Range Up to 17 miles
Turning Radius 56.3"
Top Speed Up to 6 mph

EV Rider


(Model No. WT-M4JP6)

Starting at: $2,050.00 USD
Regular price $2,050.00
Shipping calculated at checkout.
Product usually ships in 1-3 business days. Currently Out of Stock, no ETA.

Sorry, it's out of stock.

But we can let you know when it's back in.

Description
Specifications
Information

The EV Rider CityRider is a medium-size four-wheel medical mobility scooter with a captain's chair, adjustable tiller, and standard all-round suspension. It trades the smallest folded package for a more substantial seated arrangement and longer potential travel between charges. This is a different product from CityBug and CityCruzer. Its most useful qualities are comfort adjustments and everyday controls; the main ownership consideration is how a much larger base will be stored and transported.

A Comfort-Oriented Chassis, Not a Small Folder

The CityRider does not offer the remote-folding arrangement of a Transport AF model. Its manual specifies a base weight of 114 lbs, before considering the other parts that complete the scooter. That base is not a lightweight section intended for routine independent lifting. A suitable vehicle lift, ramp arrangement, or accessible loading space deserves attention before purchase, particularly when the scooter must travel by car frequently.

The published width is 23.2 inches. Check the route through doors, the approach to a parking space, and room beside the rider for a transfer. A scooter can fit through a doorway yet still be awkward to turn immediately beyond it. Do not assume removing the seat or batteries makes the remaining base comparable to a disassembled travel scooter. Use equipment rated for the complete load and the chosen vehicle rather than relying on nominal trunk space.

A Captain's Chair With Position Adjustments

The upholstered captain's chair and adjustable tiller are paired with standard suspension to prioritize the seated ride. The seat swivels for access and slides to help establish a suitable distance from the controls. Armrest width can also be adjusted. These features are particularly useful when a fixed compact seat would force the rider into an uncomfortable reach, but each adjustment should be made while stationary and secured before driving.

The manufacturer brochure specifies a 350-lb capacity. That load rating is distinct from seat fit and postural support. Check foot placement, knee clearance, and whether the backrest supports the rider in a usable driving position. Turn the power off before getting on or off, and return the swivel seat to its forward locked position. Comfort adjustments help establish a position; they do not substitute for the rider's ability to operate the controls.

Throttle Response and Automatic Braking

The tiller provides a key switch, speed dial, battery indication, horn, lighting control, and wig-wag paddles. The manufacturer brochure lists a top speed of up to 6 mph. That gives more pace than many small travel scooters, but lower settings are the appropriate choice near people, doorways, and sharp corners. Practice forward and reverse operation in a clear area before moving into a crowded layout.

Releasing the throttle activates the electromagnetic brake. Freewheel mode is for controlled manual pushing on level ground and disengages the normal drive and braking system; return the lever to drive before use. Do not switch the key off as a routine way to stop while moving, because it can produce an abrupt stop. Check that the scooter is fully stationary before transferring or making seat adjustments.

SLA Power and Longer-Route Planning

The CityRider uses two 12V sealed lead-acid batteries in a 24V system. The brochure lists up to 17 miles per charge. That offers more planning room than many compact folders, but it remains an ideal-condition upper figure. Rider and carried weight, repeated starts, gradients, cold weather, and battery aging all reduce the distance available. Keep a return reserve and plan charging around the next outing rather than running the gauge to its lowest indication.

The manual describes charging through a socket on the tiller. Use the approved SLA charger in a dry, ventilated place, follow its completion indication, and do not substitute a lithium charger or pack without approval. A convenient charging socket reduces bending but does not remove the space needed to park the scooter near a suitable outlet. Lights and the front basket are practical equipment; optional mirrors and a cover should be considered separately.

Medical Intended Use and Surface Limits

The owner instructions identify medical intended use for a person restricted to a seated position, specify indoor use and a maximum safe slope of 6 degrees, and exclude use as a seat in a moving motor vehicle. Suspension does not override those restrictions. Favor smooth, firm flooring, approach transitions slowly, and avoid loose, wet, or slippery surfaces. Transport the scooter as secured cargo and transfer to the vehicle's seat for the journey.

The CityRider makes sense when seating adjustments and a suspended ride are more important than a small folding package, provided the larger base can be accommodated. California Proposition 65 warning: This product can expose you to chemicals including lead and lead compounds, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Overall Length 46.4″/ 118 cm
Overall Width 23.2″ / 59 cm
Overall Height (at Maximum Tiller Height) 48.8″ / 124 cm
Overall Height – at Minimum Tiller Height 48.8″ / 124 cm
Legroom – Floorboard Length x Width 12” x 19”
Deck Height – Floorboard to Floor 5.5”
Ground Clearance 2.5” / 75 mm
Turning Radius 56.3″/143 cm
Folded Overall Length NA
Folded Overall Width NA
Folded Overall Height NA
Weight with Std. 206.4lbs/93.8kg
Weight with Batteries 206.4lbs/93.8kg
Weight without Batteries 154 lbs/70kg
Seat Type Captain seat
Seat – Width & Depth & Height 19 “ x 17 “ x 26”
Seat – Cushion Thickness 2.5”~ 3”
Seat Height – Cushion to Deck 18”
Seat Height – Cushion to Floor 20.5”
Tire Type Air
Rim Type Rear Aluminum
Rim Type Front 4”
OEM Spec Rear
Outside Diameter Rear 300-4×2(10″)
Tire Width Rear 3”
OEM Spec Front
Outside Diameter Front 300-4×2(10″)
Tire Width Front 3”
Battery Type & Power 35AH SLA Batteries
Brake System Electromagnetic Brake
Climbing Angle – Maximum Recommended 8°
Charger Type 4A Off-Board
Charging Time >8hr
Controller PG70A
*Driving Range 17 miles / 27.3 km
Load Capacity 350 lbs / 160 kg
Motor & Drive Location 470W 5300RPM
*Speed – Maximum 6 MPH
Colors Red, Black, Sunset Orange
Tiller Type DELTA
Throttle Control Type Wigwag
Anti-Tipper Wheels-Rear Yes
Ownership Information:
Warranty Information:

THREE-YEAR LIMITED WARRANTY

Three (3) years from the date of purchase on all structural frame components; seat post, and frame.

ONE-YEAR LIMITED WARRANTY

One (1) year from the date of purchase, if any electronic component of the Scooter or Power Chair is found upon examination to be defective in material and/or workmanship, it will be repaired or replaced, at IMC-Heartway, L.L.C. dba Heartway USA’s option, without charge. Labor charges are NOT included. The purchaser is responsible for the delivery to the authorized repair facility. Satisfactory proof of purchase, serial number and the date of purchase are always required. For warranty service, please contact the dealer/company from whom you purchased your Heartway product.

SHIPPING – DOMESTIC: All warranty items will be shipped via UPS Ground. Requested expedited shipping will be at the expense of the purchaser.

SHIPPING – INTERNATIONAL: Parts will be provided under warranty at no charge, but shipping to any offshore and/or international location will be the responsibility of the purchaser. International and offshore end-users must contact the dealer/distributor directly to initiate the warranty process.

ONE-YEAR WARRANTY EXCEPTIONS

Motor: In cases where there is an increase in the operational noise level, the warranty does not apply. (An increase in operational noise level usually occurs due to abusive and excessive strain on the scooter or power chairs).

The batteries are warranted by IMC-Heartway, L.L.C. dba Heartway USA for 6 months after the purchase of the Unit.

Service: Warranty service can be performed by IMC-Heartway, L.L.C. dba Heartway USA or by an authorized IMC-Heartway, L.L.C. dba Heartway USA service facility. Do not return faulty parts to IMC-Heartway, L.L.C. dba Heartway USA without prior consent. A request for a Return Authorization is required prior to returning items. All transportation costs and shipping damage incurred while submitting units and/or parts for repair or replacement are the responsibility of the original purchaser.

WARRANTY EXCLUSIONS: This warranty is only given to the original purchaser of the Scooter or Power chair. This Warranty excludes:

  • Consumable items which may need replacing due to normal wear and tear (tires, tubes, belts, bulbs, upholstery and seating, motor brushes, fuses, plastic shrouds and footrest covers, etc.)
  • Damaged caused by: battery fluid spillage or leakage, abuse, misuse, accident, or negligence, improper operation, excessive loading, maintenance, or storage, commercial use or use other than normal.
  • Used other than for the purpose of the purchaser’s personal mobility.
  • Repairs and/or modifications made to any part of the scooter/ power chair without specific and prior consent from IMC-Heartway, L.L.C. dba Heartway USA.
  • Labor, service calls, shipping, and other charges incurred for repair of the product not approved by IMC-Heartway, L.L.C. dba Heartway USA.

Batteries: Batteries carry a limited warranty which is subject to a stringent wear and tear clause. Any battery faults due to a defect in the original manufacture will normally become obvious within the first two months of use. Any gradual deterioration in performance after this period is normally associated with fair wear and tear, misuse or accidental damage and as such is not covered by the manufacturer’s warranty. There is no other express warranty.

Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of the original purchase and to the extent permitted by law. Any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded. Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of limitation of incidental or consequential damages. So, the above limitation or exclusion may not apply to you.
