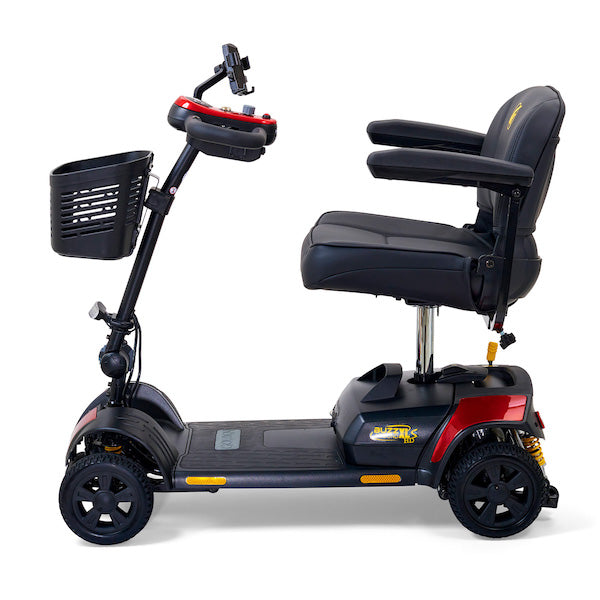

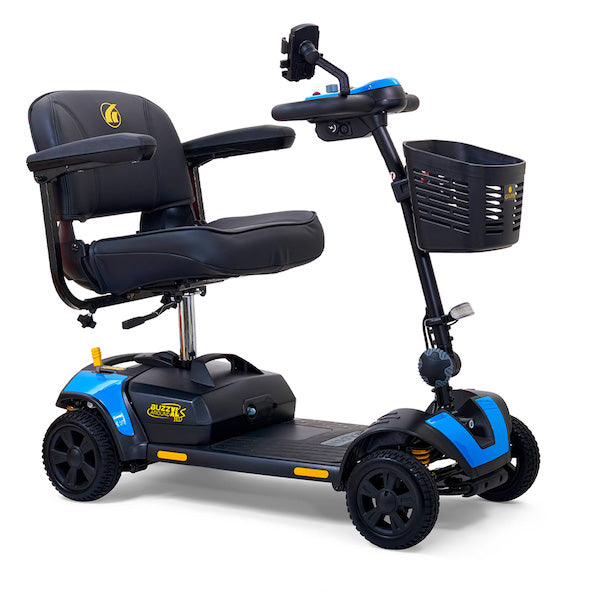

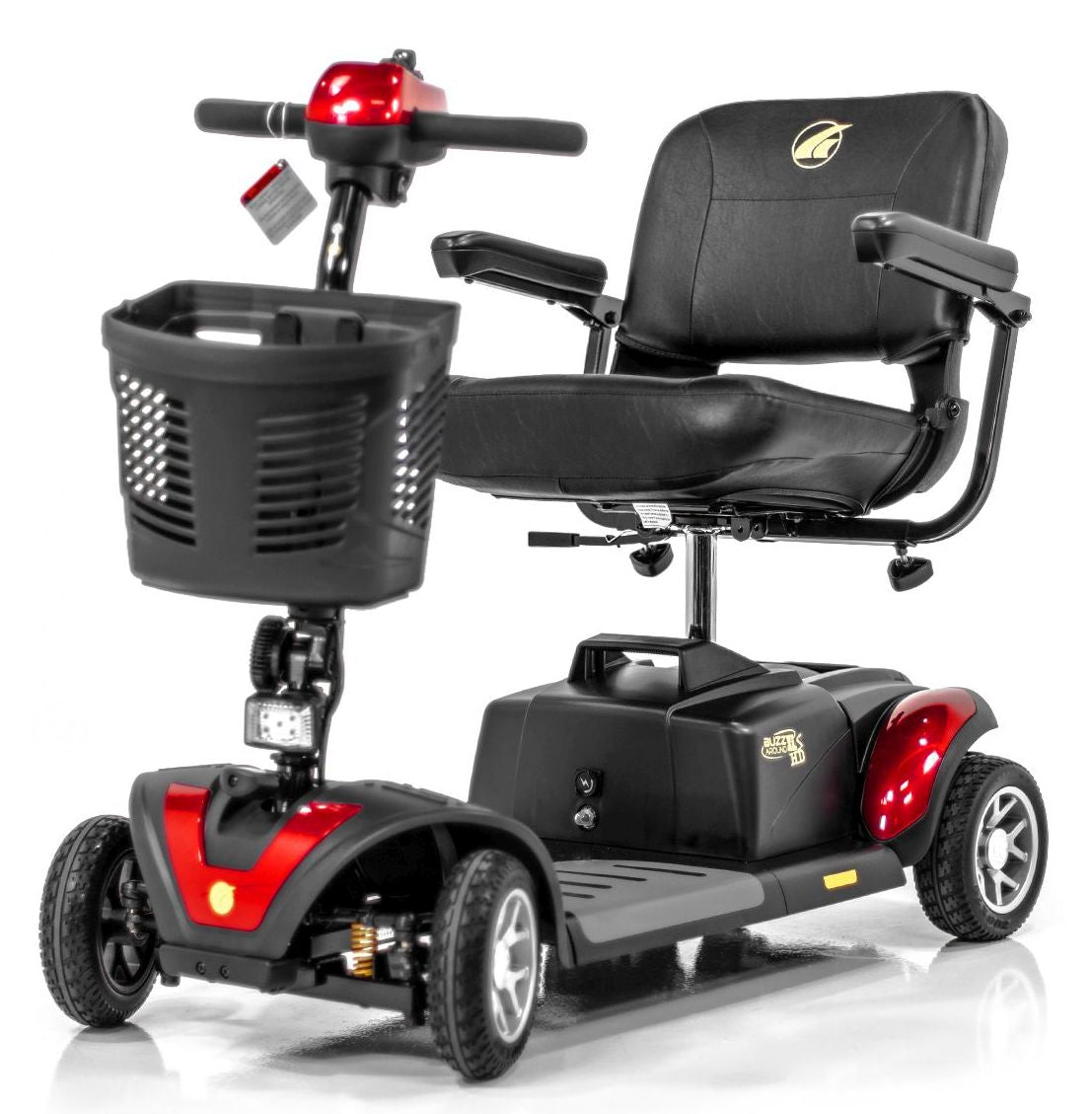

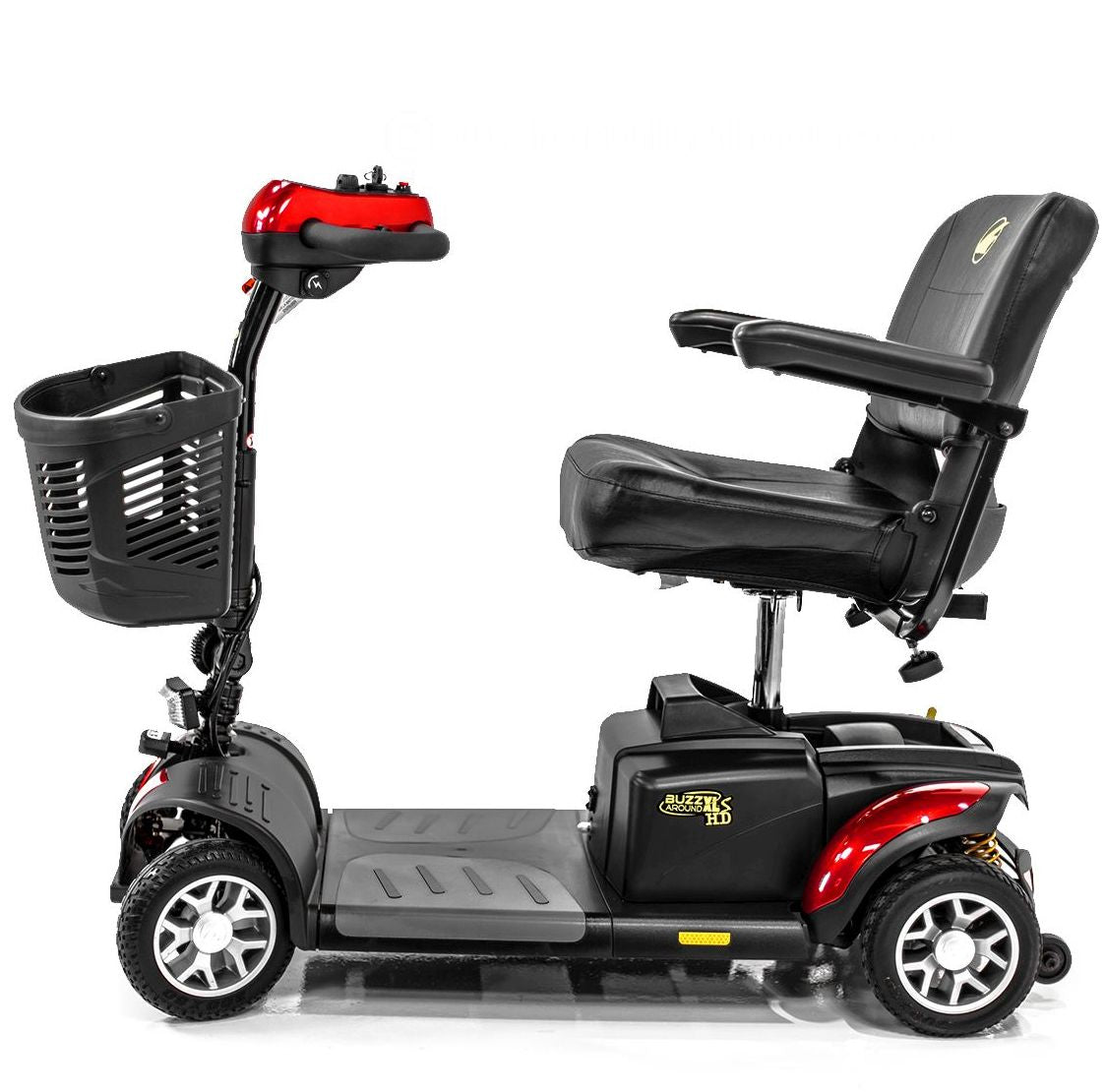

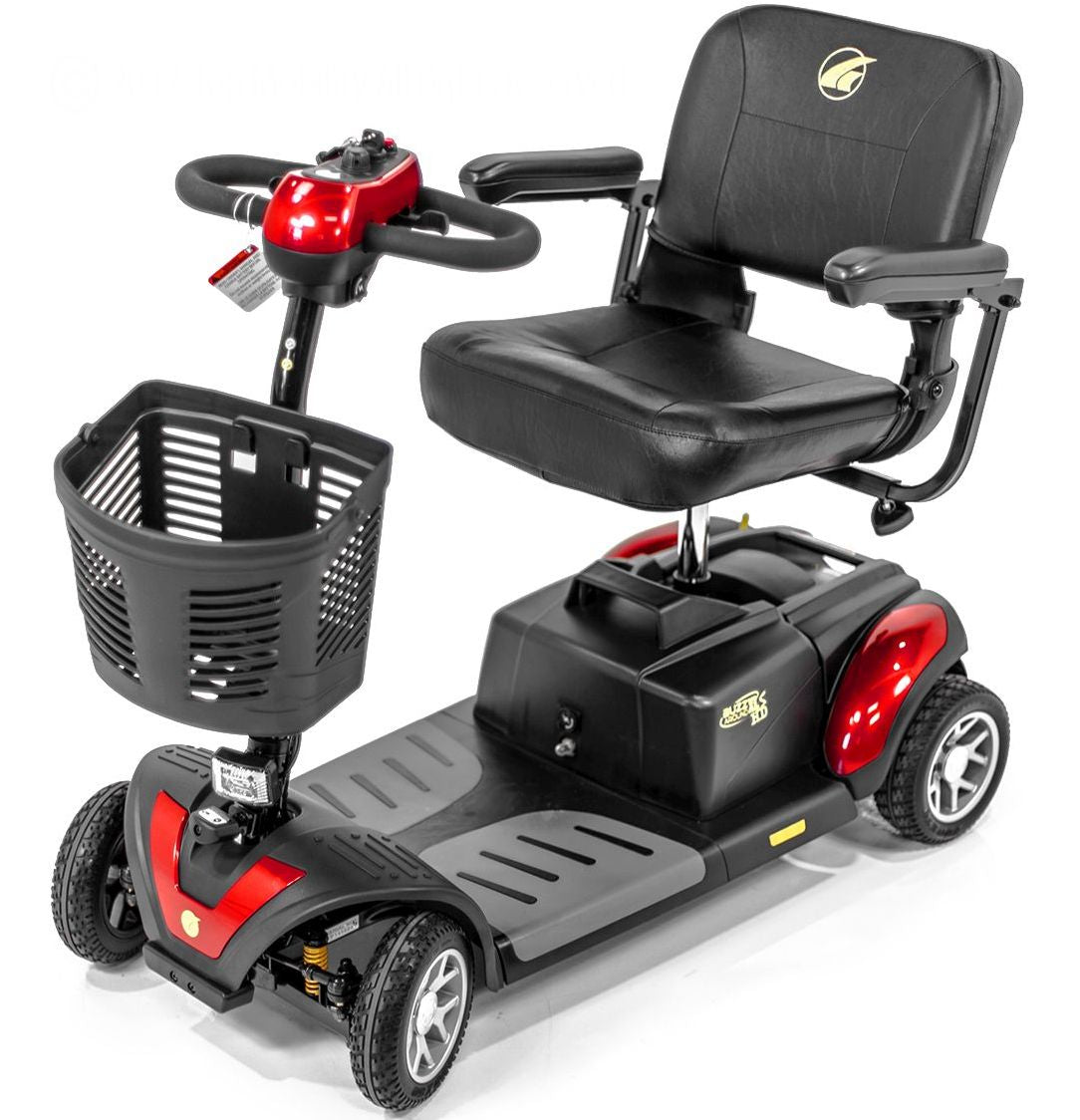

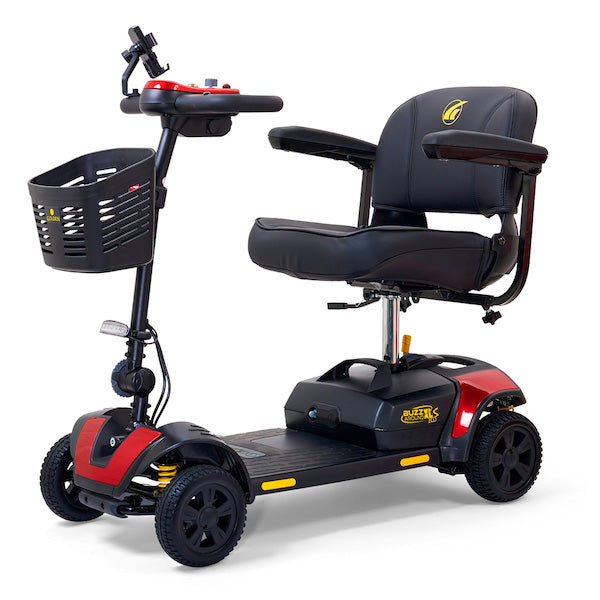

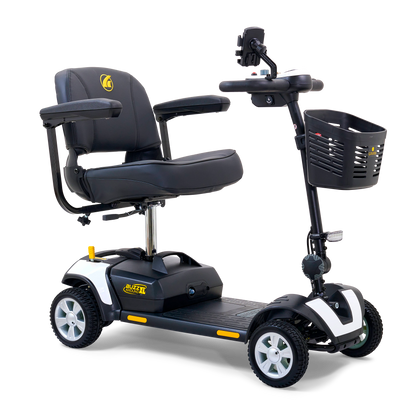

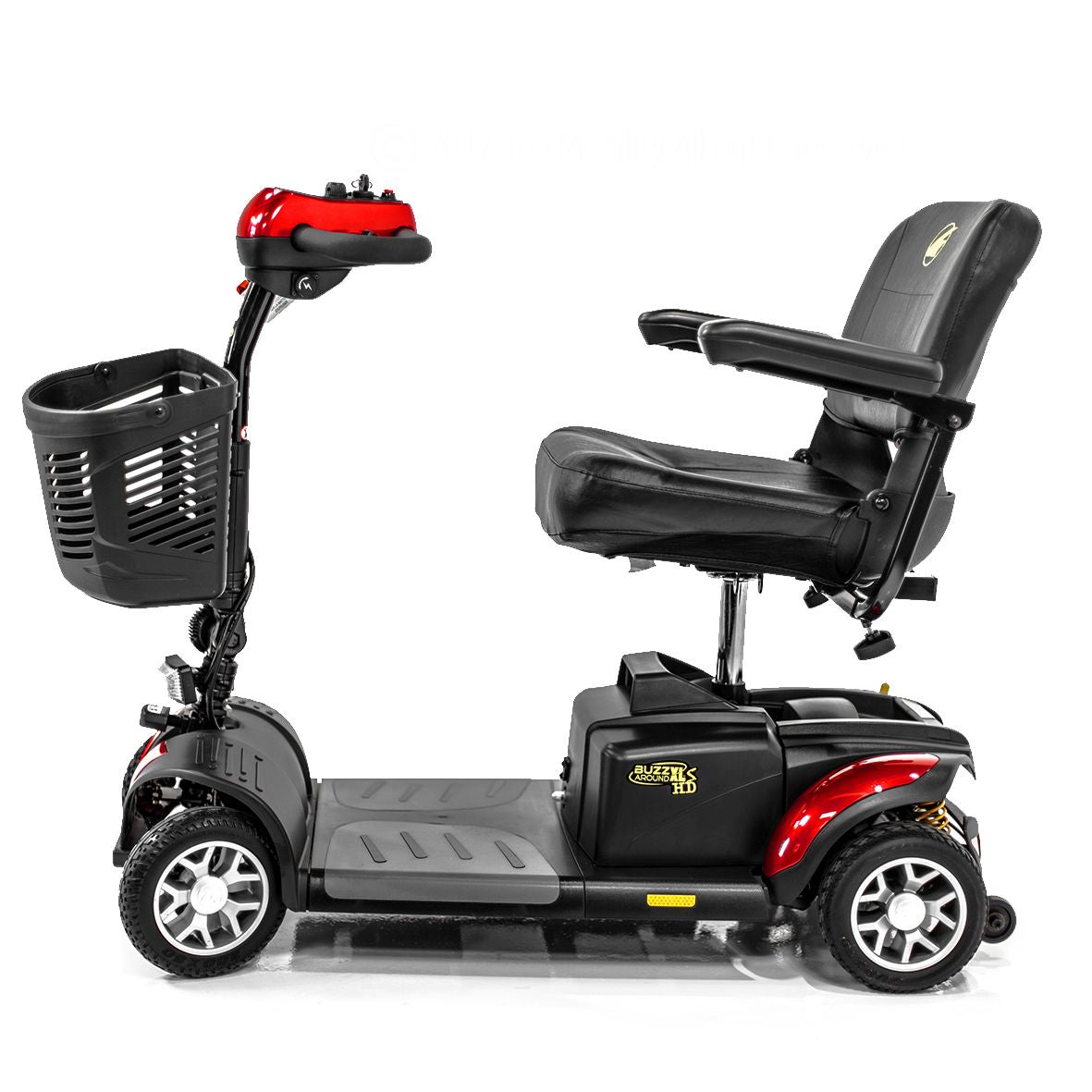

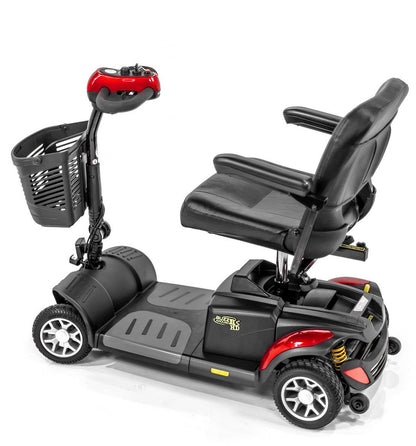

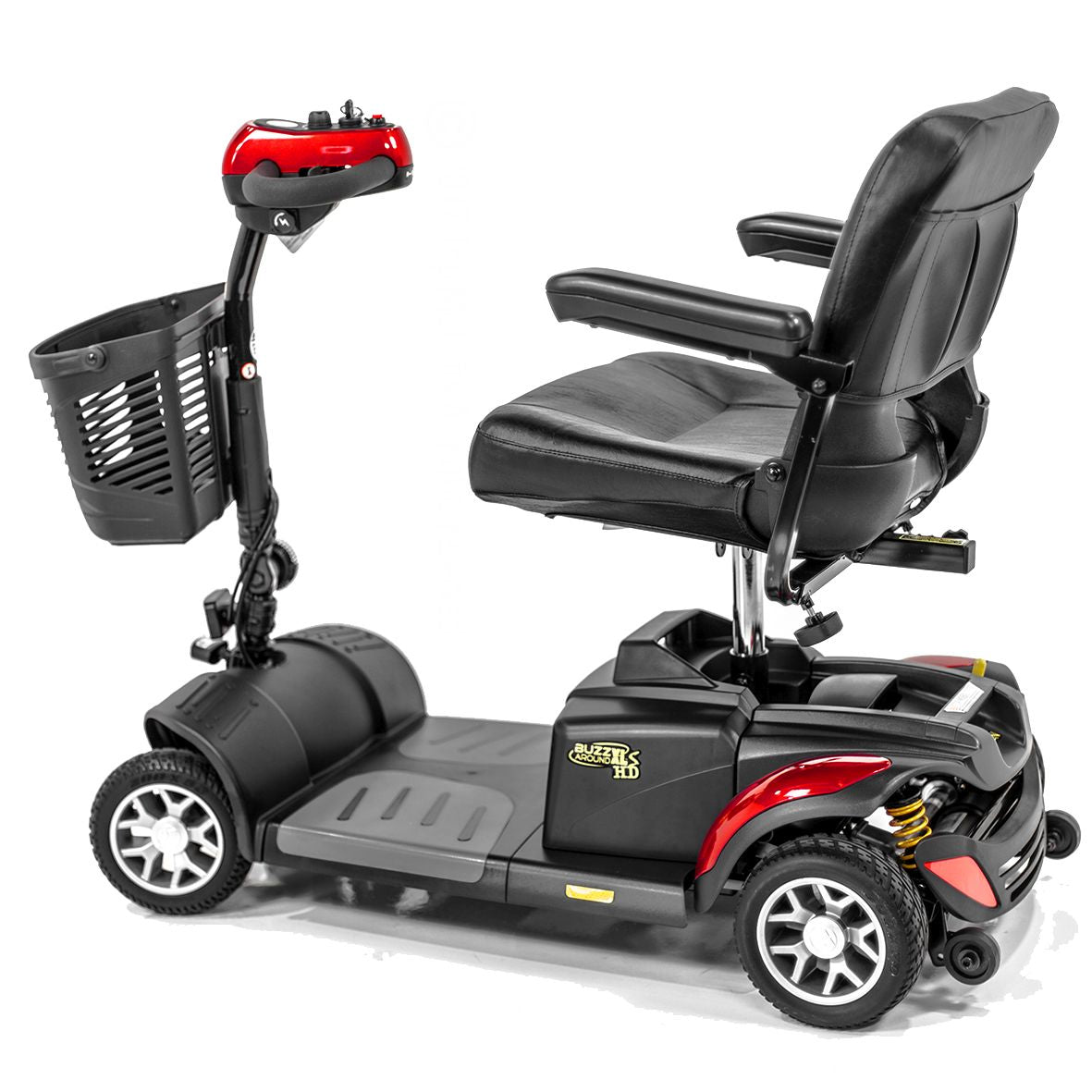

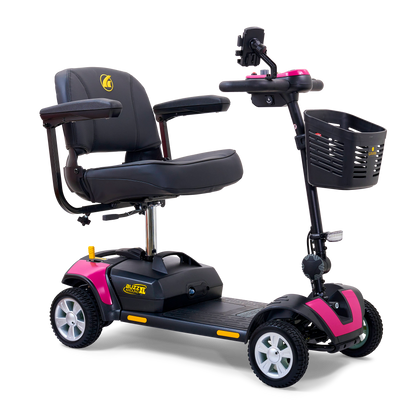

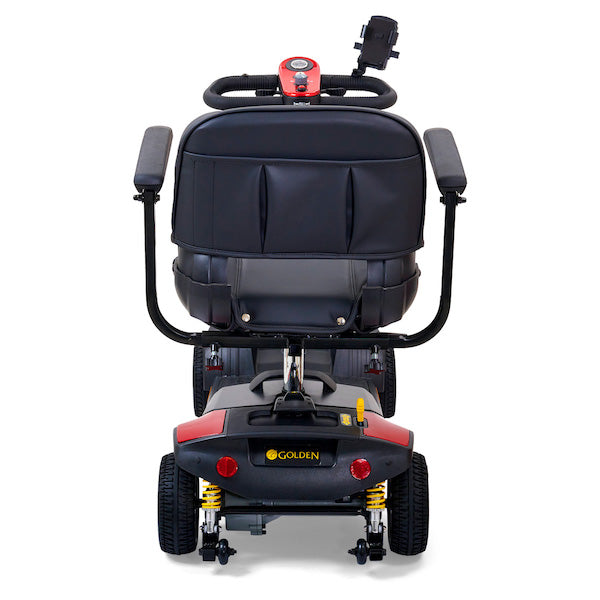

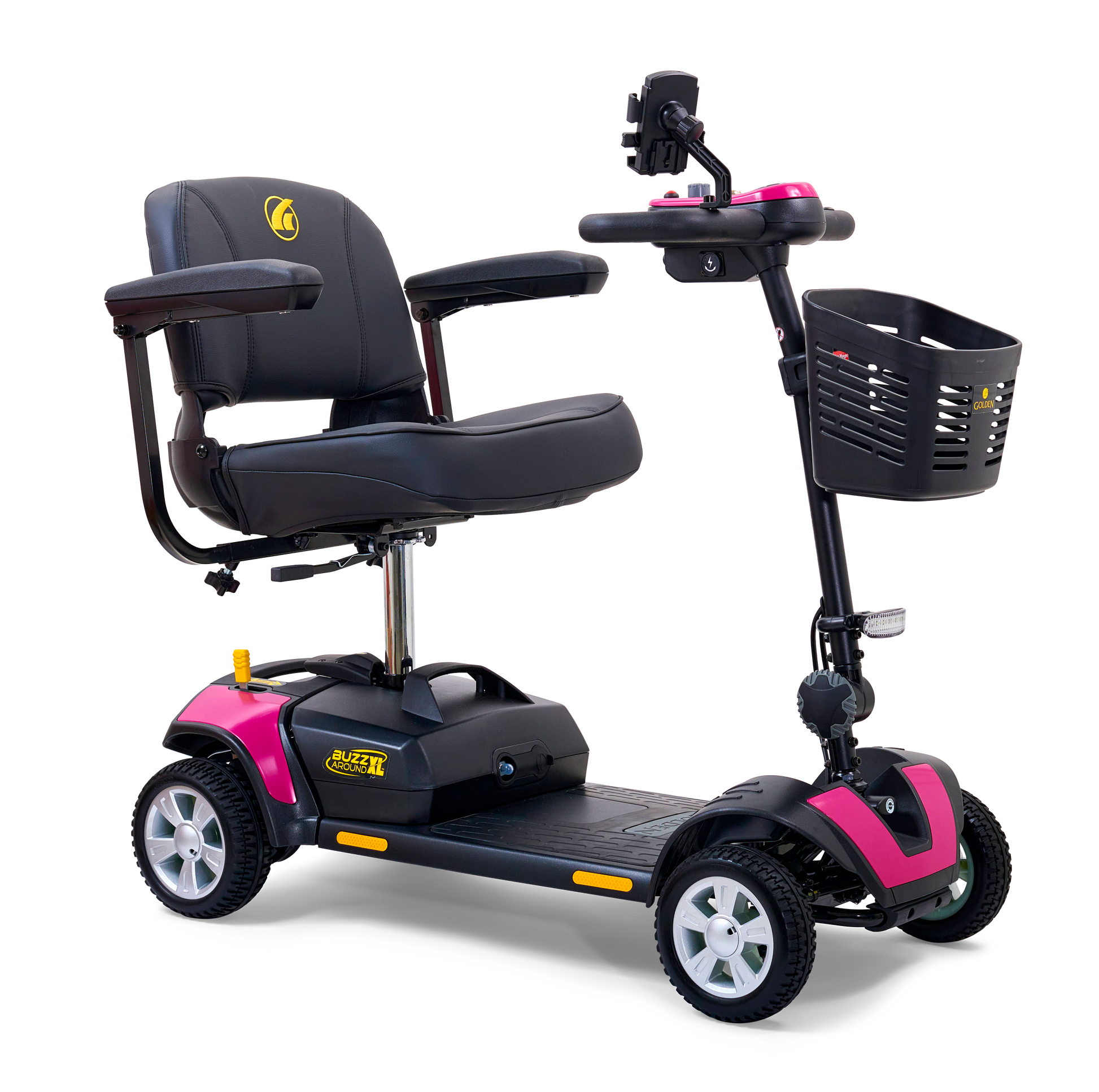

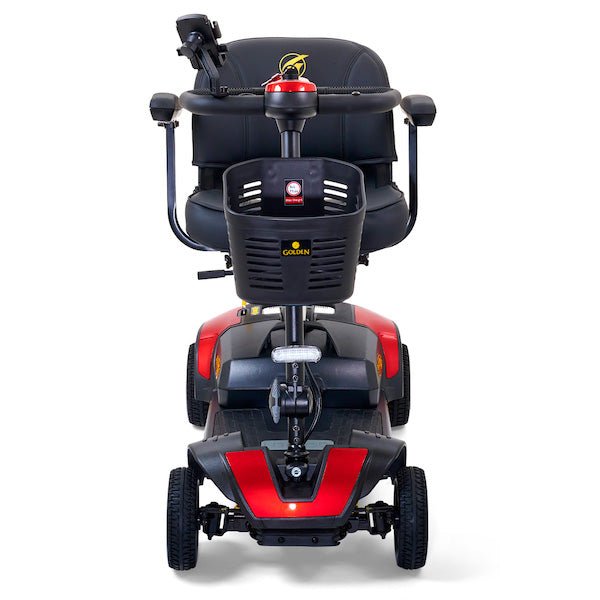

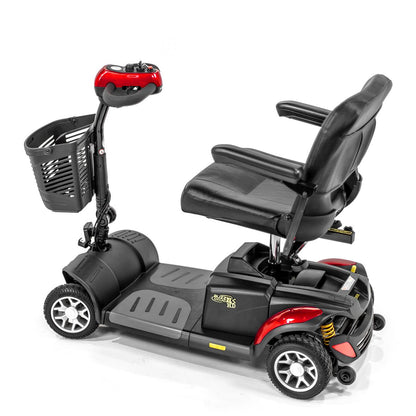

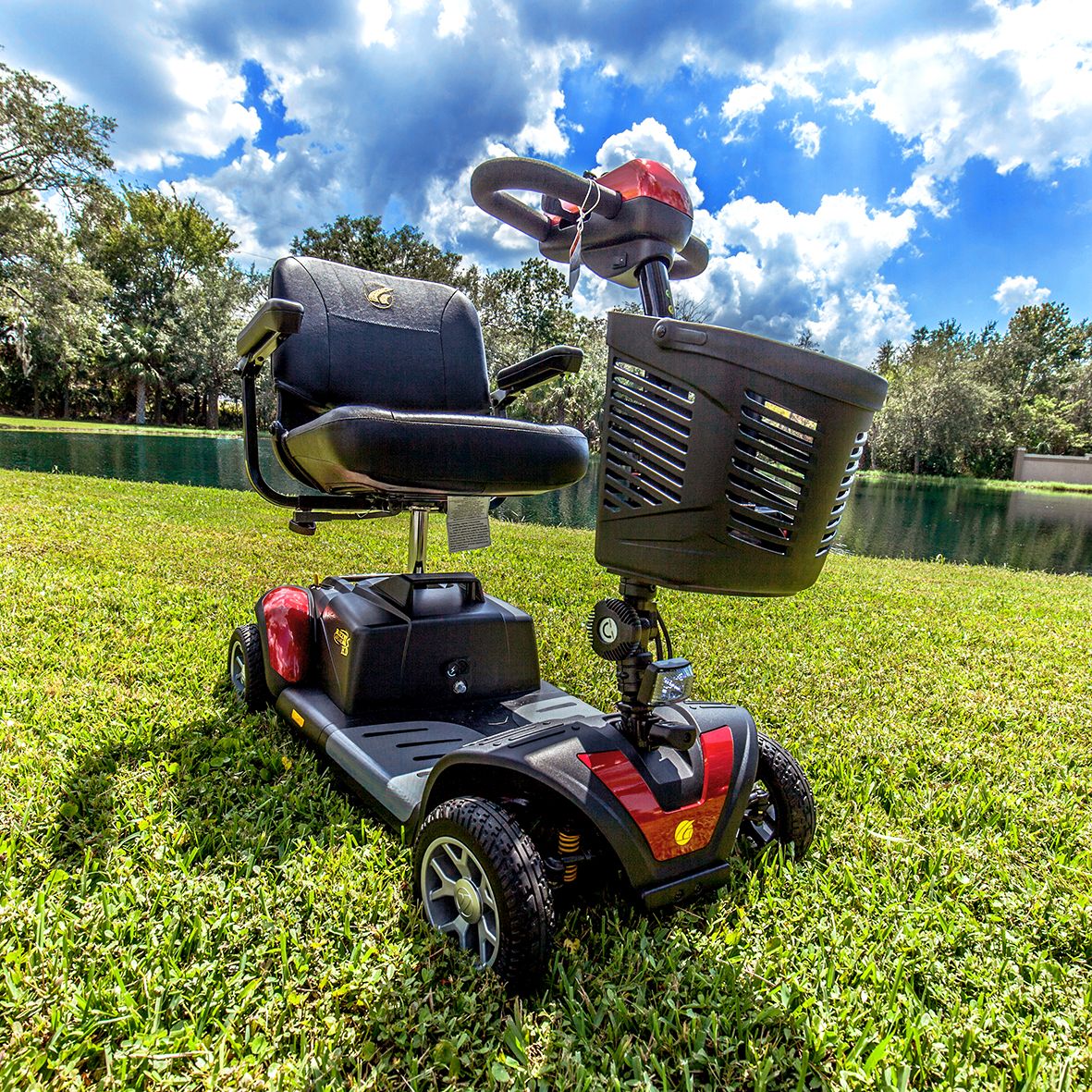

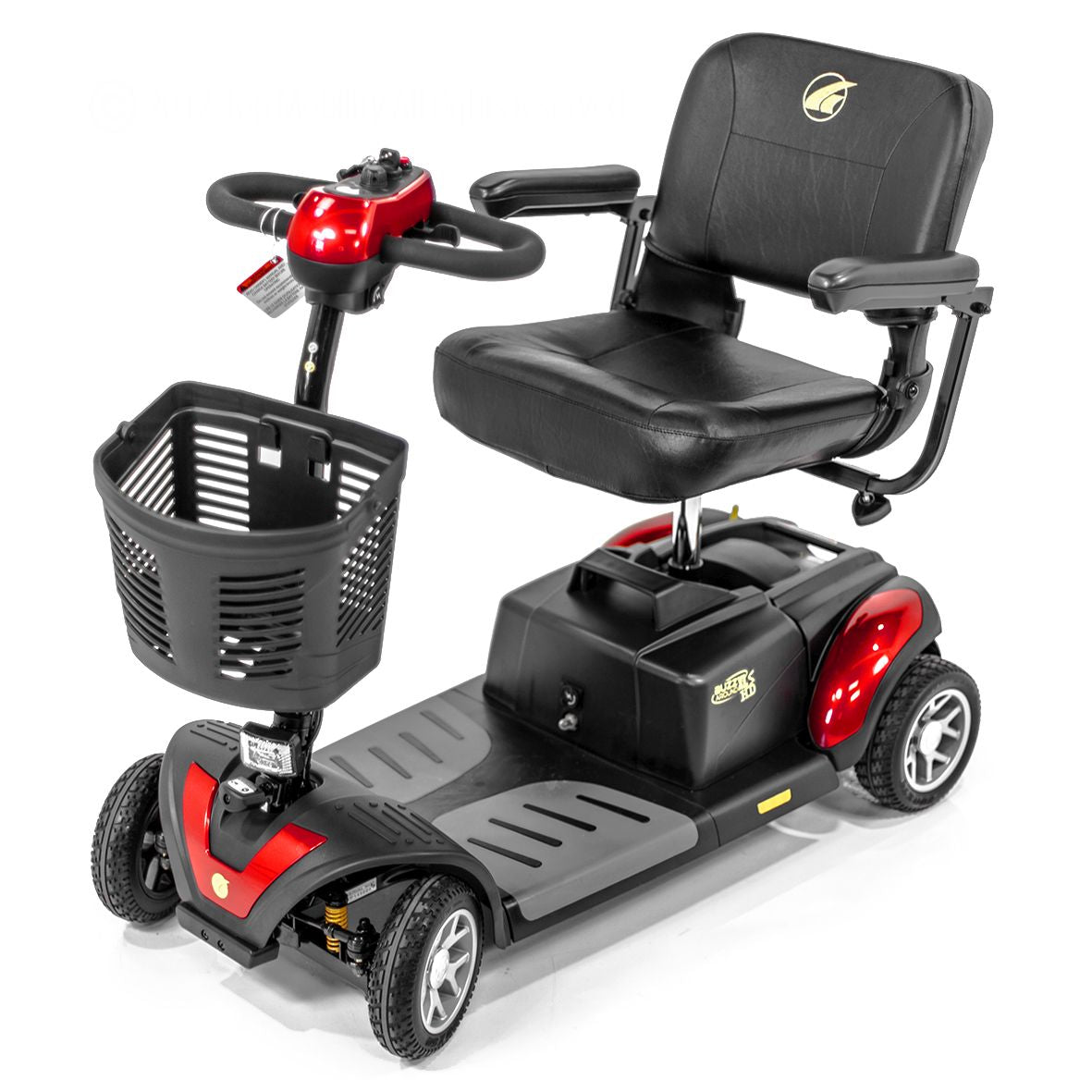

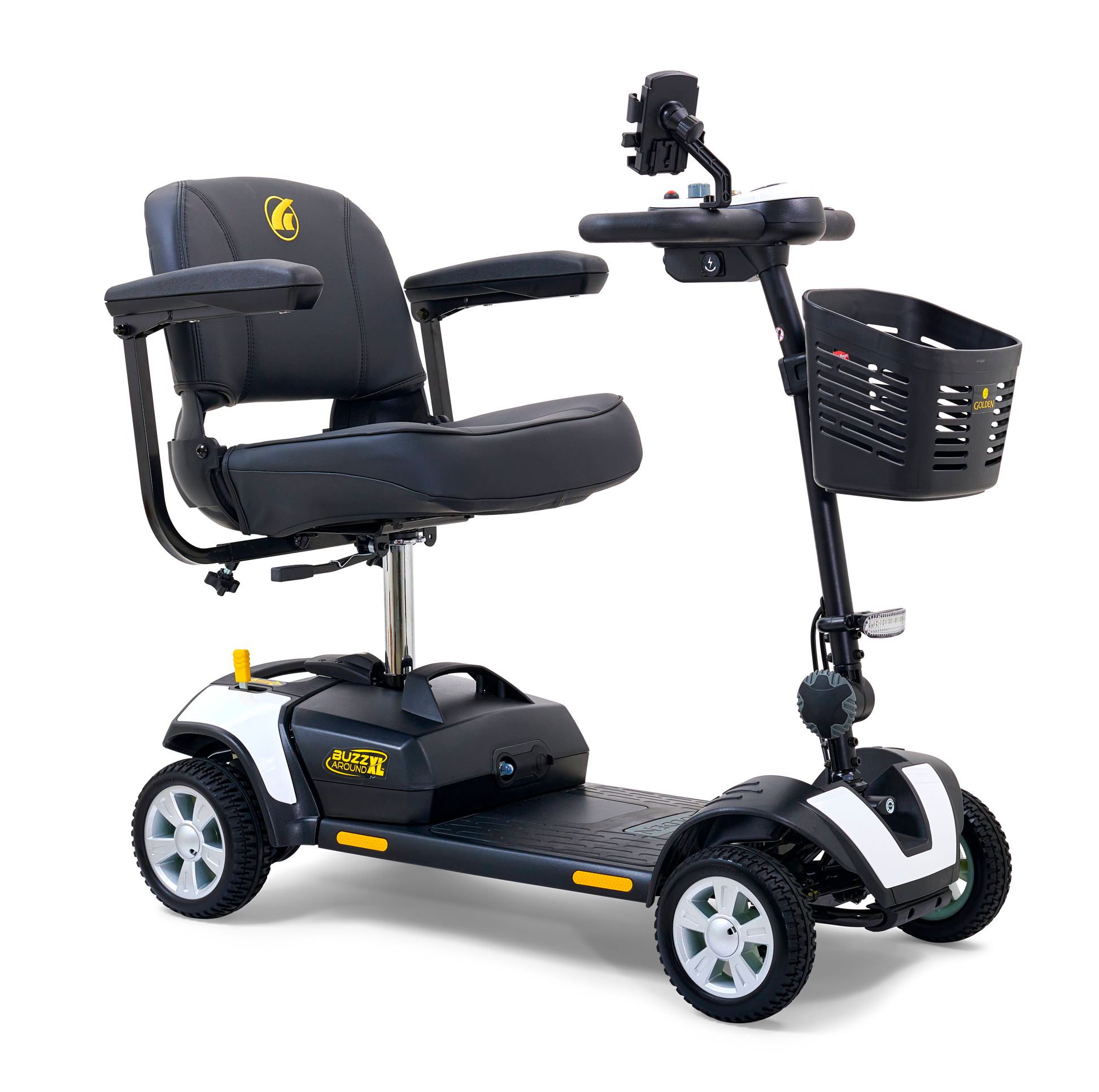

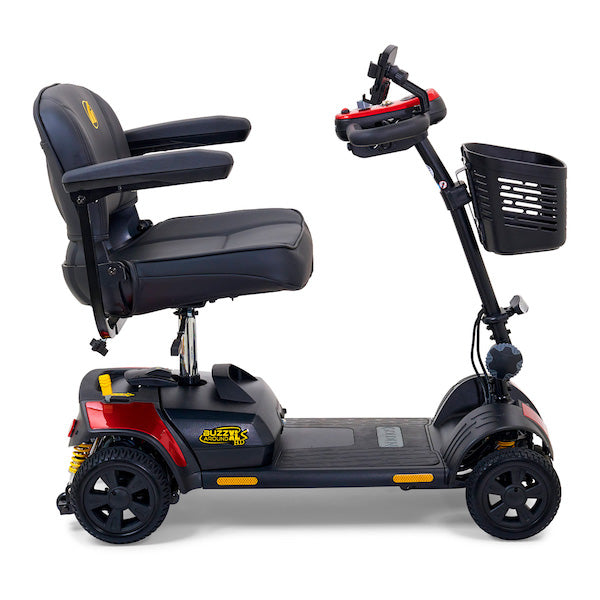

Golden GB124A-SHZ-Buzzaround XL 4 Wheel Heavy Duty Full Suspension Travel Mobility Scooter

Golden Buzzaround XL GB124A-SHZ Mobility Scooter Features:

• Peace of mind 1 year in home labor warranty included with purchase
• Increased weight capacity up to 325 lbs.
• Large 22 Amp hour batteries standard

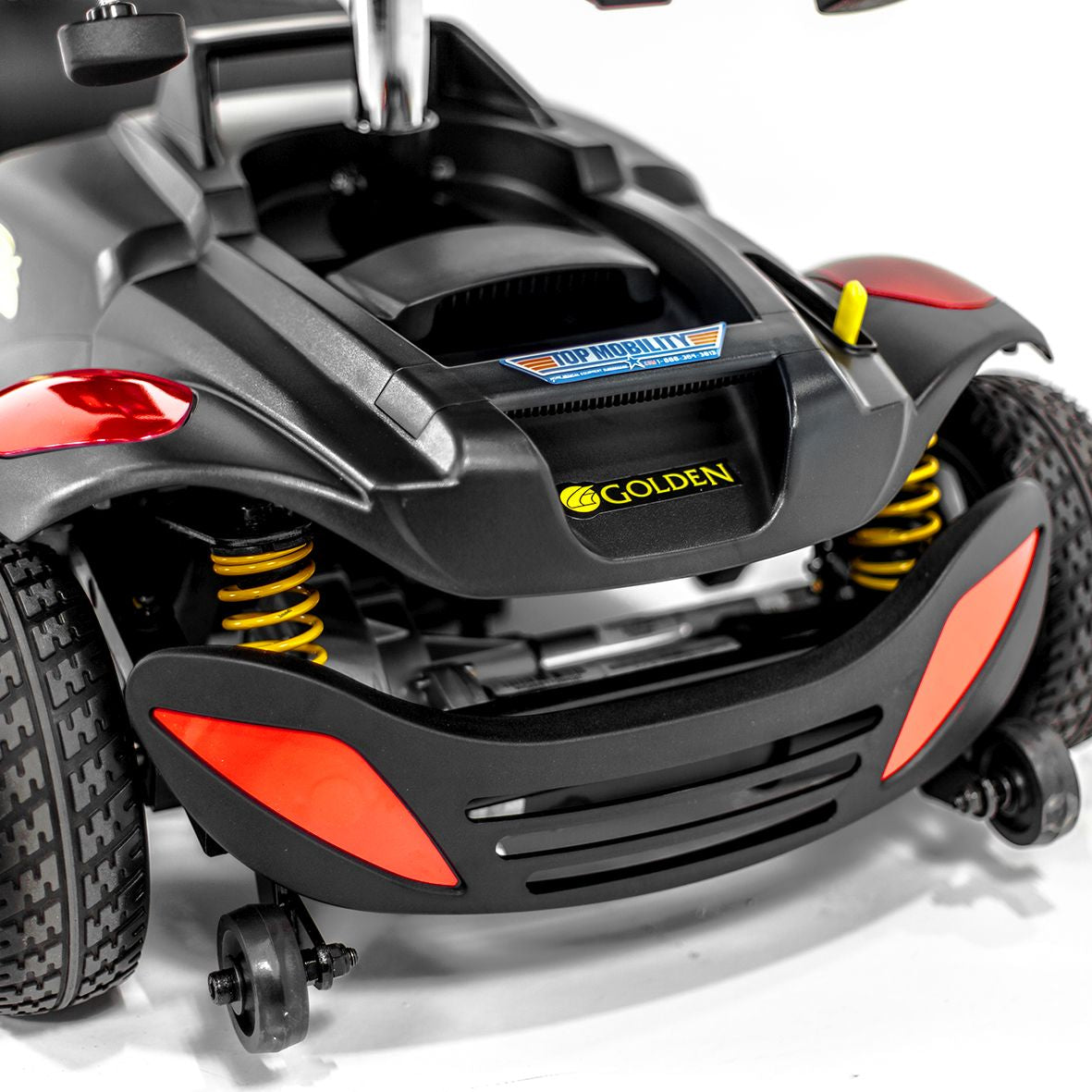

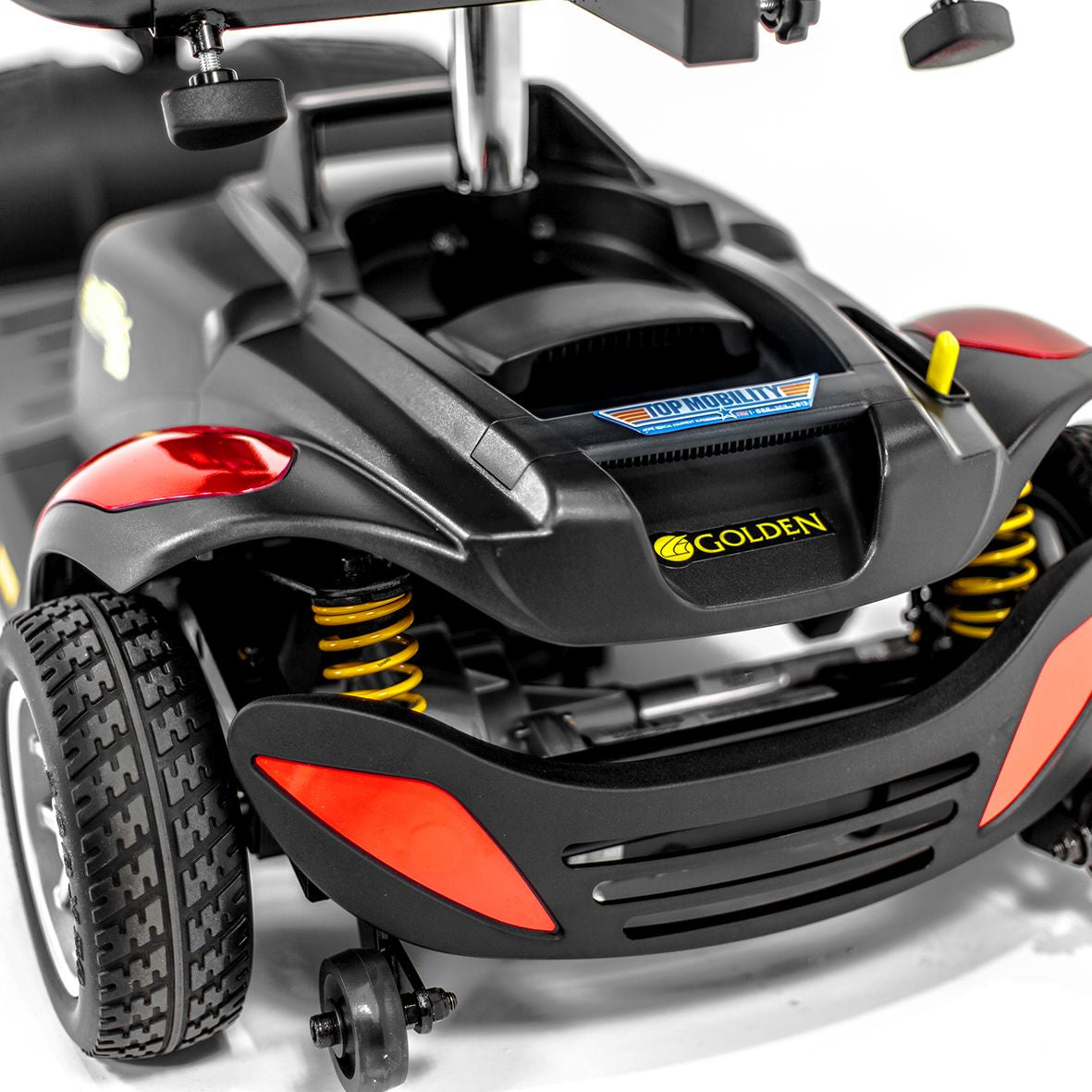

• NEW Comfort Spring Suspension for a smoother ride

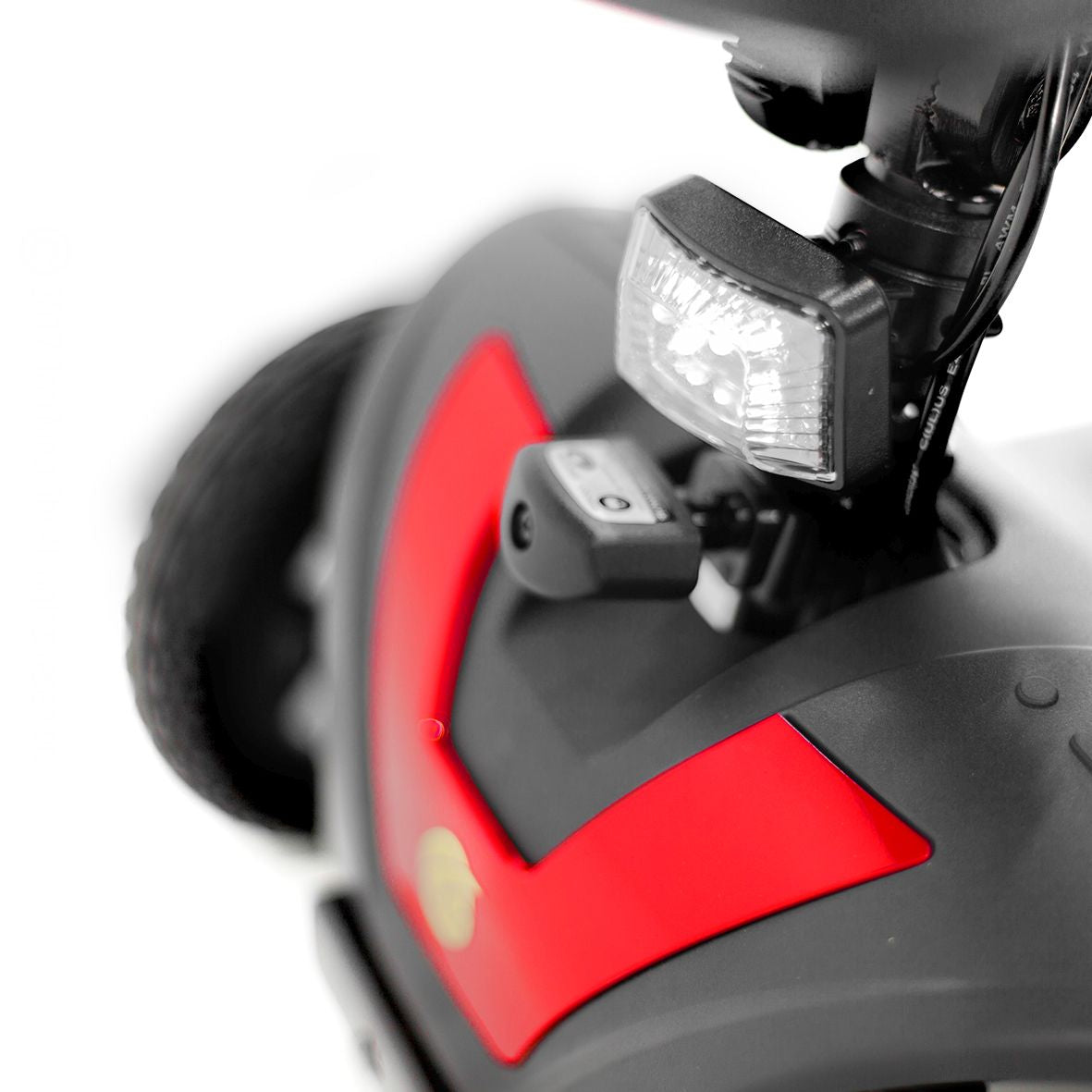

• Ultra Bright LED headlight standard
• 4 Mph Max Speed (depending on rider)
• 9 Miles Max Range (depending on rider)
• Breakapart Design (Heaviest Piece Is 40 Lbs.)
• FDA Class II Medical Device

Owner's Manual (English)

Warranty Insert

Brochure

Battery Charging Procedure

Weight Capacity:	325 lbs
Drive Wheels:	Rear
Maximum Speed:	4 mph
Operating Range:	14 miles
Overall Floorboard Length (Legroom):	19" from battery box to tiller
Under Deck Clearance:	3"
Turning Radius:	47"
Batteries:	(2) 22AH standard
Colors:	Red, Blue
Freewheel Mode:	Yes
Electronic Speed Control:	Yes
Electro-Mechanical Brakes:	Yes
Charger:	Off-board
Controller:	50 Amp Dynamic, R-Series
Length:	41.5"
Width:	21.5"
Height (ground to top of back of seat):	33" - 35"
Ground to Top of Seat:	21" - 23"
Ground to Top of Deck:	4.75"
Deck to Top of Seat:	16" - 18"
Number of Seat Height Positions:	3
Size of Increments:	1"
Front Axle to Rear Axle:	32"
Total Weight of Unit (assembled):	122 lbs
Weight of Front Half:	43 lbs
Weight of Rear Half:	28 lbs
Weight of Seat w/ Armrests:	22 lbs
Weight of Batteries:	29 lbs per pack
Tires:	Solid
Front Tires:	8"
Rear Tires:	8"
Rear Anti-Tip Wheels:	2"
Standard Seat:	18" x 16" Stadium Style, Black Vinyl
Standard Seat Back Height (no headrest):	16"
Optional Seat:	20" x 18 Stadium Style, Black Vinyl
Optional Seat Back Height (no headrest):	16"

Frame: Lifetime

Drive Train: 2 Years

Electronics: 2 Years

Batteries: 1 Year*

Click here for more warranty information or see "Warranty" under the Documents tab.

*If you want to file a warranty claim on the batteries, you will need to have a valid load test reading showing that the batteries are faulty.

This unit is delivered via common LTL carrier on a pallet. This will be left curbside for standard delivery. Some carriers schedule delivery appointments.

The following conditions apply:

This item has a 20% Restocking Fee.

You are responsible for the cost of return shipping.

The product must be new and unused and in the original packaging.

All accessories and items that were included in the box must be returned.

Items canceled after the product has already shipped will be considered a return.

Delivery and service fees are not refundable.

Custom-made by the manufacturer to suit your specific needs are non-returnable.

An RA (Return Authorization) from Top Mobility must be requested within 15 days of delivery.

The item must be shipped back to the address noted on the RA within 15 days.

Once approved, your refund, minus any restocking and freight fees, will be issued to your original form of payment.

If you have questions about this item please call a Top Mobility Customer Service Expert at 1-888-364-3813.
