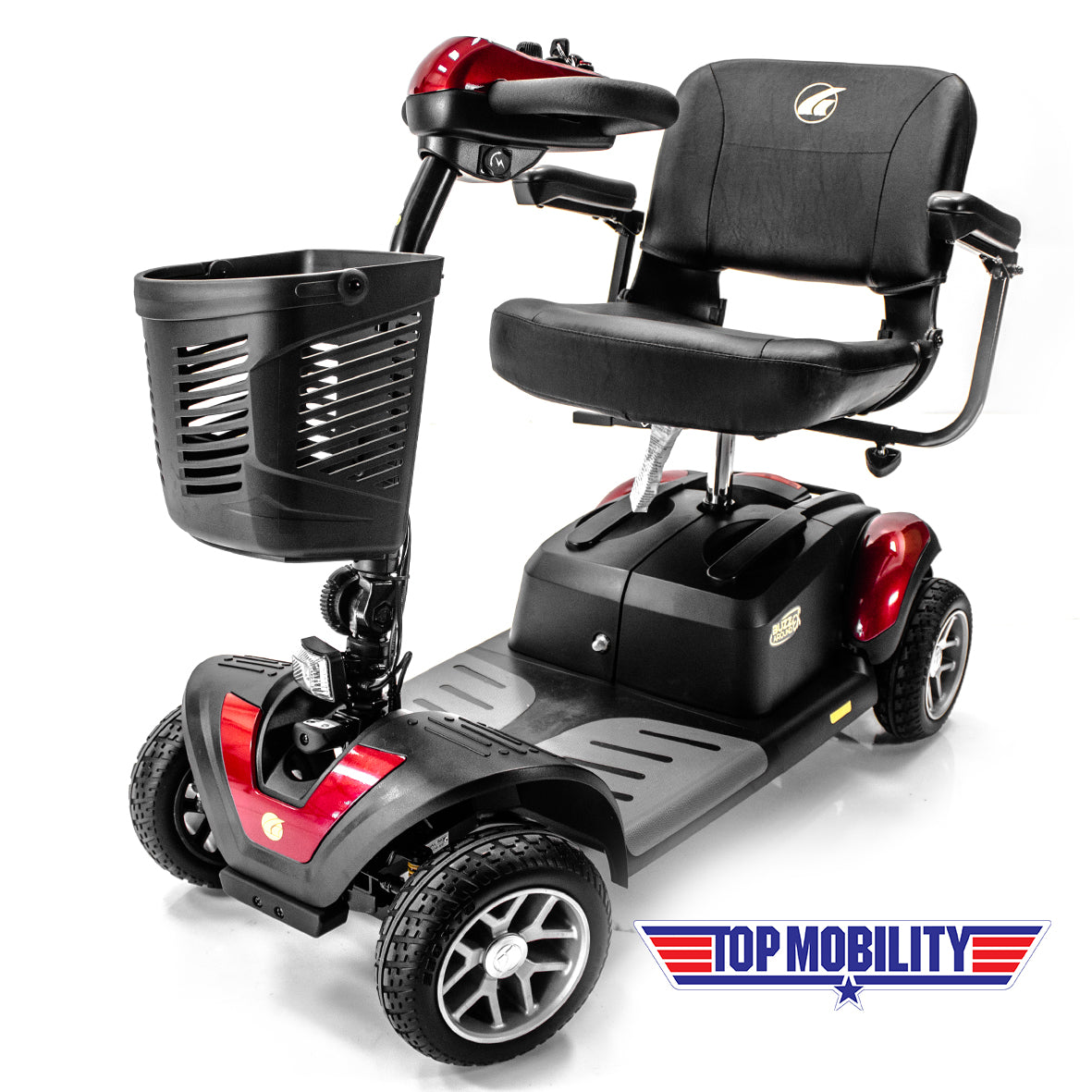

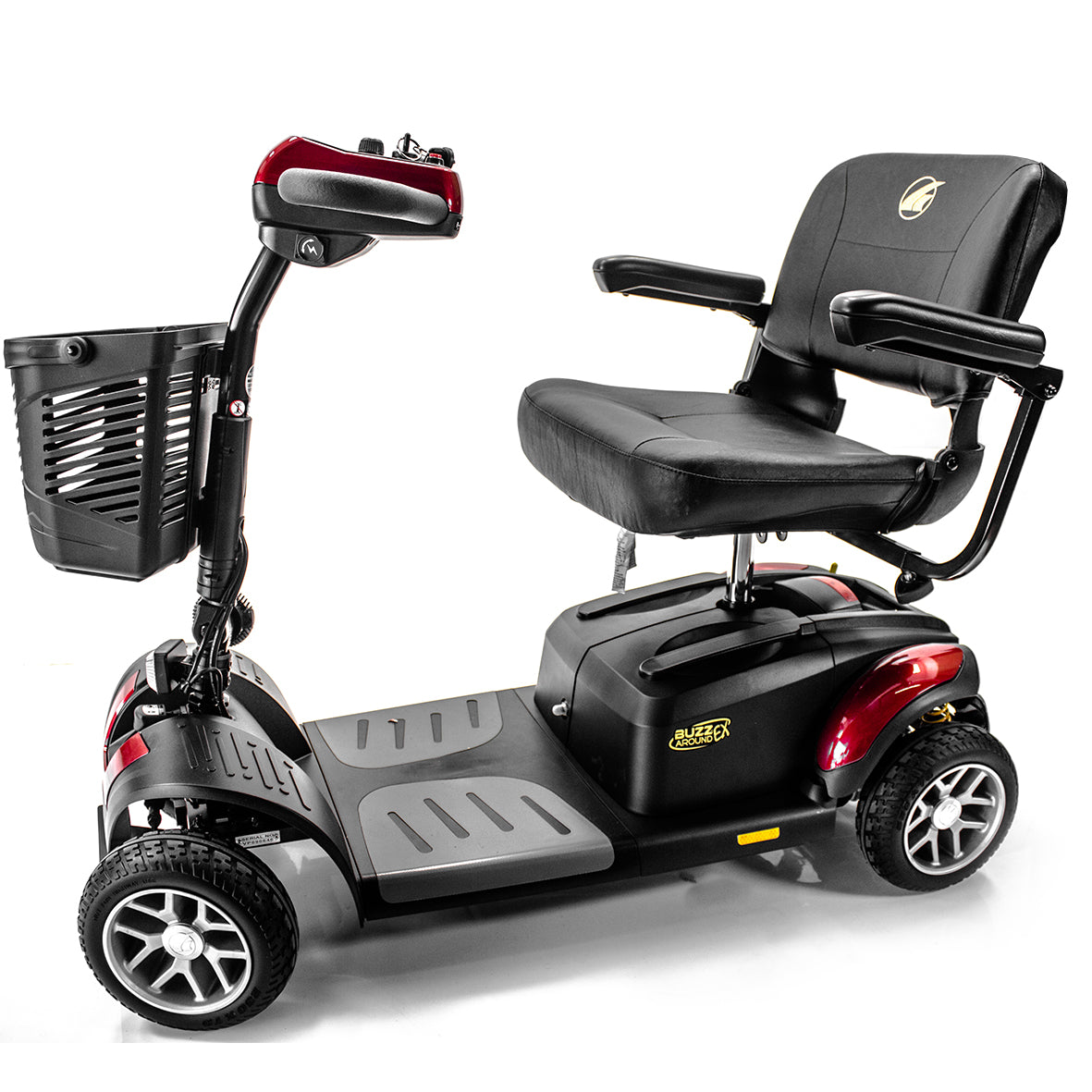

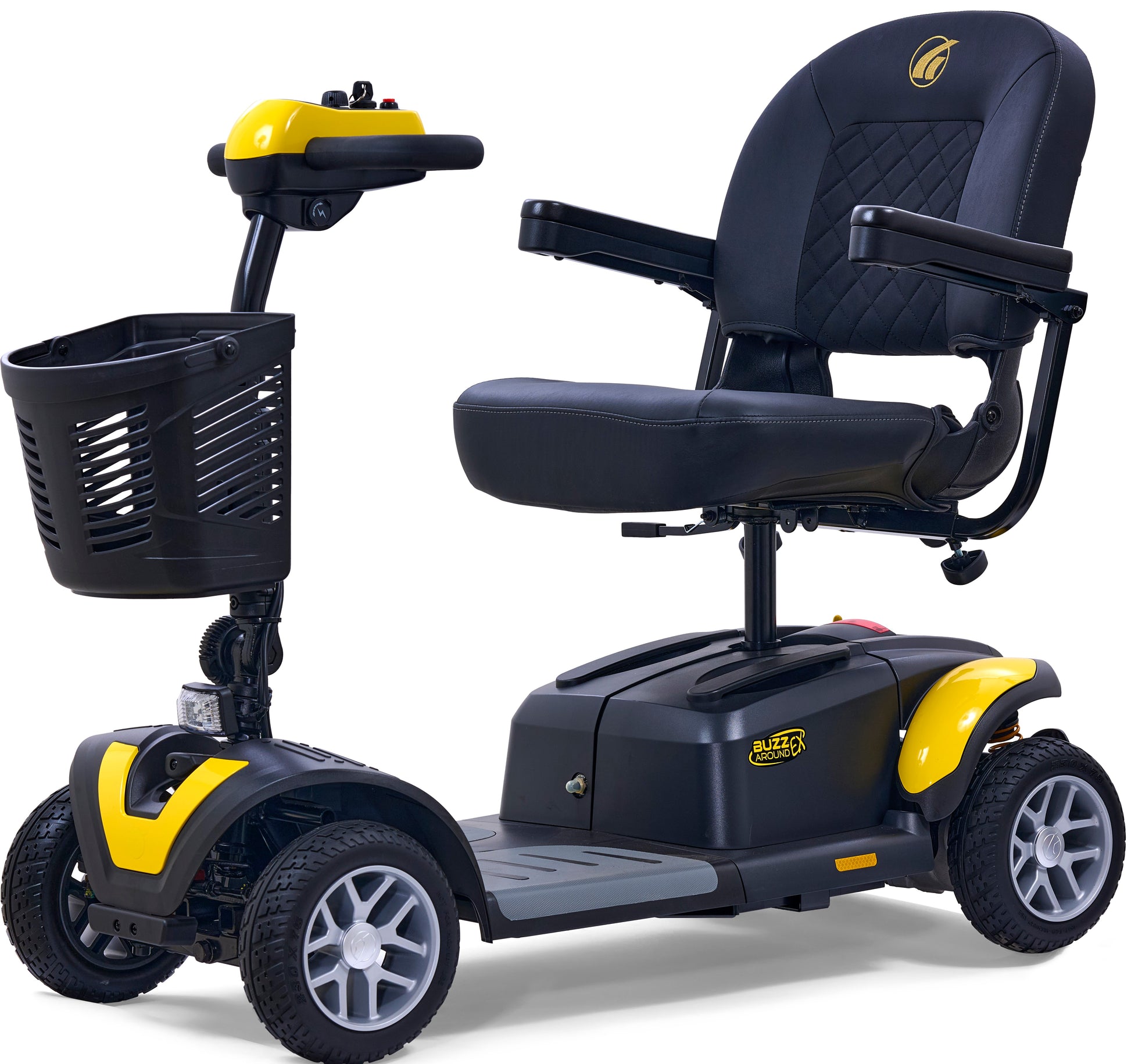

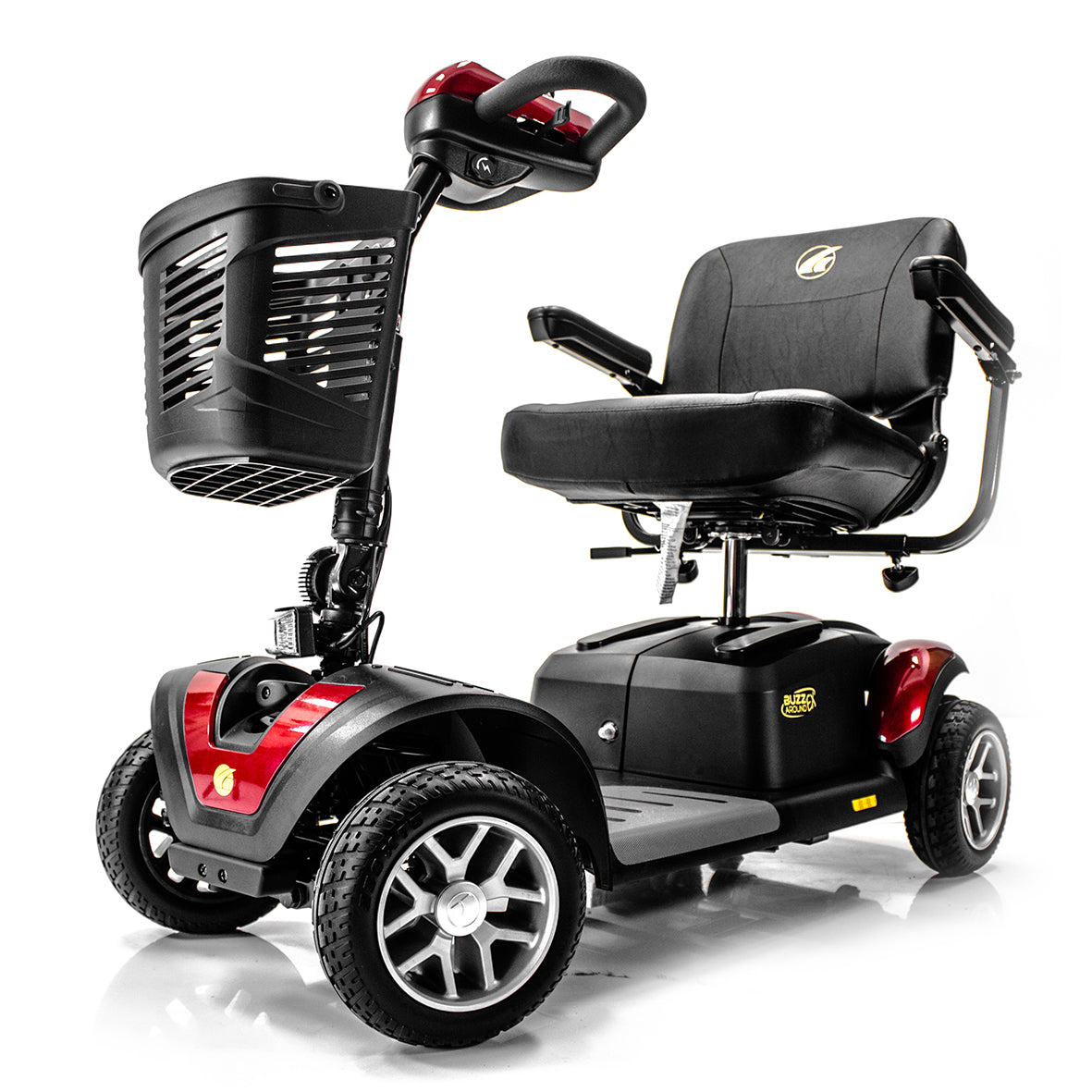

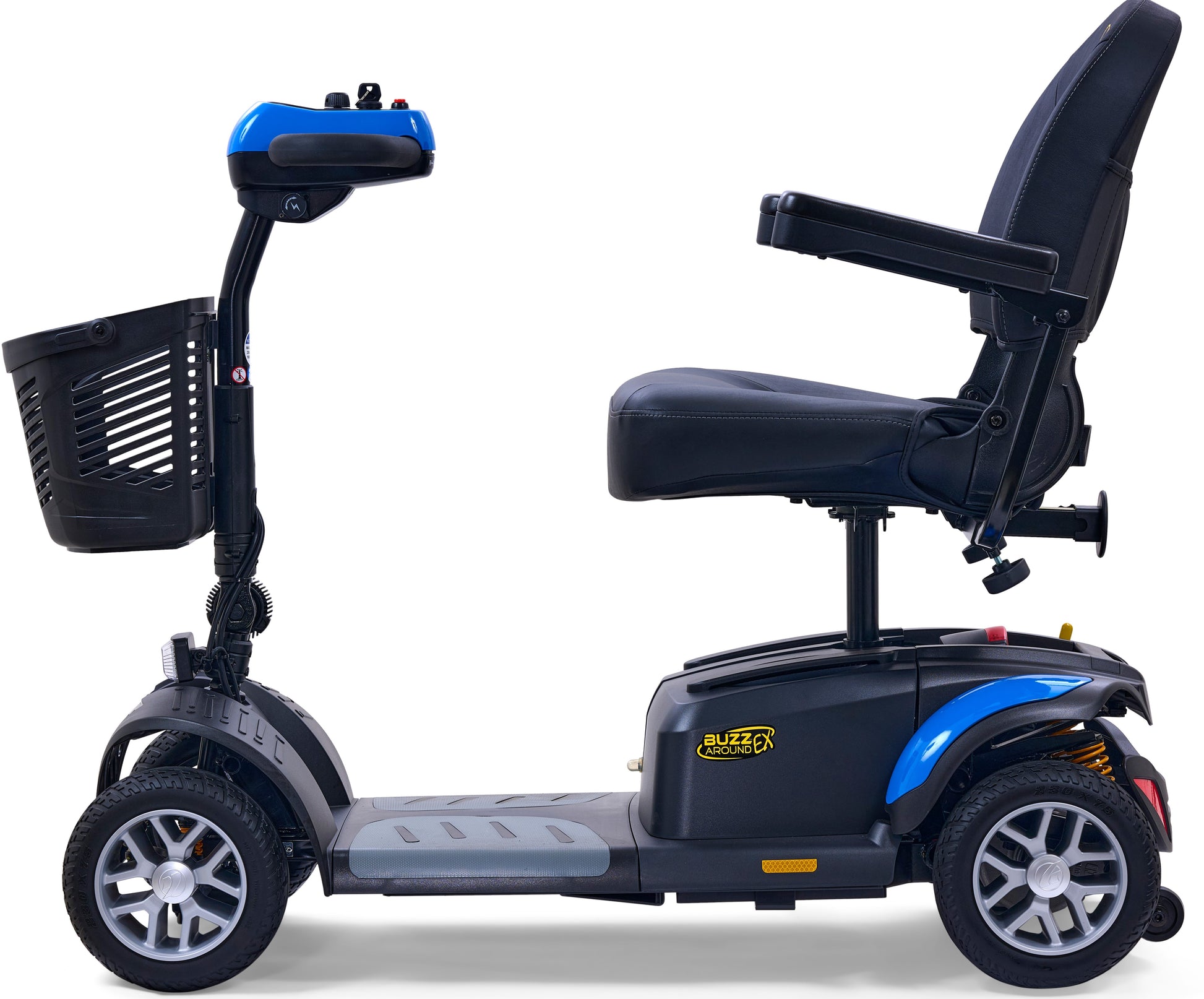

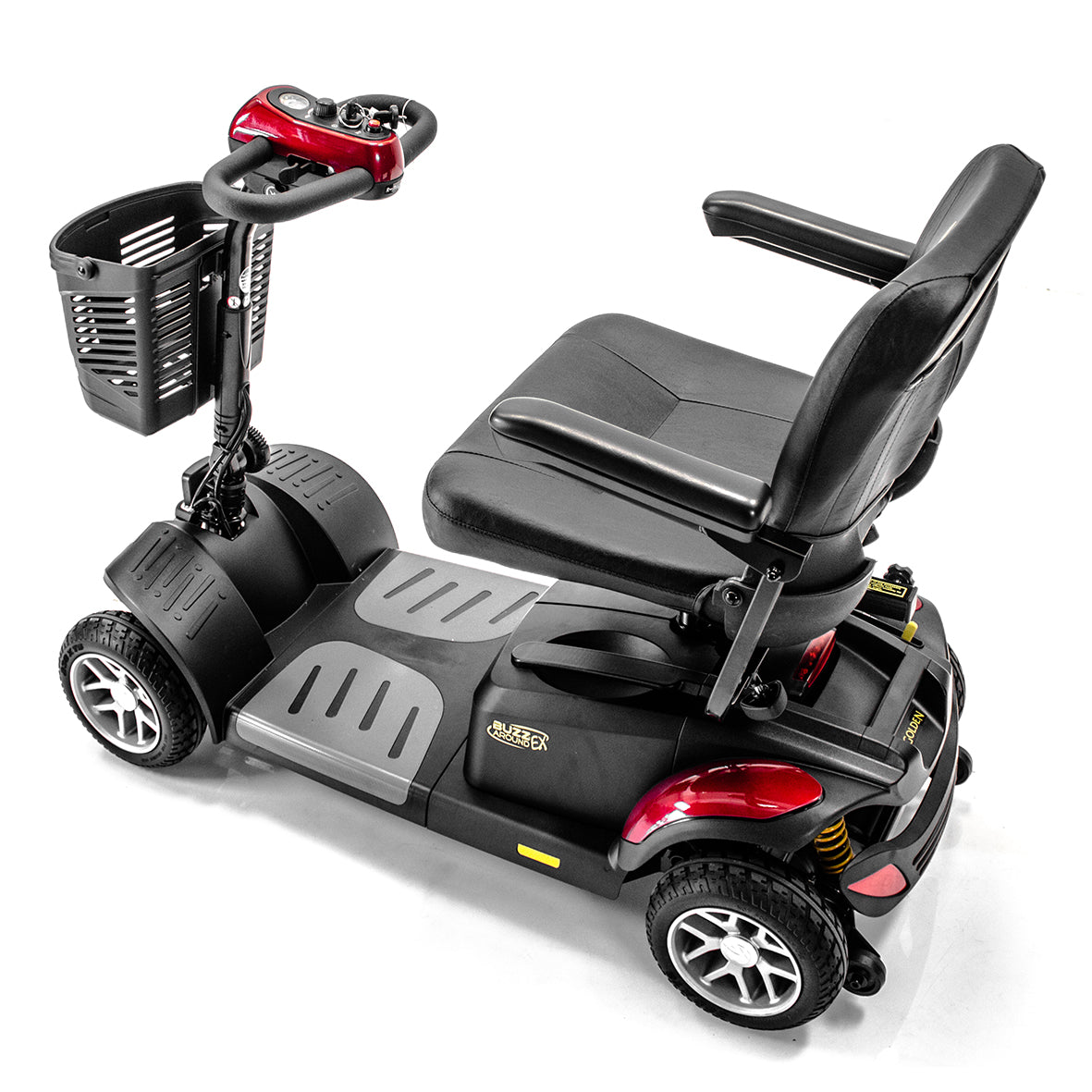

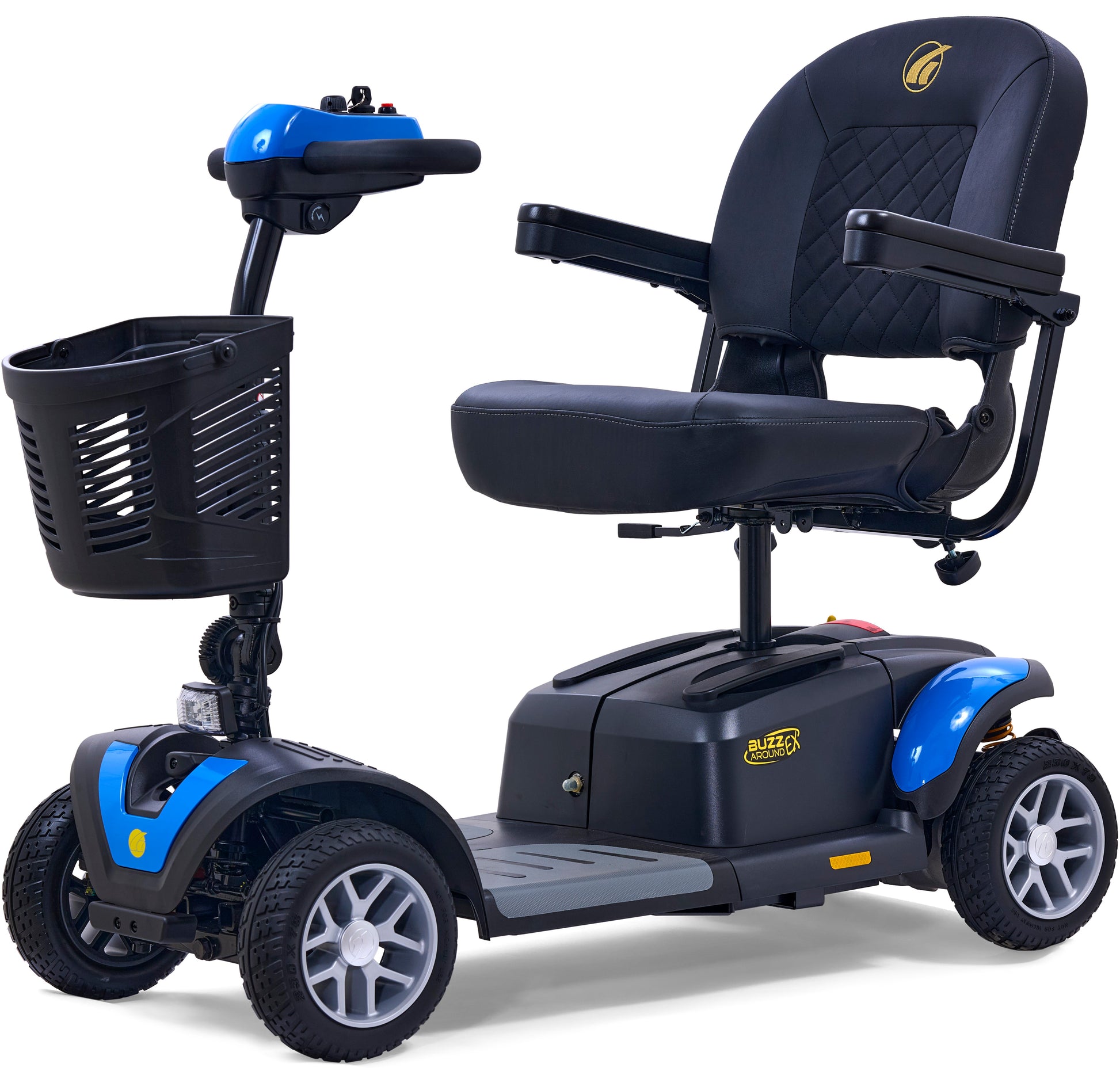

Golden Buzzaround EX GB148- 4 Wheel Travel Mobility Scooter

Golden Buzzaround EX GB148 Mobility Scooter Features:

• Peace of mind 1 year in home labor warranty included with purchase
• U1 batteries for maximum range

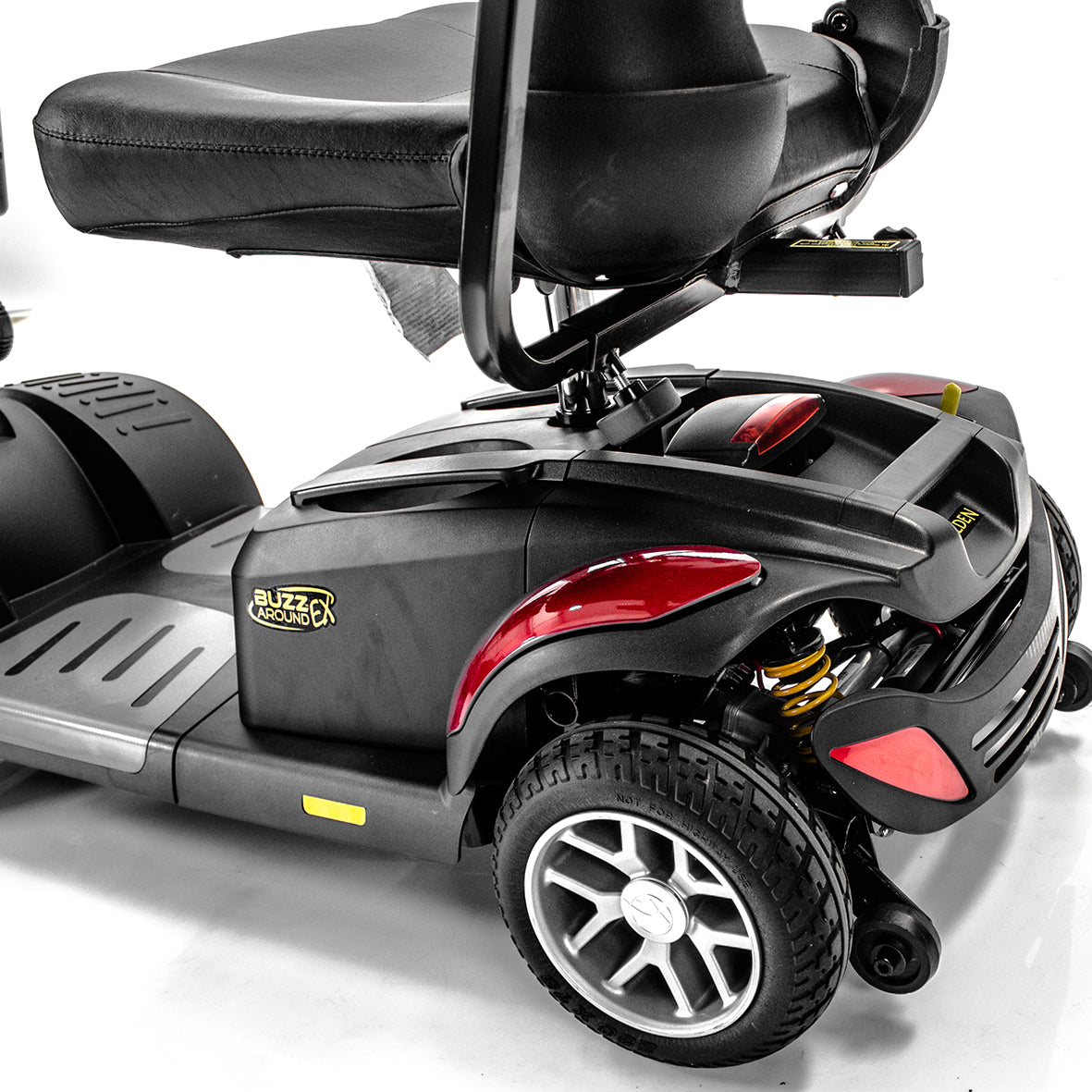

• Smoother ride - Comfort Spring Suspension

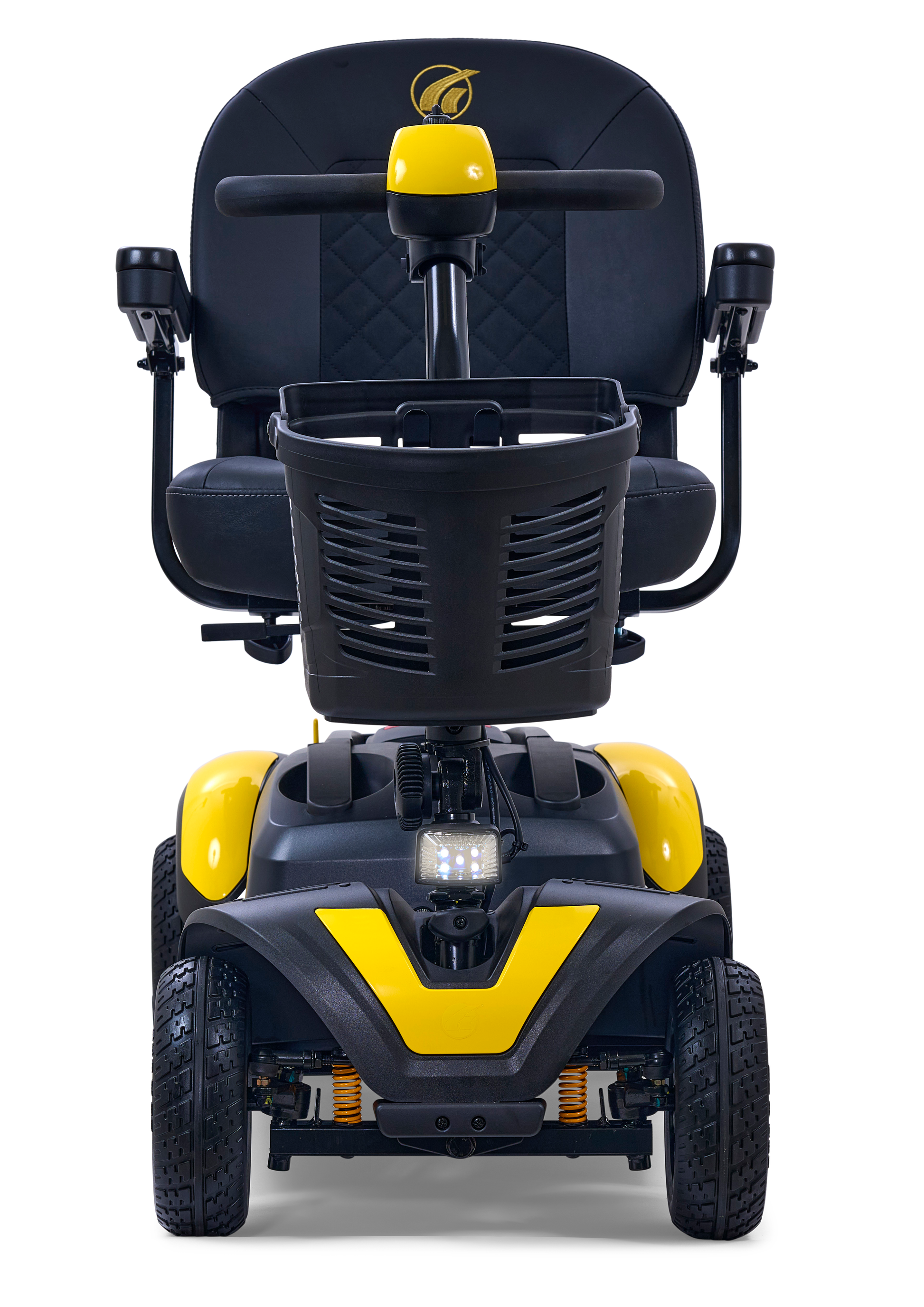

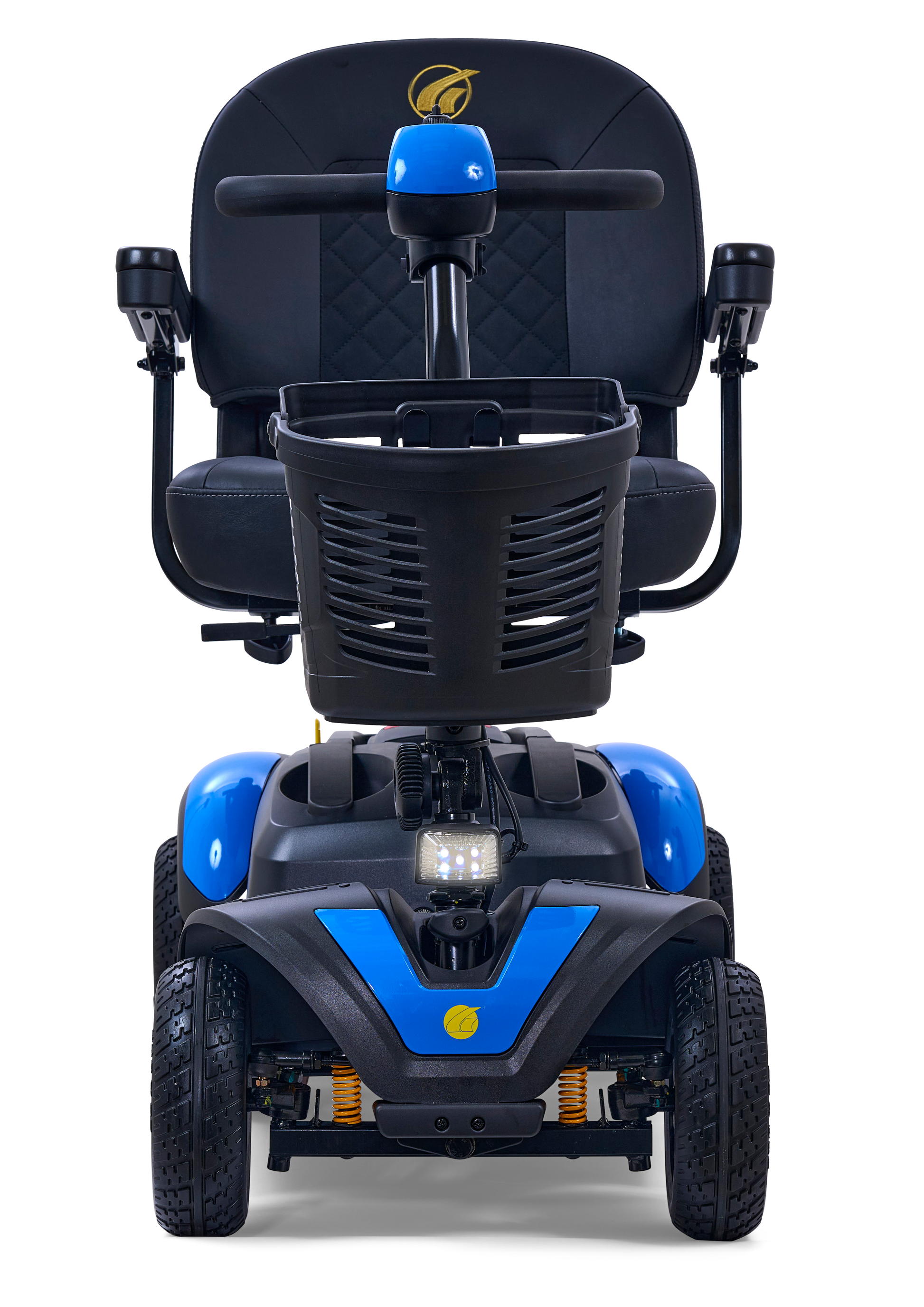

• Ultra bright LED headlight and taillight
• Full size yet portable and easy to disassemble
• 350lb. weight capacity
• Max speed 5 mph (depending on rider)
• Up to 18 miles per charge (depending on rider)

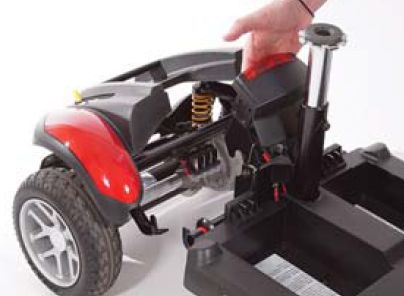

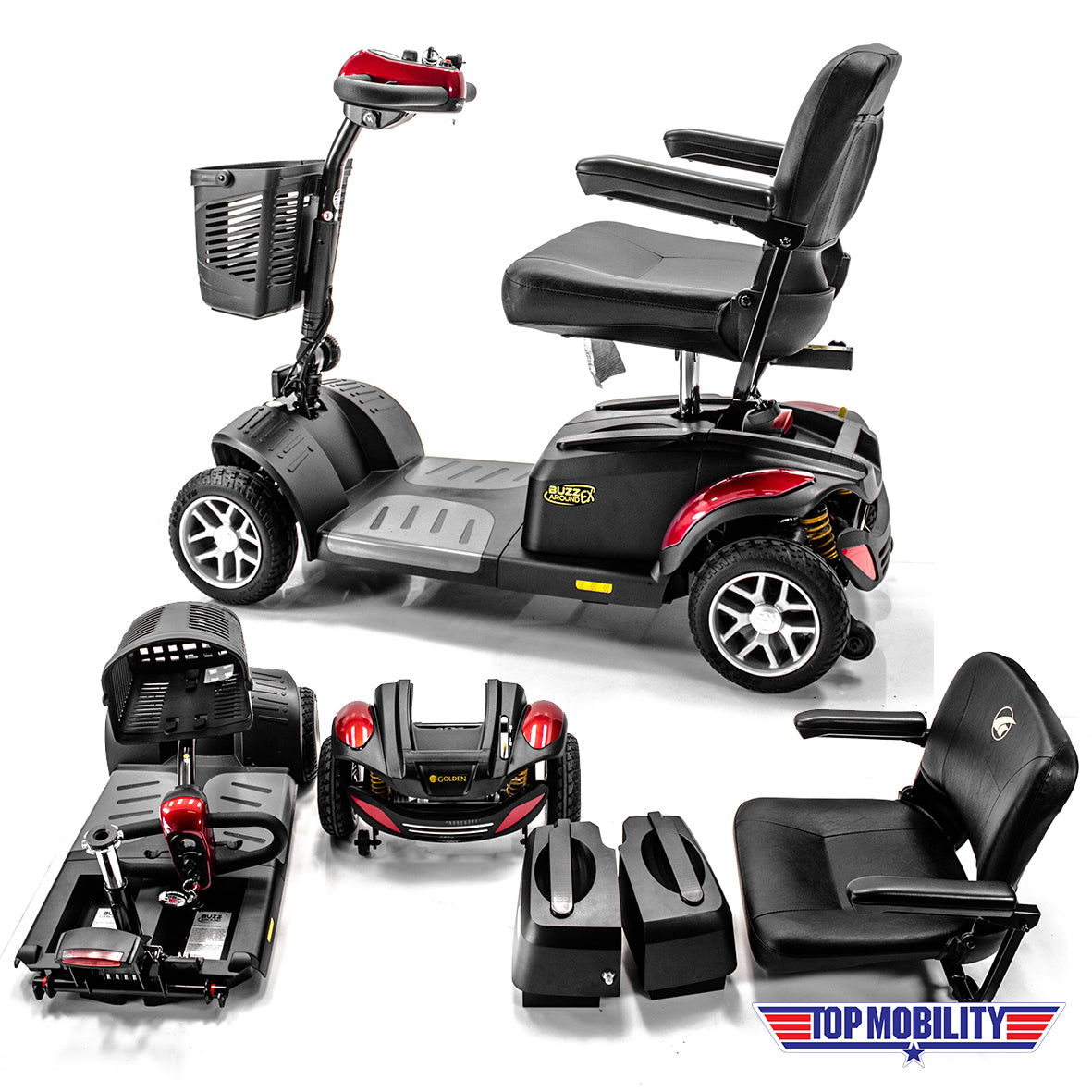

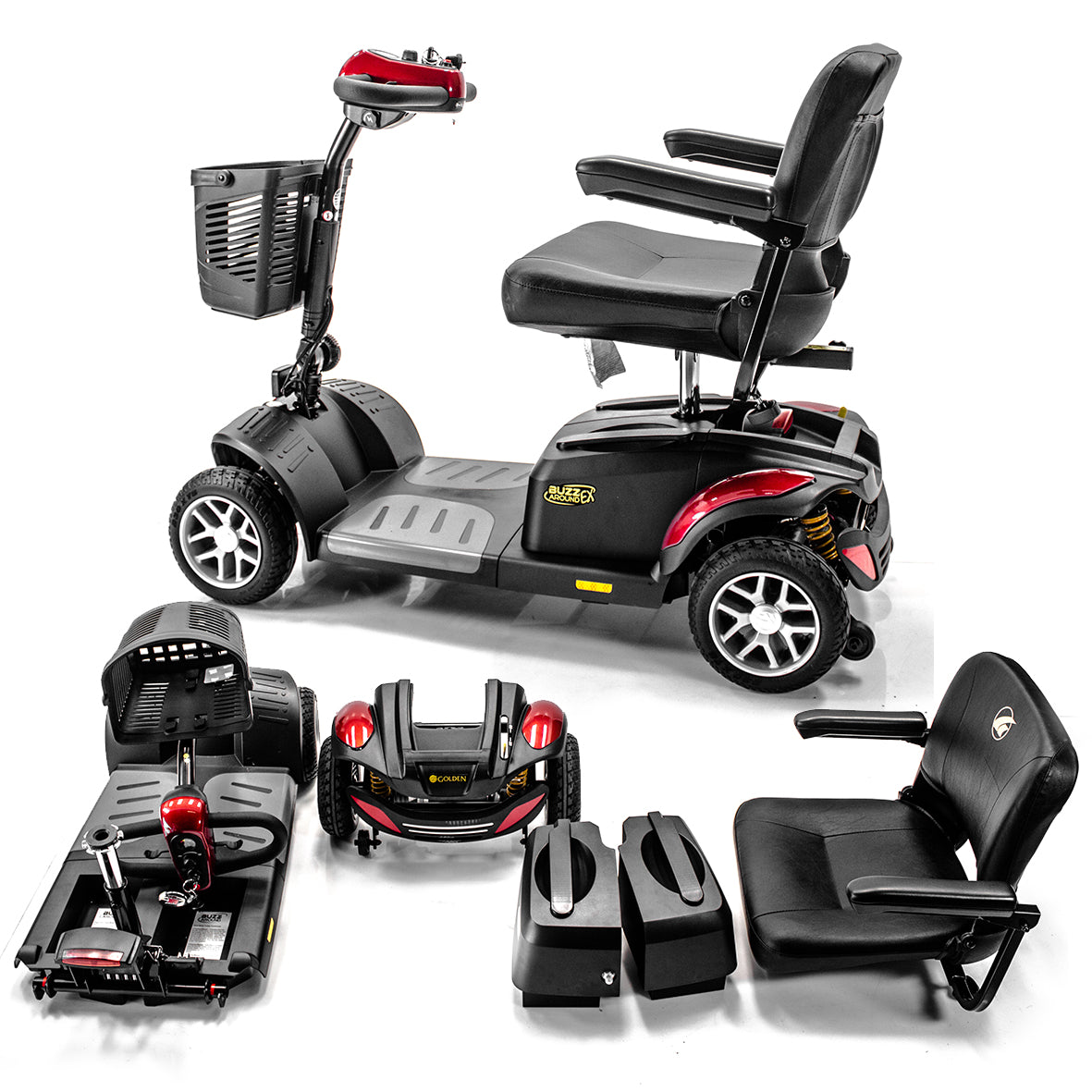

• Break apart design-heaviest piece 53lbs.
• FDA Class II Medical Device

Owner's Manual (English)

Brochure

Battery Charging Procedure

Warranty Insert

Weight Capacity	350 lbs
Drive Wheels	Rear
Maximum Speed	5 mph
Operating Range	up to 18 miles
Overall Floorboard Length (Legroom):	19.5" from battery box to tiller
Under Deck Clearance	4"
Turning Radius	56"
Batteries	2-U1
Colors	Red, Blue
Freewheel Mode	Yes
Electronic Speed Control	Yes
Electro-Mechanical Brakes	Yes
Charger	Off-board
Controller	90 Amp Dynamic, R-Series
Length	44"
Width	22"
Height (ground to top of back of seat)	35" - 37"
Ground to Top of Seat	22.75" - 24.75"
Ground to Top of Deck	6.75"
Deck to Top of Seat	16" - 18"
Number of Seat Height Positions	3
Size of Increments	1"
Front Axle to Rear Axle	33.8"
Total Weight of Unit (assembled)	155 lbs
Weight of Front Half	53 lbs
Weight of Rear Half	30 lbs
Weight of Seat w/ Armrests	23 lbs

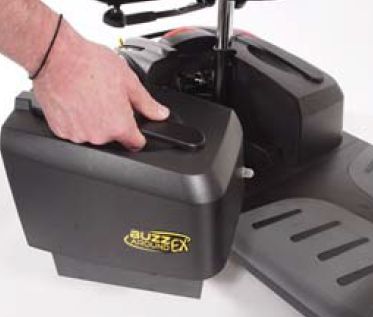

Weight of Batteries	24 lbs per pack
Tires	Solid
Front Tires	9"
Rear Tires	9"
Rear Anti-Tip Wheels	2"
Standard Seat	18" x 16" Stadium Style, Black Vinyl
Standard Seat Back Height (no headrest)	16"
Optional Seat	20" x 18 Stadium Style, Black Vinyl
Optional Seat Back Height (no headrest)	16"

Frame: Lifetime

Drive Train: 2 Years

Electronics: 2 Years

Batteries: 1 Year*

Click here for more warranty information or see "Warranty" under the Documents tab.

*If you want to file a warranty claim on the batteries, you will need to have a valid load test reading showing that the batteries are faulty.

This unit is delivered via common LTL carrier on a pallet. This will be left curbside for standard delivery. Some carriers schedule delivery appointments.

The following conditions apply:

This item has a 20% Restocking Fee.

You are responsible for the cost of return shipping.

The product must be new and unused and in the original packaging.

All accessories and items that were included in the box must be returned.

Items canceled after the product has already shipped will be considered a return.

Delivery and service fees are not refundable.

Custom-made by the manufacturer to suit your specific needs are non-returnable.

An RA (Return Authorization) from Top Mobility must be requested within 15 days of delivery.

The item must be shipped back to the address noted on the RA within 15 days.

Once approved, your refund, minus any restocking and freight fees, will be issued to your original form of payment.

If you have questions about this item please call a Top Mobility Customer Service Expert at 1-888-364-3813.
