Healthline Tilt-in-Space Tub Slider Bathing System

Sku: HL-TILT-TUBSLIDE
Starting at: $2,295.00 USD
Skip to product information
1 of 5
Regular price $2,295.00
Shipping calculated at checkout.
  Lease to own   Pay as low as $/week
This product usually ships in 3-7 business days.

Accepted Payments

Payment methods
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Healthline Tilt-Tubslide Slider Bathing System Features:

  • Tilting Seat/Backrest for comfortable positioning
  • Highest grade PVC available
  • Great for Spina Bifida (latex free), Muscular Dystrophy, Cerebral Palsy, stroke, heart conditions
  • 2-Part System with rolling chair and stationary unit
  • Setup only takes minutes
  • Many customizable options

Overview

Info

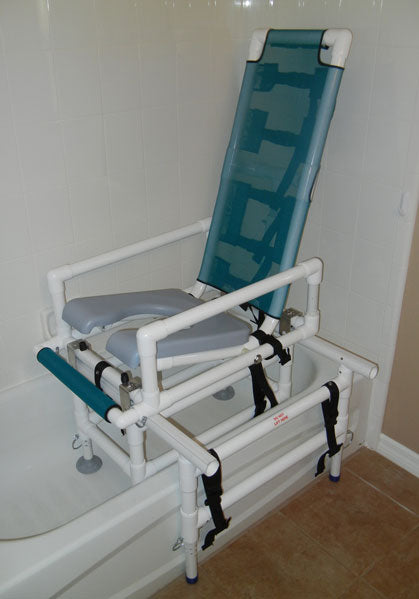

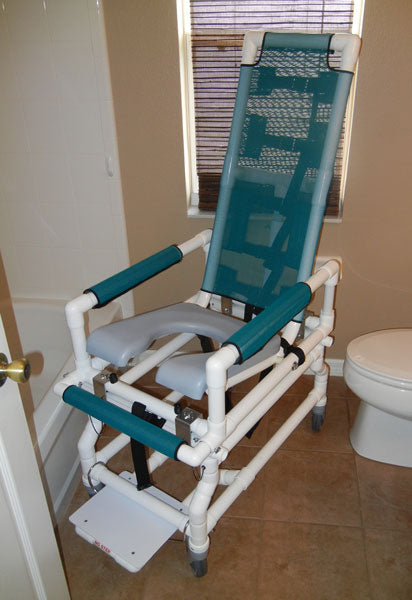

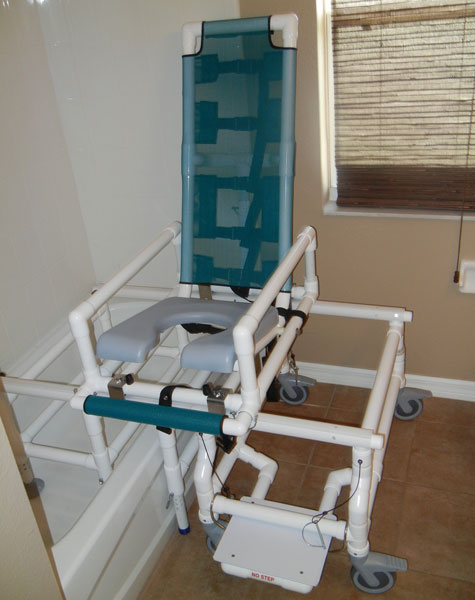

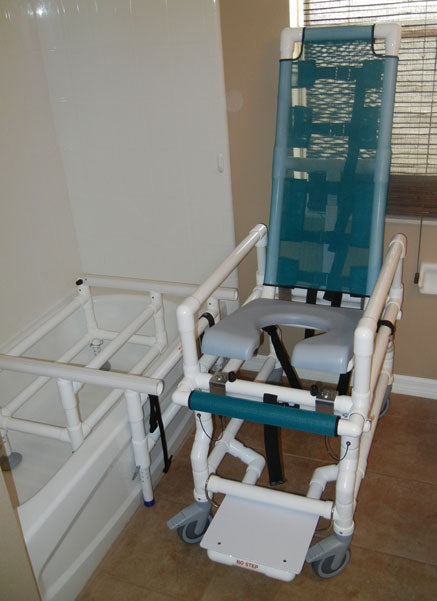

Transfer systems eliminate the need for this and allow the caregivers/parents to shower individuals without them ever leaving the seat. In just a few simple steps you can be giving your loved one a shower without straining your back. Set-up takes only minutes. Medical conditions for which these products can be used: Spina Bifida (latex free), Muscular Dystrophy, Cerebral Palsy, stroke, heart conditions, and many more. How it works: It is a 2 part system. You have the rolling chair and the stationary tub unit. The rolling bath chair/shower chair interlocks with the tub frame, which is stationary in the bath tub. When detached from the tub frame, the rolling chair can be positioned over a standard toilet commode and then without even one transfer from the seat, can be placed next to the bathtub, interlocked to the tub frame, and slid right into the bathtub. After the transfer is made into the tub, the rolling chair can then be removed so the caregiver can help with bathing. When bathing is complete, simply reposition the chair next to the tub, interlock it with the support frame, and slide the bath chair back onto the rolling chair. Once locked in place, the rolling shower chair can then be rolled away from the bathroom. These products are all made out of the highest grade of medial PVC and this allows us to custom manufacture your system to any way you wish.

Tilt-in-Space Bathing System
Standard
Narrow
Wide
Extra Wide
Between Arms
17.5'
16.5'
20'
22'
Backrest Height-Customer Specify
24' - 36'
24' - 36'
24' - 36'
24' - 36'
Over Width
21.5'
20.5'
23'
25'
Overall Length Seat Upright
32'
32'
32'
32'
Overall Length Seat at Full Tilt (w/36' backrest)
42'
42'
42'
42'
Seat Depth
18'
18'
18'
18'
Seat Depth from Seat to Front of Backrest
19.5'
19.5'
19.5'
19.5'
Standard Seat to Floor
24'
24'
24'
24'
Rolling Chassis Overall Length
32'
32'
32'
32'
Backrest Angle Upright
15 degrees
15 degrees
15 degrees
15 degrees
Backrest Angle at Full Tilt
35 degrees
35 degrees
35 degrees
35 degrees
Commode Clearance
18.75'
18.75'
18.75'
18.75'
Commode Clearance
200 lbs
200 lbs
300 lbs
300 lbs
Backrest Angle to Seat
110 degrees
110 degrees
110 degrees
110 degrees

Documents

No product documentation available at this time.

Specifications

Tilt-in-Space Bathing System
Standard
Narrow
Wide
Extra Wide
Between Arms
17.5'
16.5'
20'
22'
Backrest Height-Customer Specify
24' - 36'
24' - 36'
24' - 36'
24' - 36'
Over Width
21.5'
20.5'
23'
25'
Overall Length Seat Upright
32'
32'
32'
32'
Overall Length Seat at Full Tilt (w/36' backrest)
42'
42'
42'
42'
Seat Depth
18'
18'
18'
18'
Seat Depth from Seat to Front of Backrest
19.5'
19.5'
19.5'
19.5'
Standard Seat to Floor
24'
24'
24'
24'
Rolling Chassis Overall Length
32'
32'
32'
32'
Backrest Angle Upright
15 degrees
15 degrees
15 degrees
15 degrees
Backrest Angle at Full Tilt
35 degrees
35 degrees
35 degrees
35 degrees
Commode Clearance
18.75'
18.75'
18.75'
18.75'
Commode Clearance
200 lbs
200 lbs
300 lbs
300 lbs
Backrest Angle to Seat
110 degrees
110 degrees
110 degrees
110 degrees

Warranty

Warranty

1-Year Limited Manufacturer Warranty on Parts

2-Year Limited Manufacturer Warranty on the Frame

Shipping / Returns

This unit is delivered via common carrier on a pallet left curbside.

The following conditions apply:
  • This item has a 50% Restocking Fee.
  • You are responsible for the cost of return shipping.
  • The product must be new and unused and in the original packaging unopened.
  • All accessories and items that were included in the box must be returned.
  • Items canceled after the product has already shipped will be considered a return.
  • Delivery and service fees are not refundable.
  • Custom-made by the manufacturer to suit your specific needs are non-returnable.
  • An RA (Return Authorization) from Top Mobility must be requested within 15 days of delivery.
  • The item must be shipped back to the address noted on the RA within 15 days.
  • Once approved, your refund, minus any restocking and freight fees, will be issued to your original form of payment.

  • If you have questions about this item please call a Top Mobility Customer Service Expert at 1-888-364-3813.
    Healthline Tilt-in-Space Tub Slider Bathing System

    $2,295.00 USD
