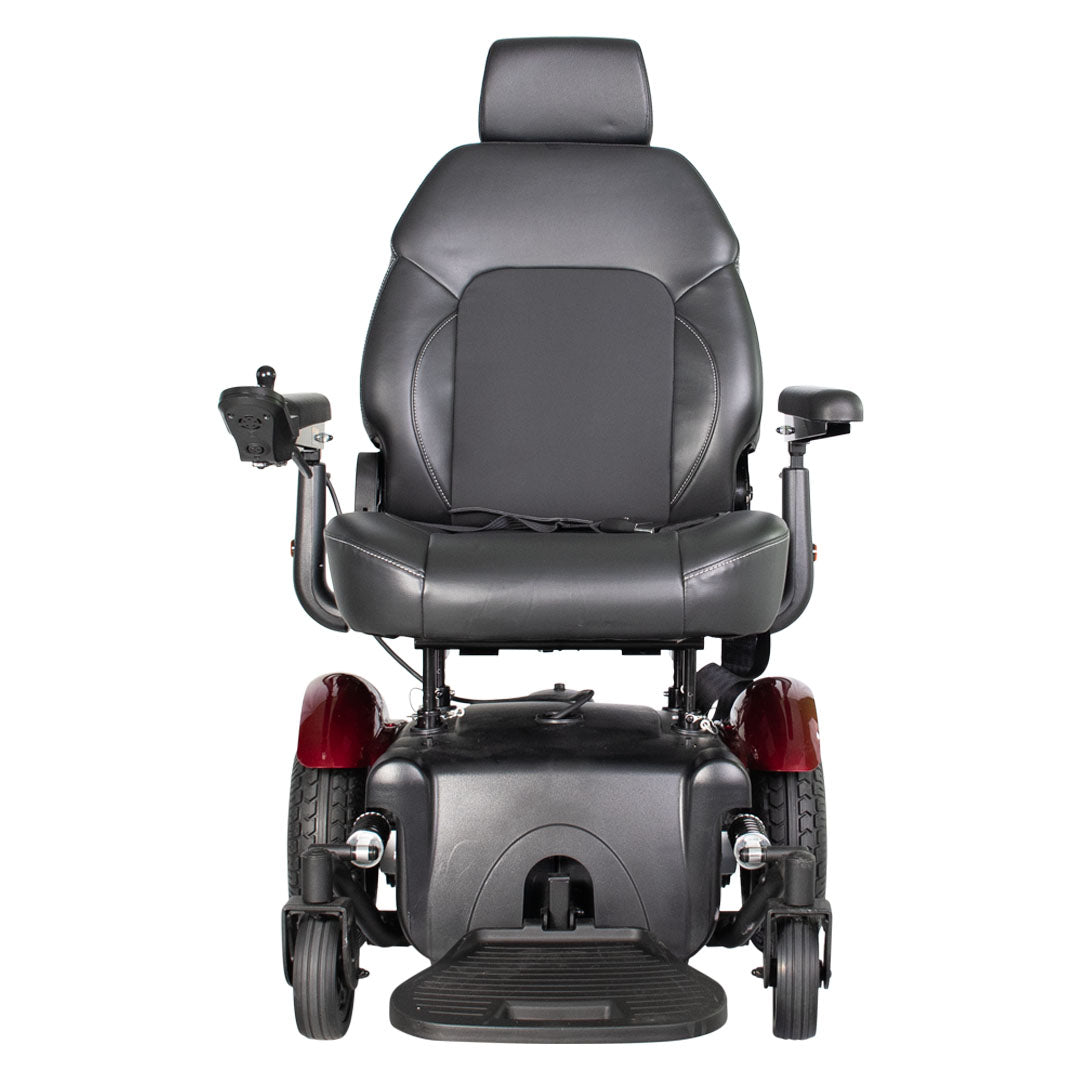

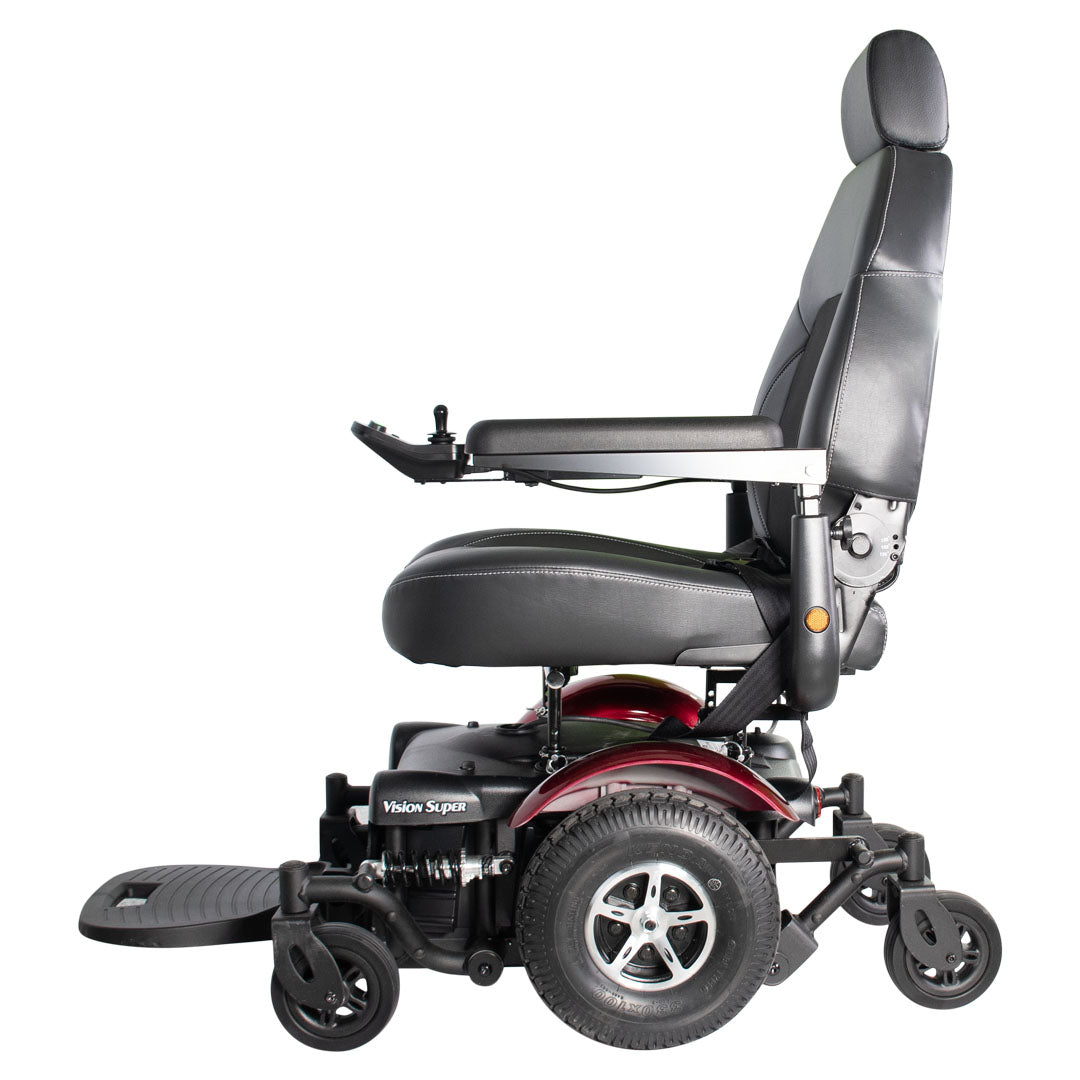

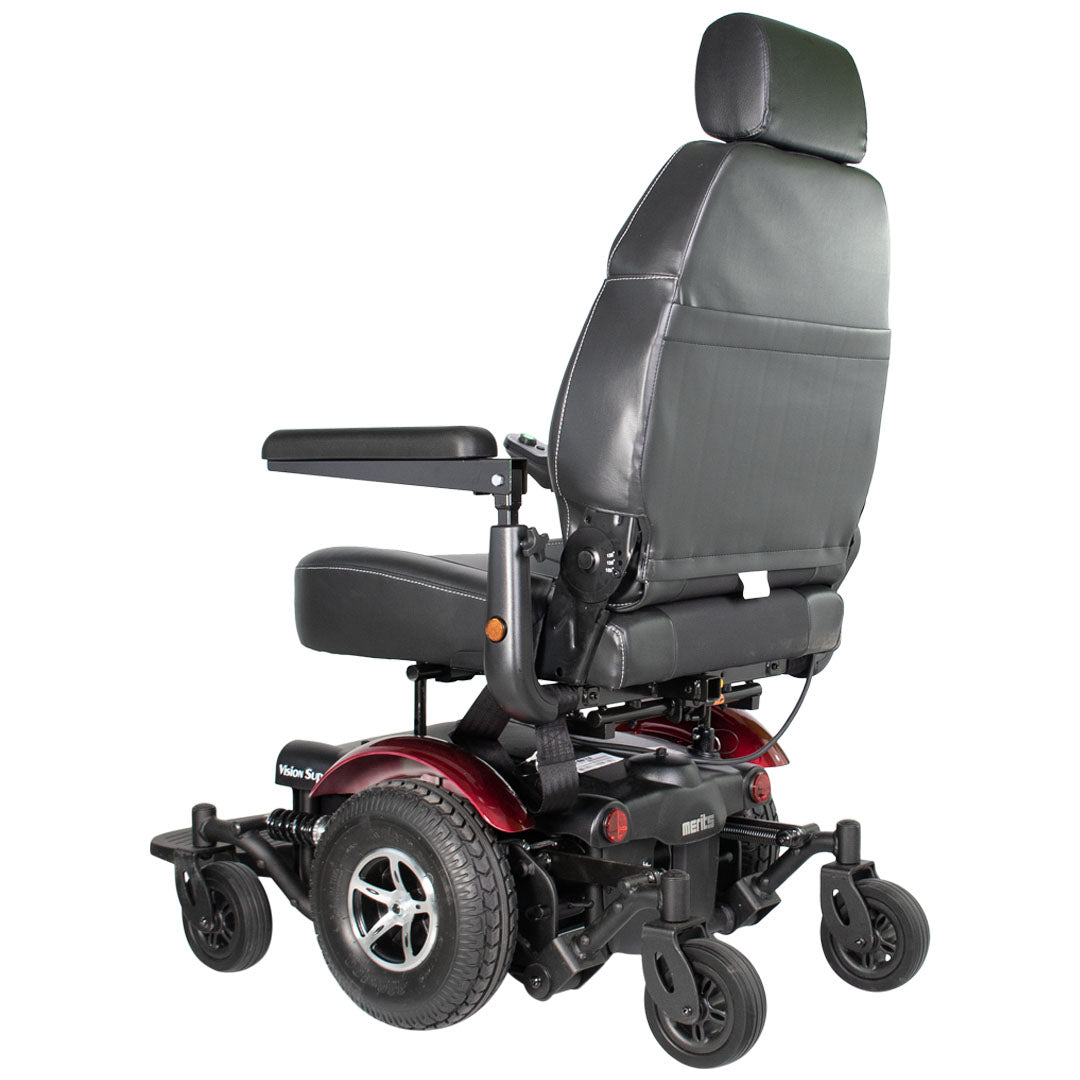

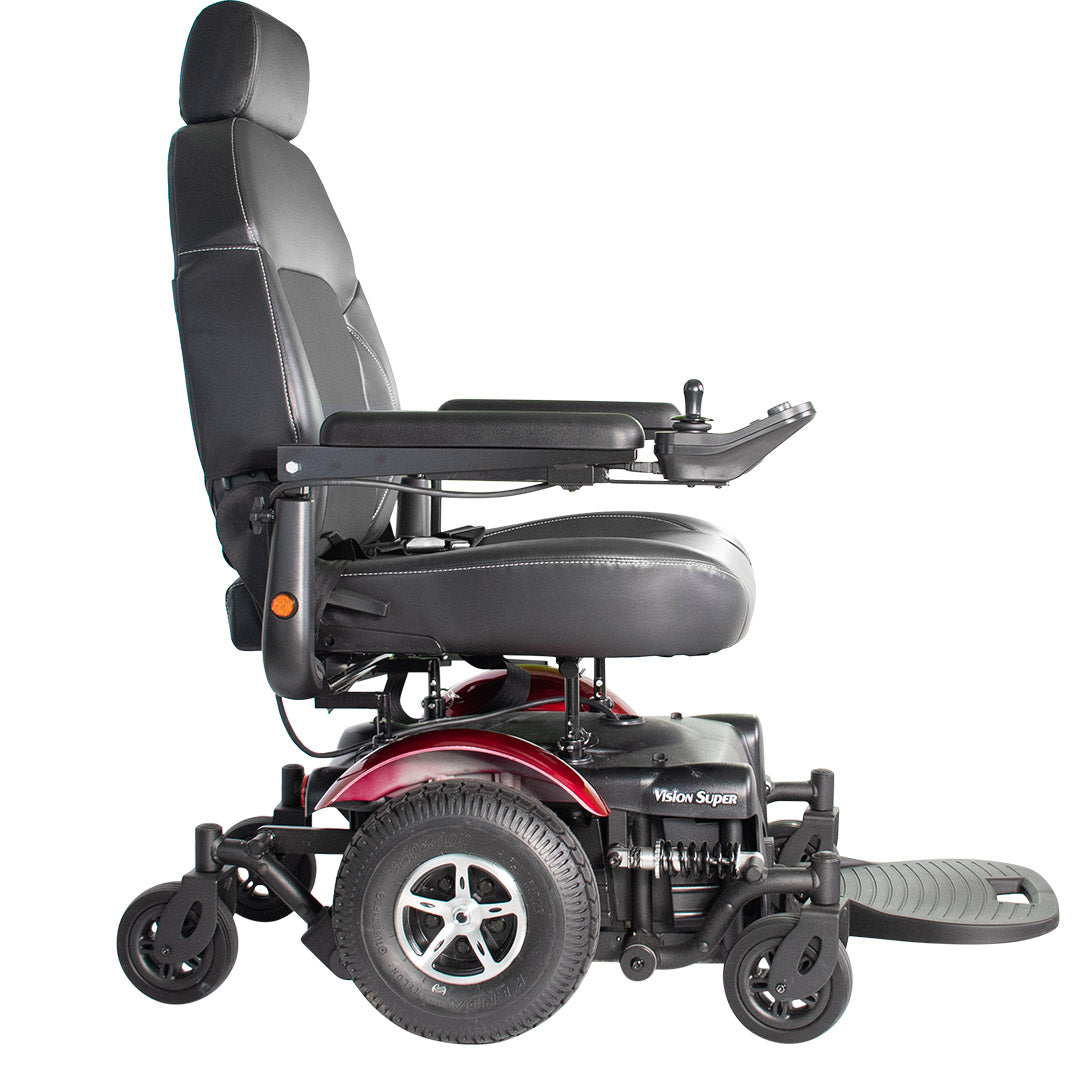

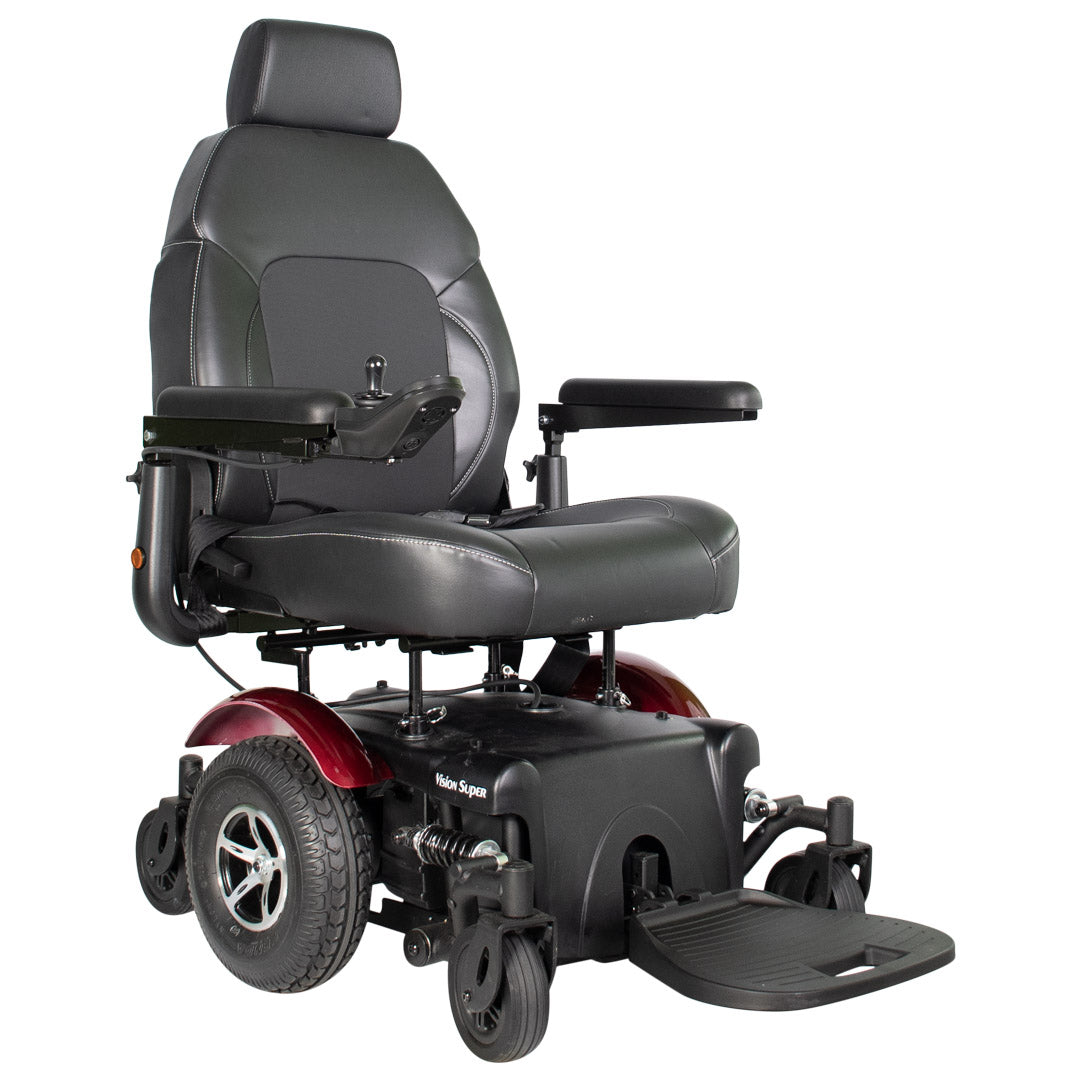

Merits P3271 Vision Super Heavy Duty Mid-Wheel Drive Power Wheelchair

Sku: P326A
Starting at: $4,279.00 USD
  • Red

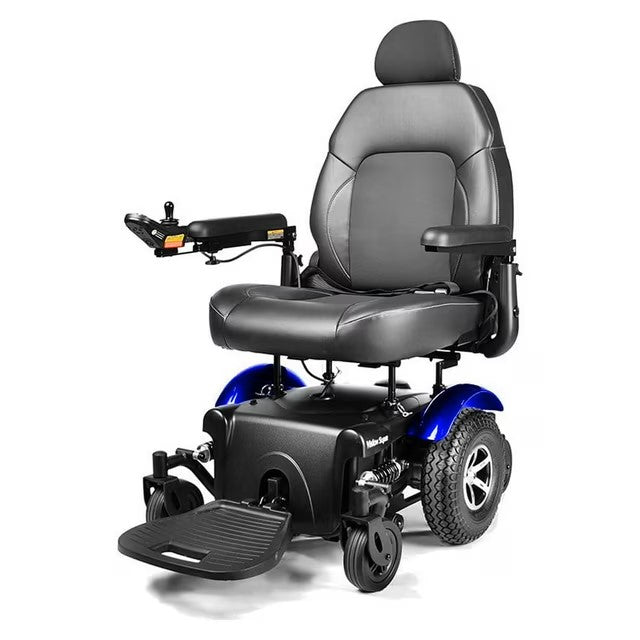

  • Blue
$4,279.00
Shipping calculated at checkout.
  Lease to own   Pay as low as $/week
Lead Time: This product ships in 2-5 business days.

Accepted Payments

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Merits P3271 Vision Super Heavy Duty Mid-Wheel Drive Power Wheelchair Features:

  • True mid-wheel drive design for tight space maneuverability 21" turning radius
  • 55 AH, 22NF AGM Batteries
  • Robust independent suspension can absorb up to 350 lbs. on the footplate without tipping forward (does not apply to lift option)
  • Premium, semi-reclining ergonomic seat up to 135°
  • Low center of gravity design delivers a smooth and stable ride
  • Dynamic LiNX & Shark fully programmable controller
  • Off-board 5 amp charger
  • Premium, semi-reclining ergonomic seat up to 135°
  • Colors Red and Blue
  • 450 lb. weight capacity (400 lb. with lift seat)
  • Optional 10" scissor power seat lift

Overview

Info

Merits Vision Sport compact mid-wheel drive power wheelchair is designed for tight space maneuverability. It features wheel independent suspension and there is no rear tipping when standing on footplate. Dual in-line motors offer enhanced efficiency, torque, range and performance, and a low center of gravity delivers a smooth and stable ride. 300-pound weight capacity; height and width adjustable arms.

Documents

Owners Manual
Warranty Insert
Brochure

Specifications

Max Speed 5mph
Range up to 18 miles
Turning Radius 20'
Ground Clearance 2'
Motor DC 24V, 160W
Controller Dynamic LiNX
Battery 12V/U1 x 2pcs
Charger 4A off-board
Gradient 6°
Casters 6' front and rear solid tires
Drive Wheels 10' solid tires
Brakes intelligent, regenerative, electromagnetic
Seat Width 19'
Seat Depth 18'
Seat Height 21.5' - 23.5'
Backrest Height 20'
Overall Length 34'
Overall Height 48.5'
Overall Width 24'
Total Weight 184 lbs.
Weight Capacity 300 lbs.

Warranty

Lifetime Warranty: Power Chair Frame

One Year Limited Warranty: Electronic Controller - Drive Train Components

Six Month Limited Warranty: Plastic Parts, Rubber Parts, Bearings (Excluding plastic shroud)
