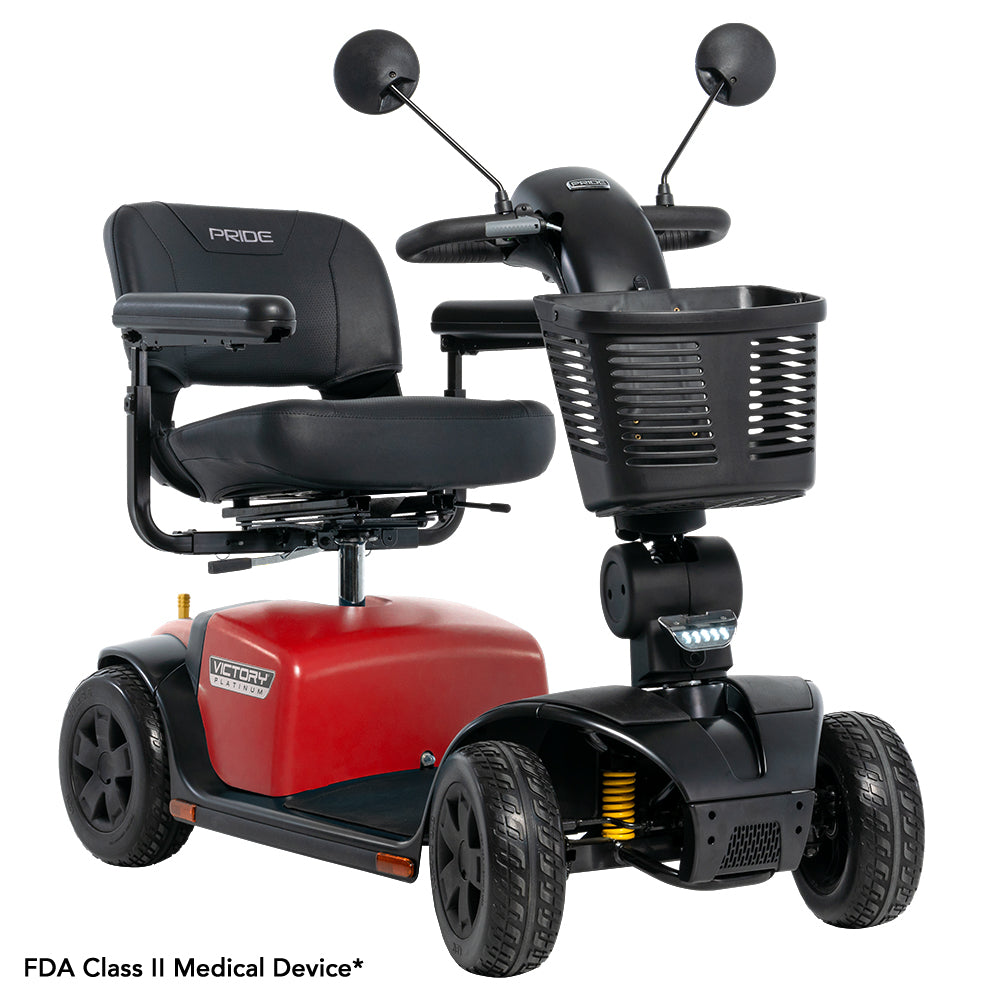

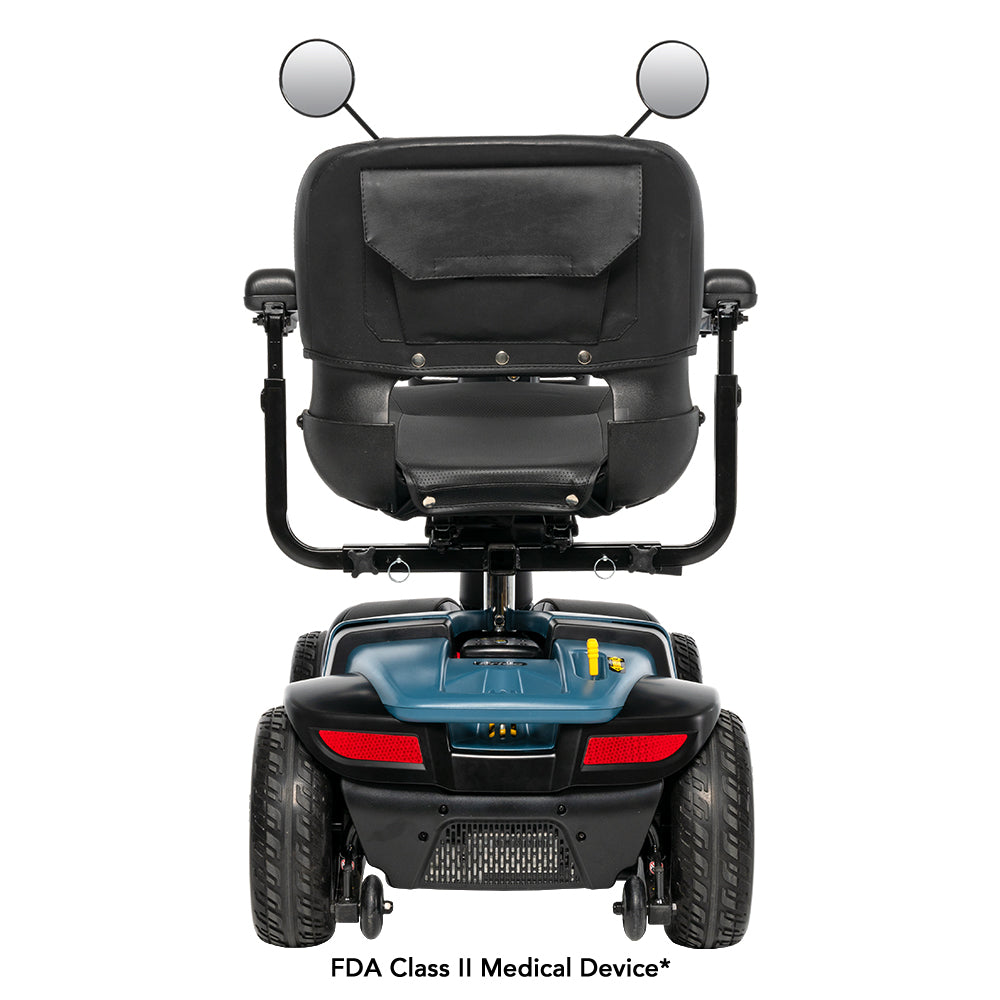

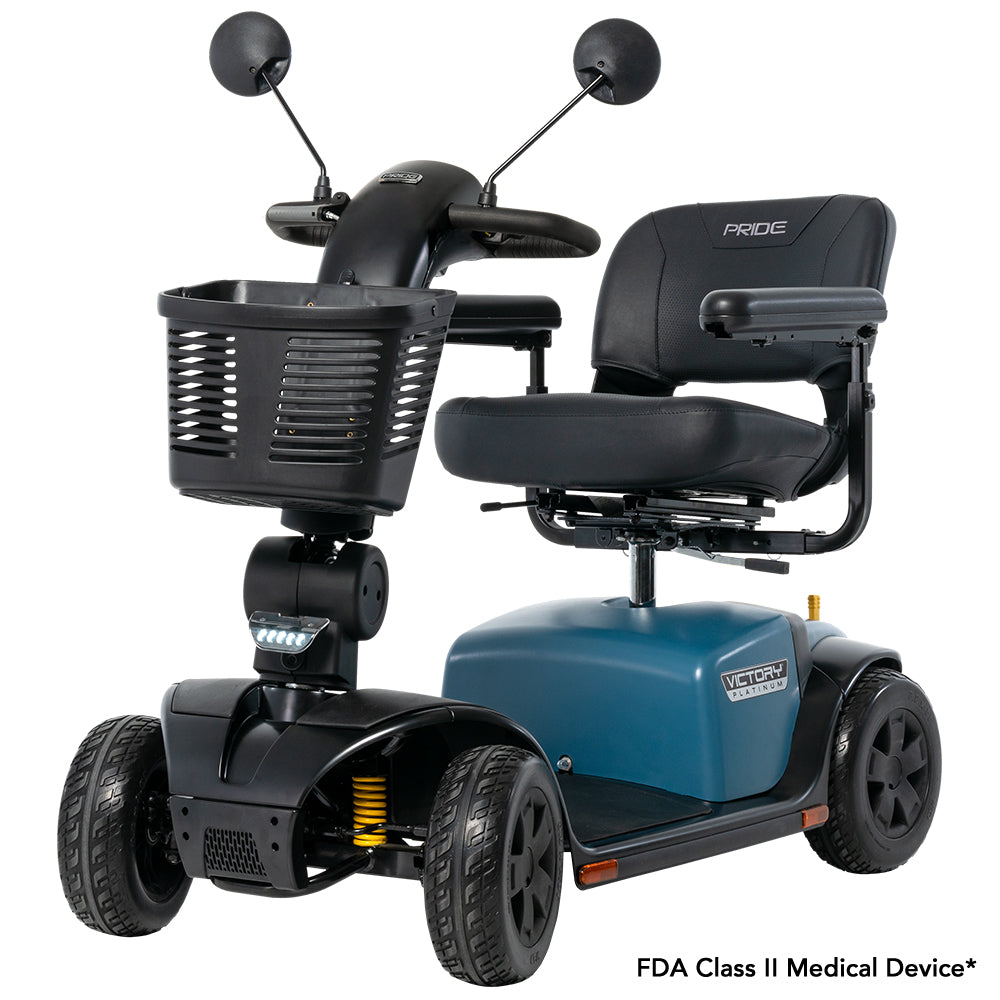

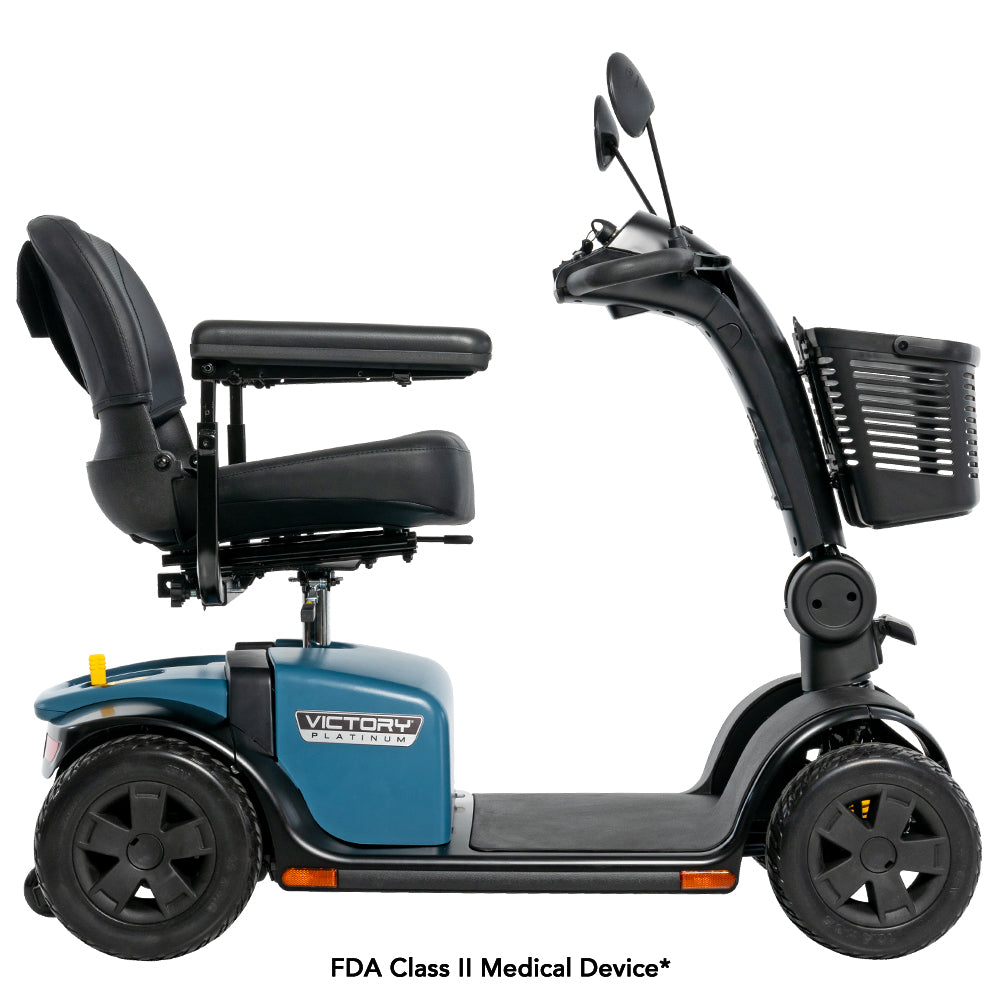

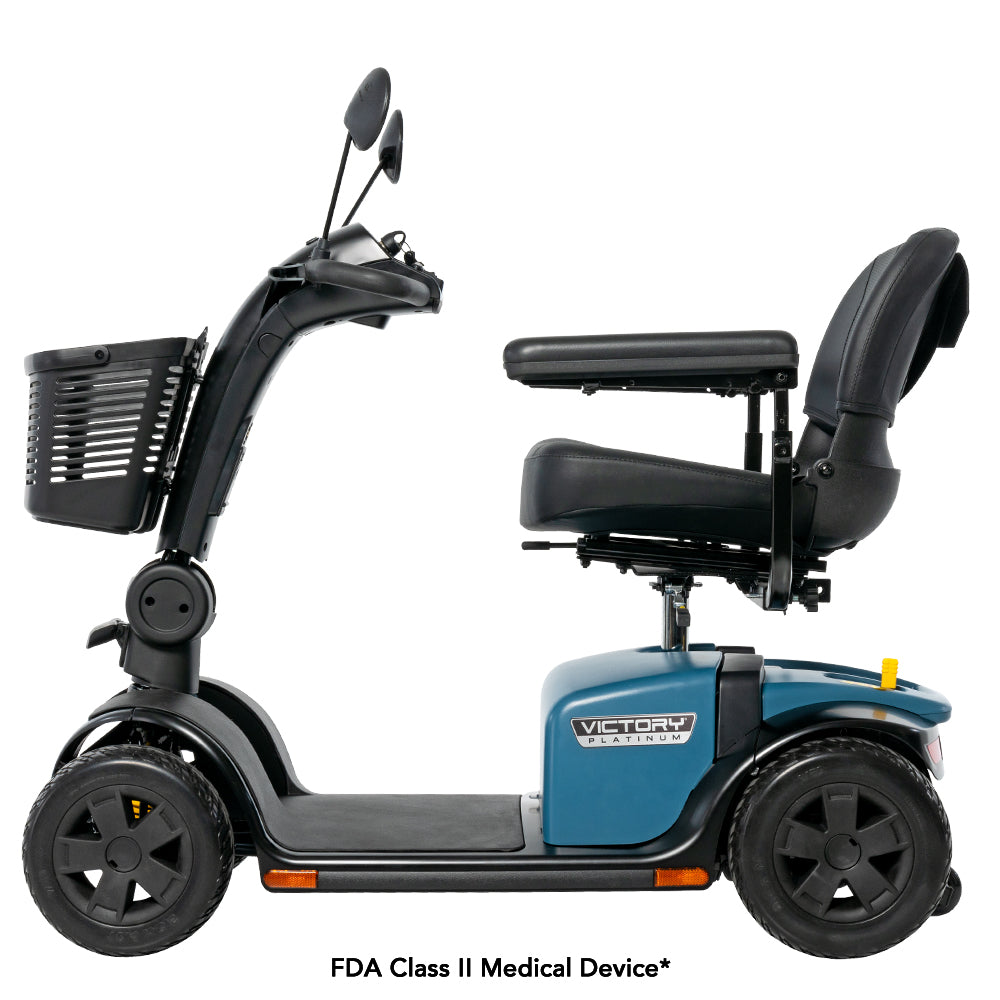

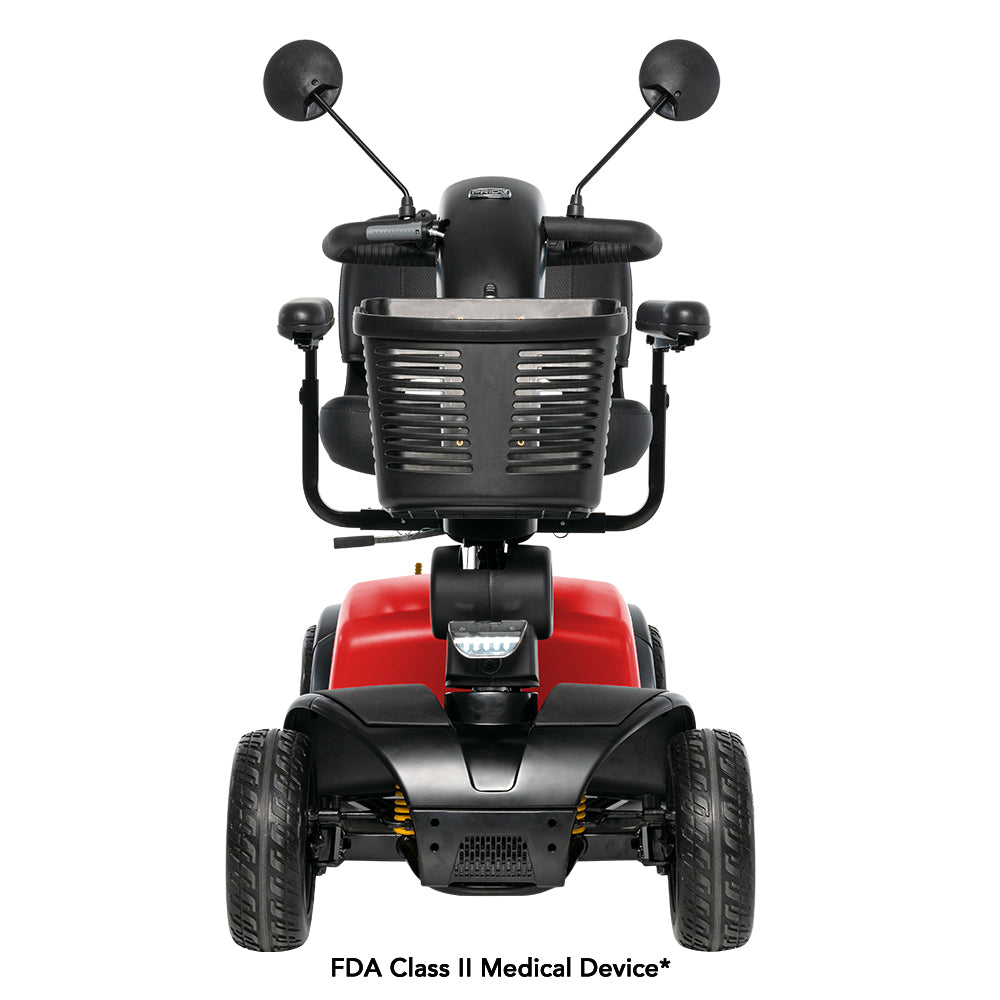

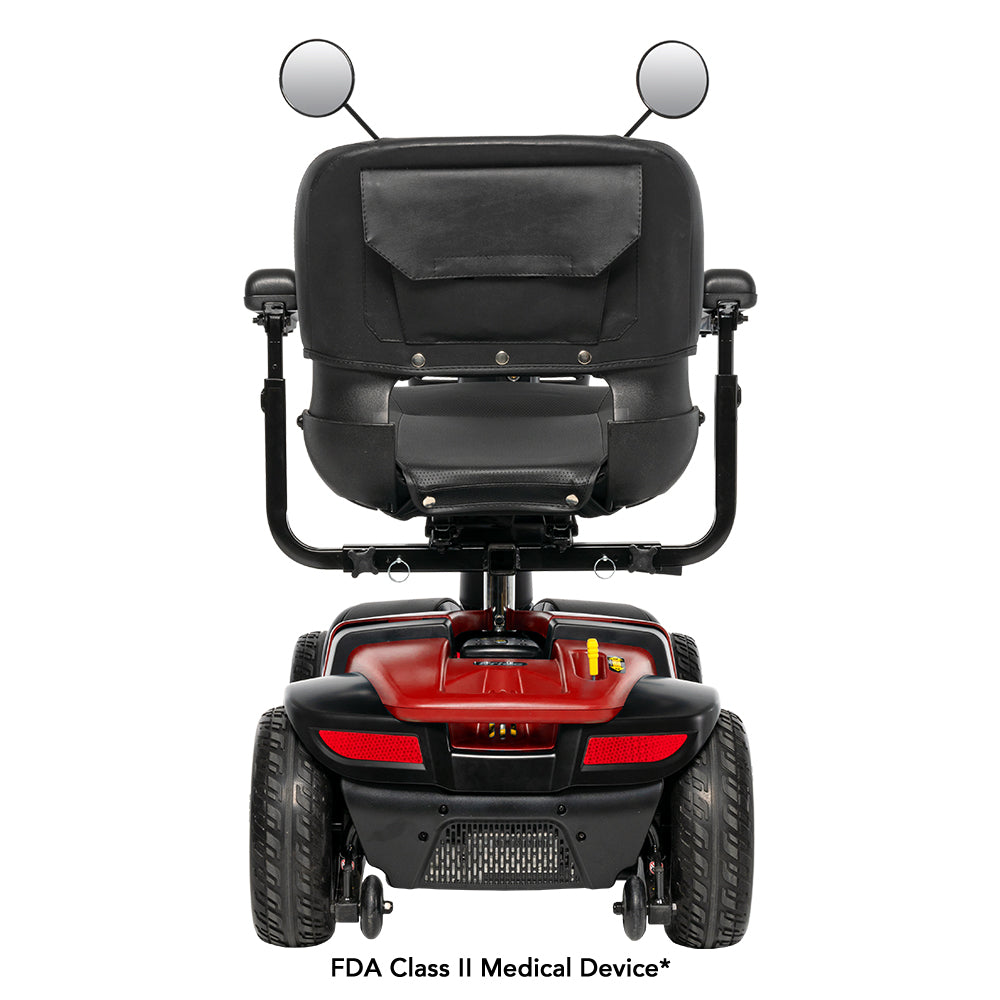

Pride Victory 10 Platinum 4-Wheel Power Mobility Scooter with EZ Turn Technology (SC710PLA)

 Pride Victory 10 Platinum 4 Wheel Mobility Scooter Features:

• Peace of Mind 1-Year in home service warranty included with purchase
• Made in the U.S.A.
• Patented EZ-Turn Technology for tighter turning

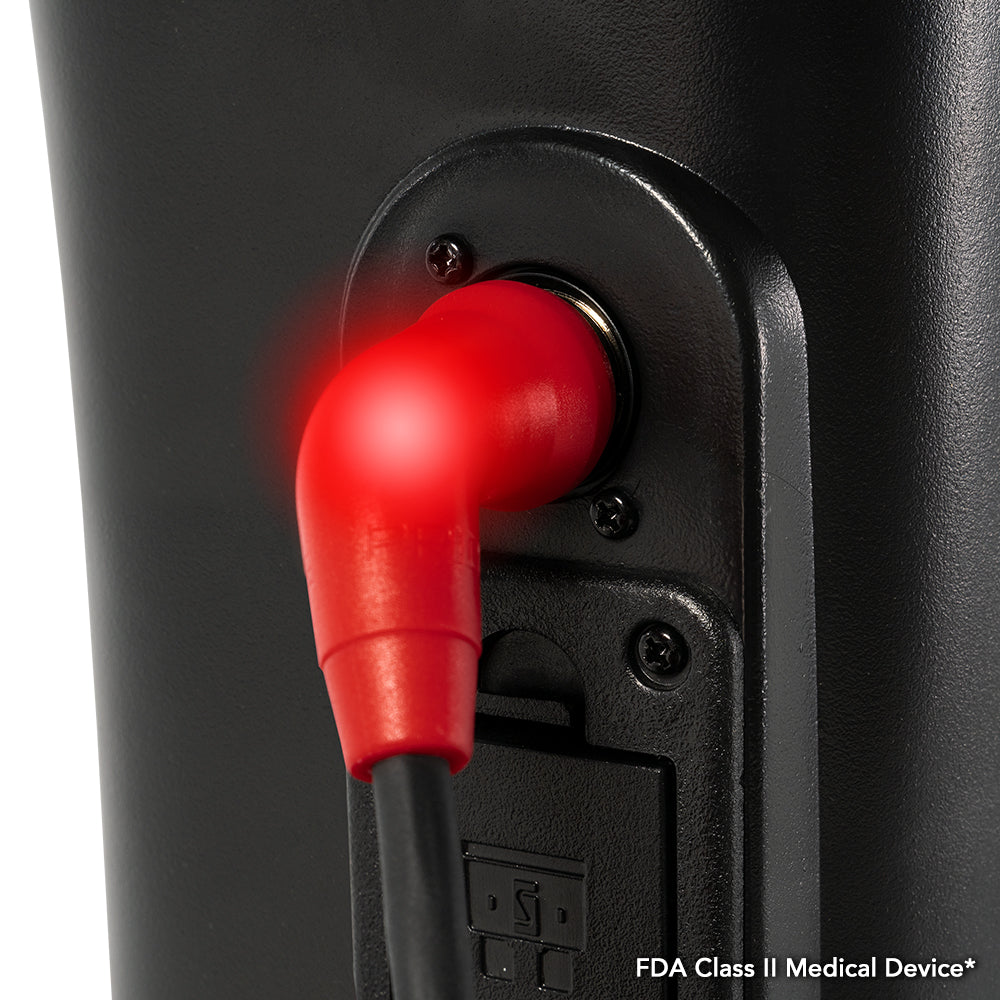

• Charge360: Simply and Easily attach charger

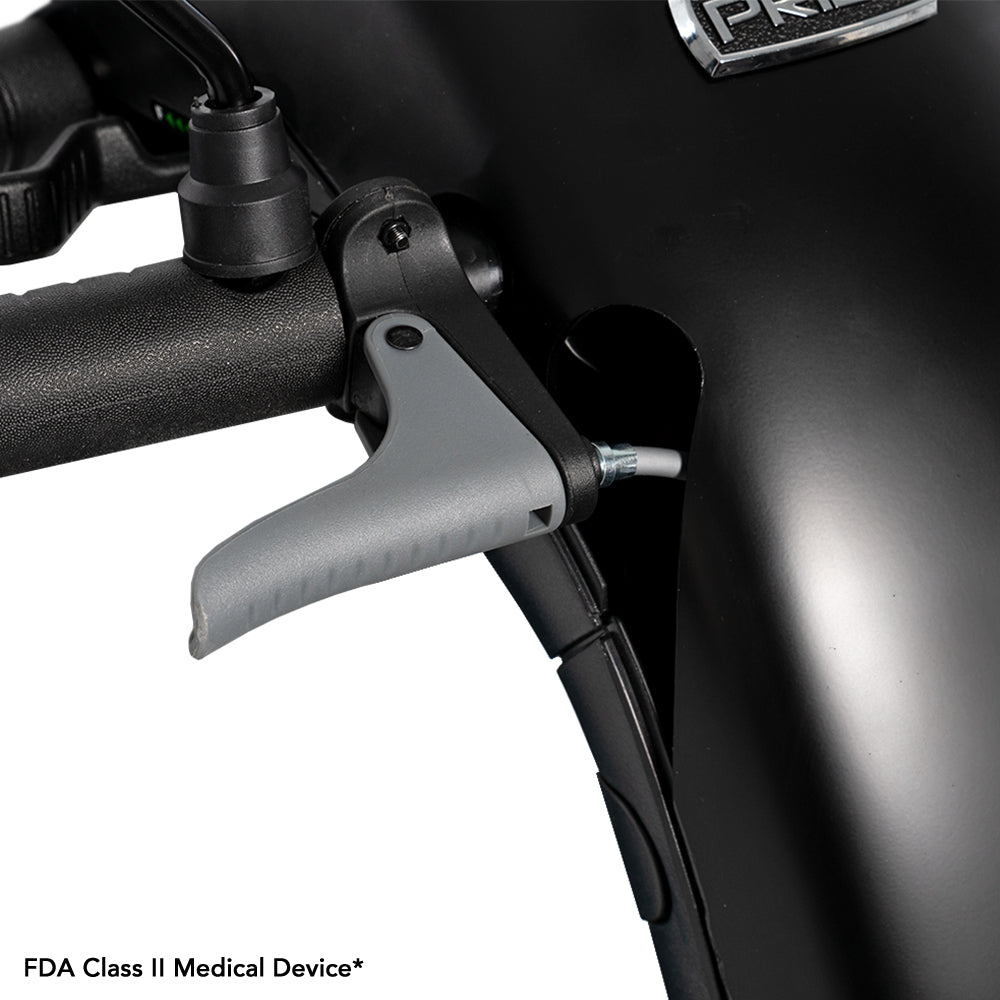

• One Handed Tiller Adjustment

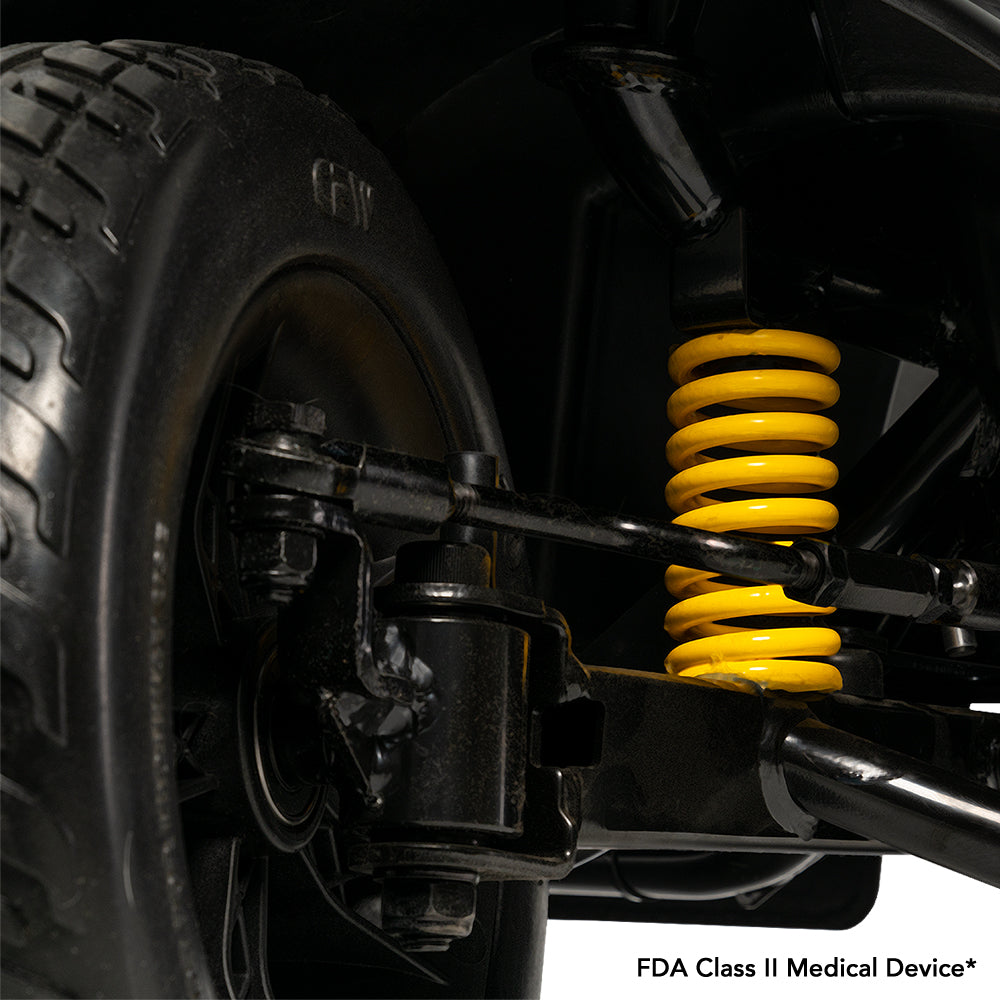

• Full Front and Rear Suspension
• FDA Class II Medical Device

Owners Manual

Victory 10 Brochure

Pride Scooter Catalog

Warranty Insert

Battery Charging Procedure

Victory 10 Platinum

Model Number	SC710PLA
Front Tires	3.5' x 10.4' Solid
Rear Tires	3.5' x 11' Solid
Maximum Speed*	Up to 6 MPH
Ground Clearance	2.75" at motor & transaxle
Turning Radius**	45.5"
Overall Length**	47"
Overall Width of Base**	24"
Seat-to-Ground Height Range	23.5"-25"
Seat Type	Compact, foldable w/ black vinyl (18"x17")
Weight**	145 lbs.
Seat-to-Deck Height Range	17.5"-19"
Battery Weight	43.2lbs total
Battery Requirements	(2)U1 or (2)40AH
Maximum Range Per Charge*	Up to 15.5 miles
Battery Charger	Off-board, 3A (U-1)/Off-board, 5A (40 AH)
Maximum Weight Capacity	400 lbs.

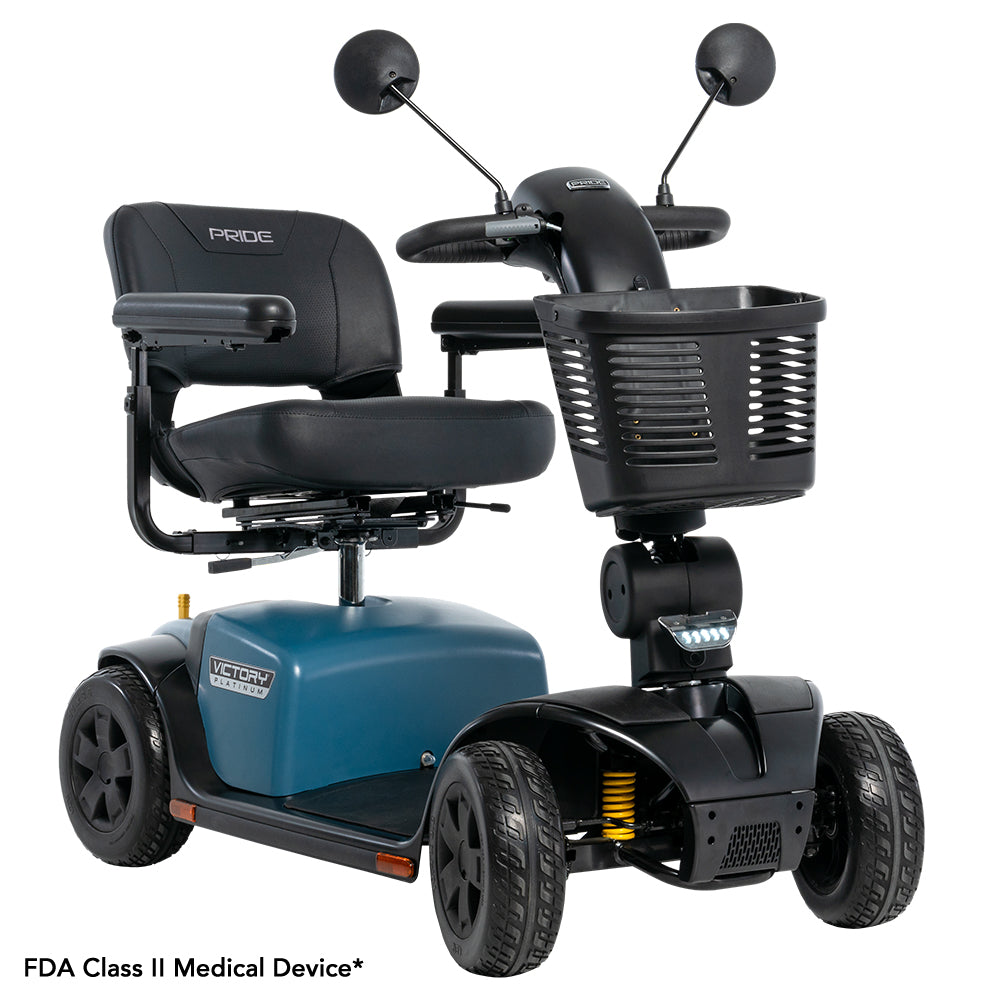

Standard Body Colors	Matte Cardinal Red, Matte Iceberg Blue
Weight of Heaviest Piece**	67 lbs. (Front Section)
Warranty	Lifetime limited on frame;2-Year limited on Electronics;2-Year limited on Drivetrain

The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.

*Speed & range vary with user weight, terrain type, battery charge, battery condition and tire pressure.

**Due to manufacturing tolerances and continued product improvement, this specification is subject to a variance of +/- 3%

LIFETIME LIMITED WARRANTY
For the lifetime of your product from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:

Structural Frame Components, including:
•Main Frame
•Fork
•Seat Post
•Tiller Frame

TWO-YEAR LIMITED WARRANTY
For two (2) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
•Transaxle
•Brake
•Bushings
•Bearings
•Motor Brake (electronic function ONLY)

Also, electronic assemblies including:
•Electronic Controllers
•Chargers
•Harnesses
•Any Other Electrical Subassembly

SIX-MONTH WARRANTY

The battery is covered by a separate six-month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.

NOTE: Starting from date of product delivery, battery charge must be maintained to ensure warranty coverage. For mobility products which are not used regularly, or during periods of storage prior to and after purchase date, batteries must be charged once a week, for 24 hours. Failure to do so will void battery warranty.

NOTE: For Lithium-ion battery warranty information, refer to the Lithium Warranty Insert


WARRANTY EXCLUSIONS This warranty does not extend to those items which may require replacement due to normal wear and tear.
•ABS Plastic Shrouds
•Motor Brushes
•Upholstery and Seating
•Brake Pads
•Tires and Tubes
•Fuses/Bulbs
•Circumstances beyond the control of Pride
•Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products
•Repairs and/or modifications made to any part without specific consent from Pride

Exclusions also include components with damage or failure caused by:

•Parts/accessories that are not Pride original parts and are not purchased through an authorized Pride provider

•Contamination
•Abuse, misuse, accident, or negligence
•Battery fluid spillage or leakage
•Use other than normal design specifications
•Improper operation, maintenance, or storage

•Acts of God or Nature

NOTE: If there is an increase in the operational noise level in the transaxle, the warranty does not apply. An increase in operational noise level usually occurs due to abusive and excessive strain on the scooter.
NOTE: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period of time, or worn out through heavy use is not covered.

This unit is delivered via common LTL carrier on a pallet. This will be left curbside for standard delivery. Some carriers schedule delivery appointments.

The following conditions apply:

This item has a 20% Restocking Fee.

You are responsible for the cost of return shipping.

The product must be new and unused and in the original packaging.

All accessories and items that were included in the box must be returned.

Items canceled after the product has already shipped will be considered a return.

Delivery and service fees are not refundable.

Custom-made by the manufacturer to suit your specific needs are non-returnable.

An RA (Return Authorization) from Top Mobility must be requested within 15 days of delivery.

The item must be shipped back to the address noted on the RA within 15 days.

Once approved, your refund, minus any restocking and freight fees, will be issued to your original form of payment.

If you have questions about this item please call a Top Mobility Customer Service Expert at 1-888-364-3813.
