GATEWAY® 3G Portable Ramp by EZ-ACCESS®

Sku: GATEWAY® RAMP
Starting at: $455.00 USD

Made in America

$455.00
Shipping calculated at checkout.
  Lease to own   Pay as low as $/week
This product usually ships in 2-5 business days.

Accepted Payments

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Venmo
  • Visa

GATEWAY® 3G Ramp Features:

  • Up to 1,000 lbs weight capacity.
  • Heavy-duty aluminum construction
  • Will not rust or deteriorate from elements
  • Slip-resistant surface

EZ-Access Gateway Portable Ramp

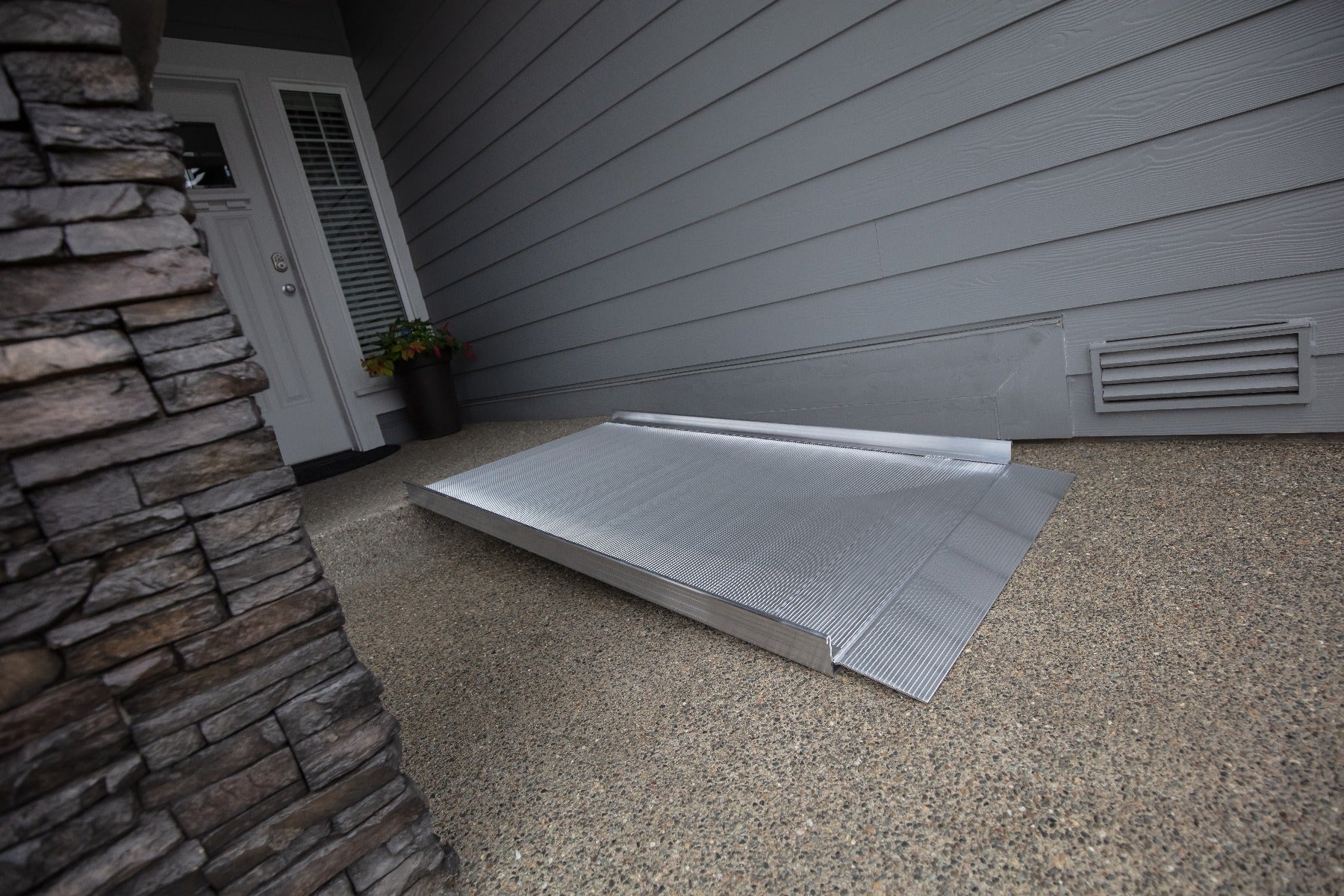

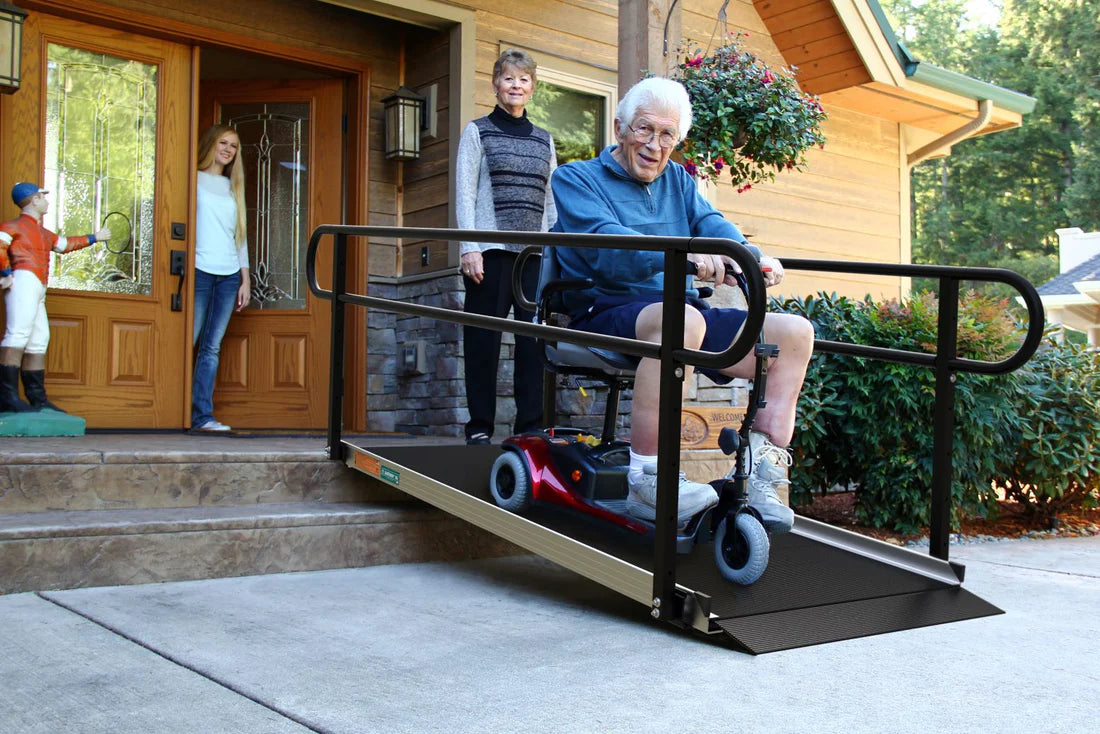

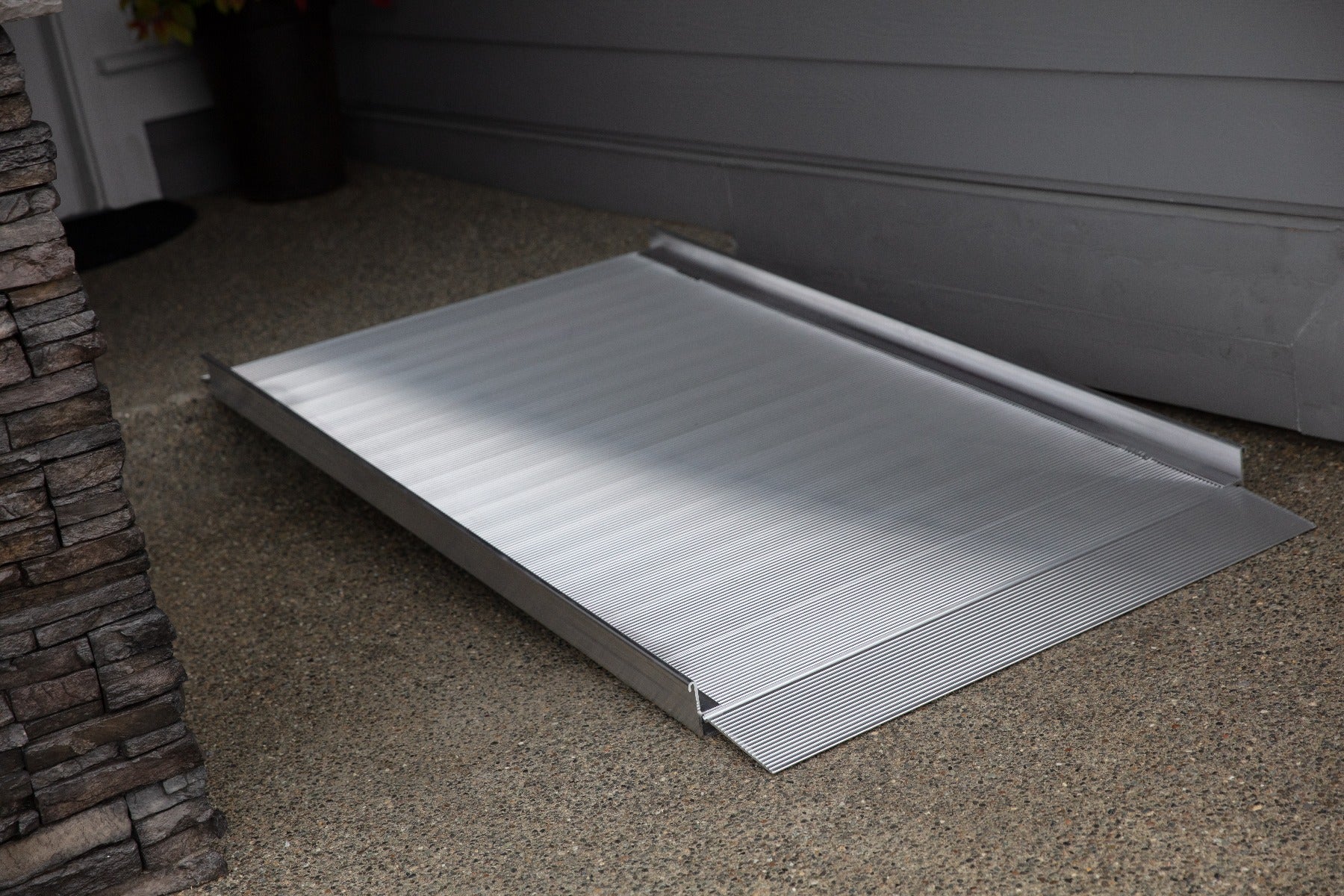

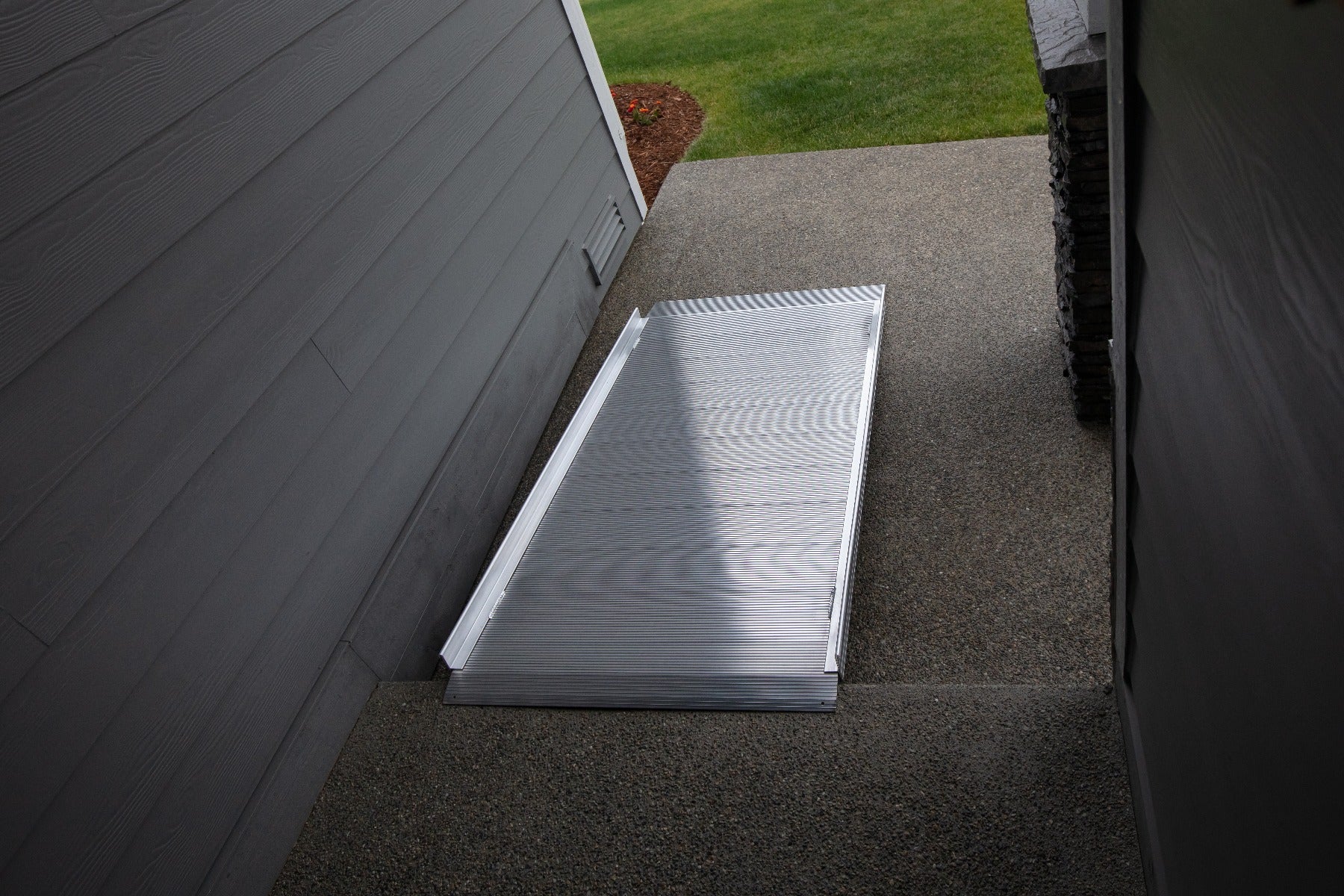

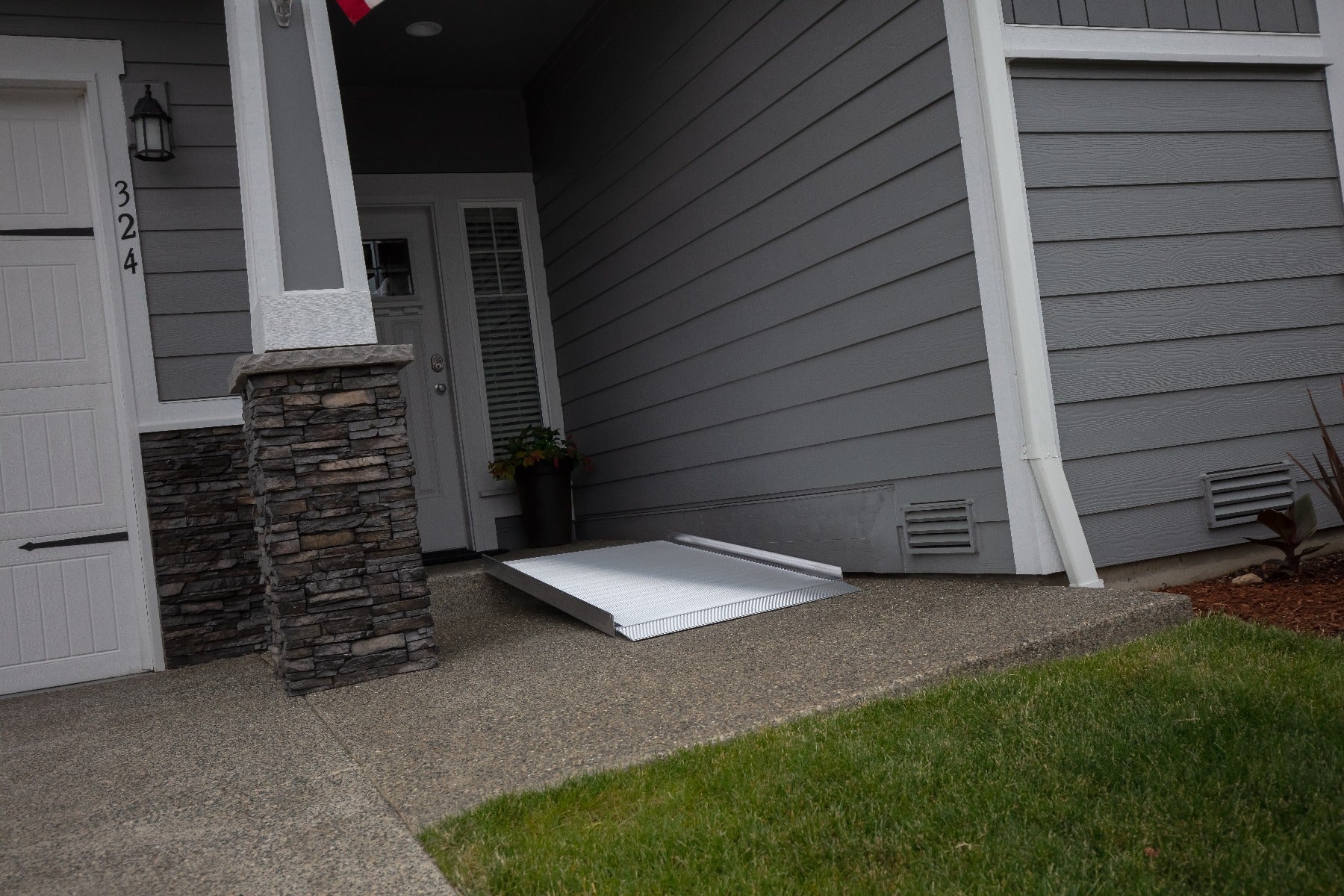

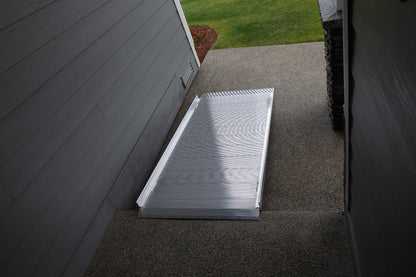

The GATEWAY® 3G Solid Surface Portable Ramp is designed to meet extended mobility needs with a seamless, slip-resistant surface. Perfect for temporary or semi-permanent access, this ramp can be easily relocated as required. Crafted from lightweight yet heavy-duty aluminum, it supports up to 1,000 lbs and is built to withstand repeated, everyday use in all weather conditions, making it ideal for scooters, wheelchairs, and walkers. The ramp's robust construction ensures it will not rust, rot, or deteriorate when exposed to outdoor elements, offering years of maintenance-free use.

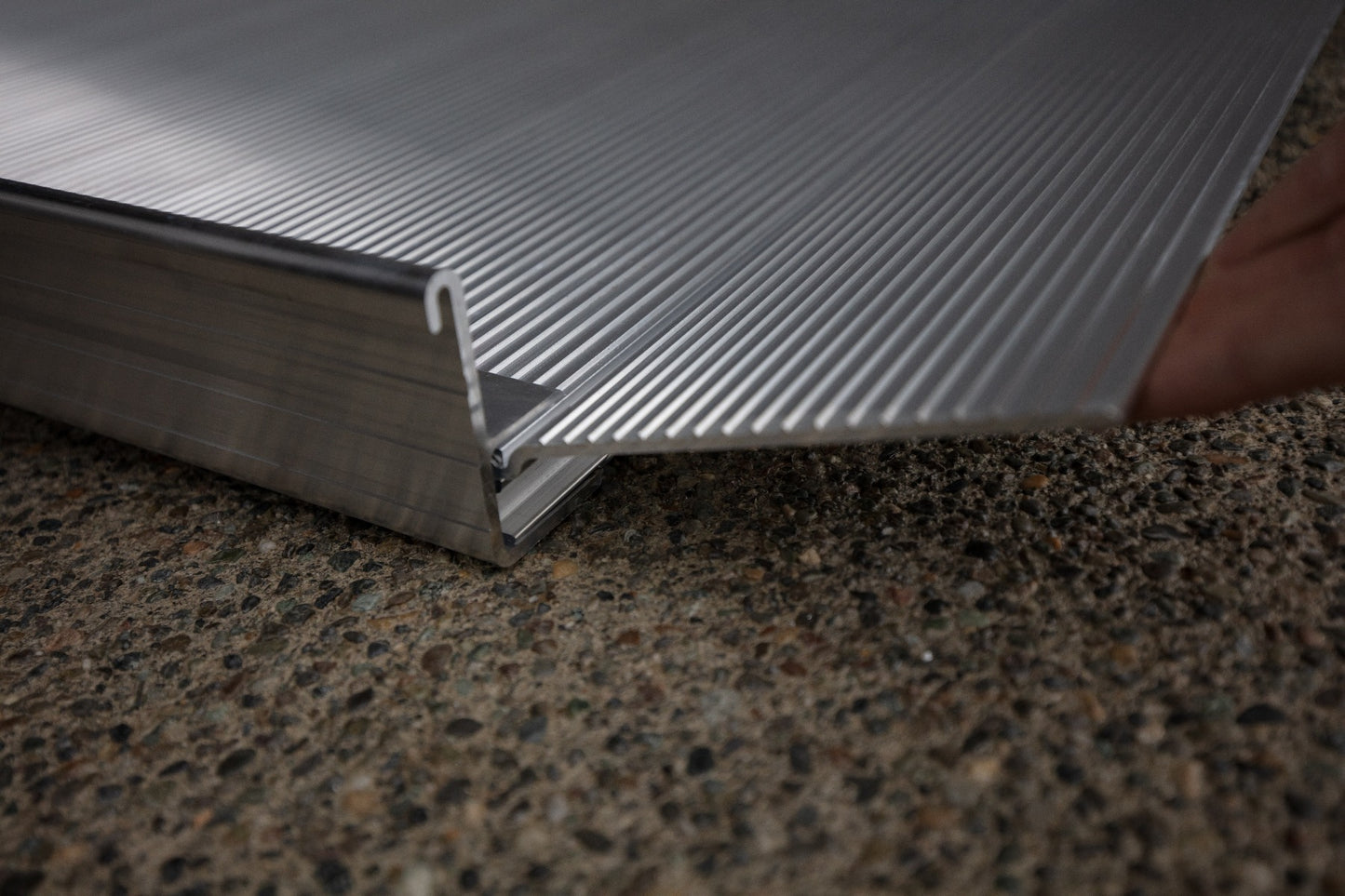

Available in various lengths from 3 to 10 feet, the GATEWAY 3G comes in three styles: ramp only, ramp with two-line handrails, and ramp with vertical picket handrails. Its design includes integrated side rail curbs, which prevent mobility equipment from driving off the edge, with 2-inch curbs on shorter ramps and 4-inch curbs on longer ones. The formed top transition and adjustable bottom transition plate provide smooth, secure ramp-to-ground transitions. Manufactured in the USA, this ramp offers a safe, durable solution for enhanced accessibility.

Overview

Info

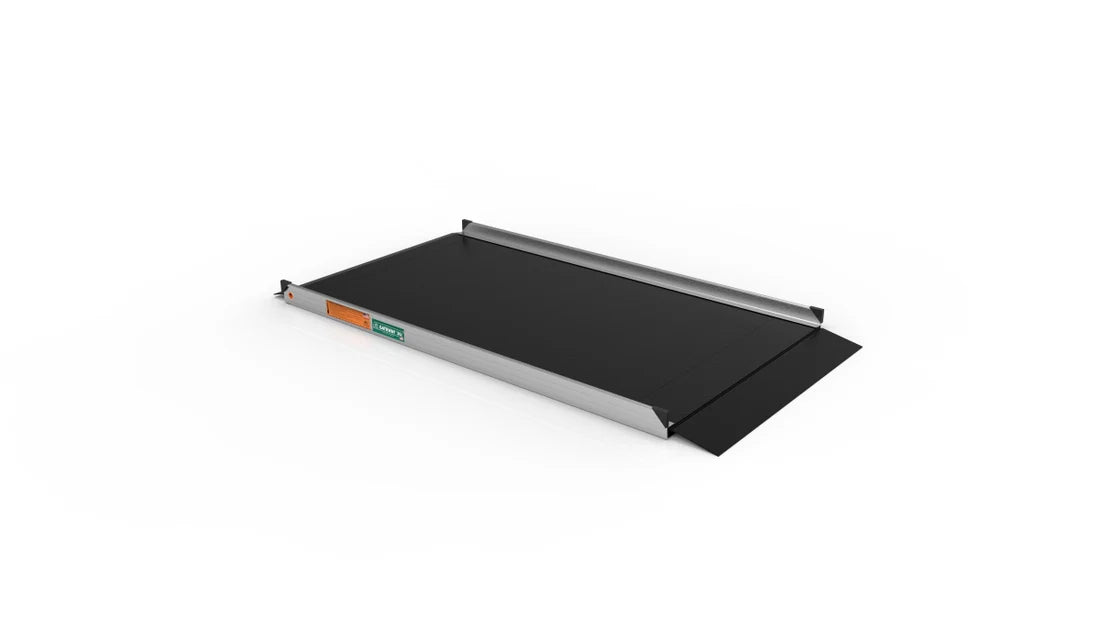

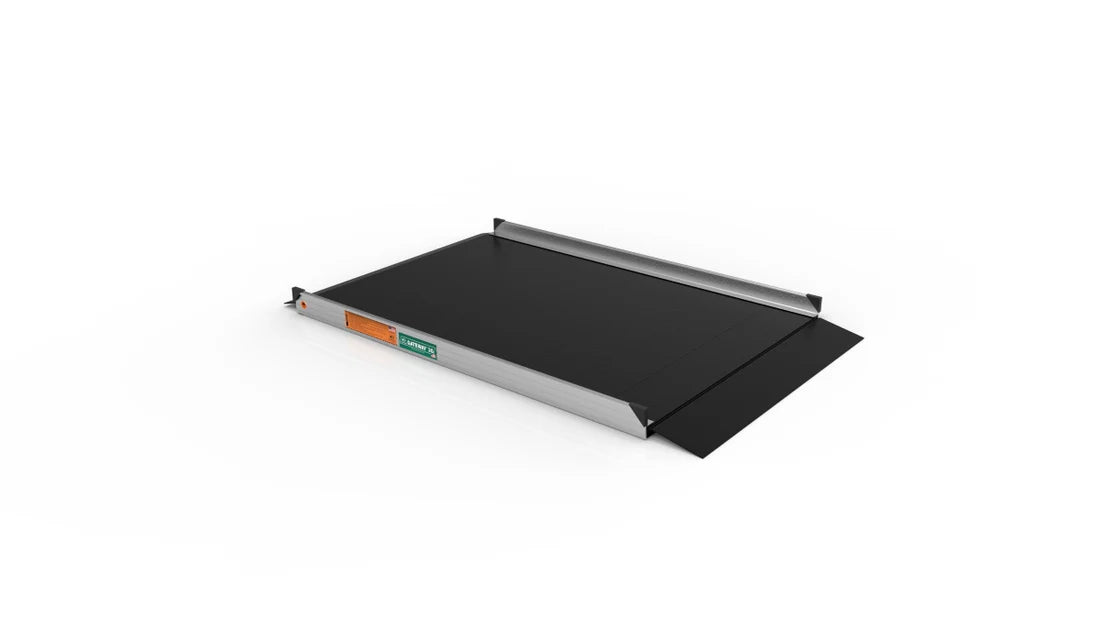

Highlights Handrail styles are available in architectural finish or black powder coat Deck options are available in extruded slip-resistant surface or black Safeguard Hi-Traction® direct gritting Both deck options are engineered with superior materials to provide optimal slip-resistant ramp surfaces Safe, durable home access solution features a weight capacity of 1,000 lbs. Made of lightweight, yet heavy-duty aluminum for years of maintenance-free use Will not rust, rot, or deteriorate from the outdoor elements Features a formed top transition for secure placement and an adjustable bottom transition plate that allows smooth ramp-to-ground transitions Integrated side rail curbs help to prevent mobility equipment from driving off the edge (3 ft. to 8 ft. ramp lengths feature 2 in. curbs, 9 ft. to 10 ft. ramp lengths feature 4 in. curbs) Made in the USA

Documents

Technical Specifications
Installation Instructions
Warranty Insert
Brochure

Specifications

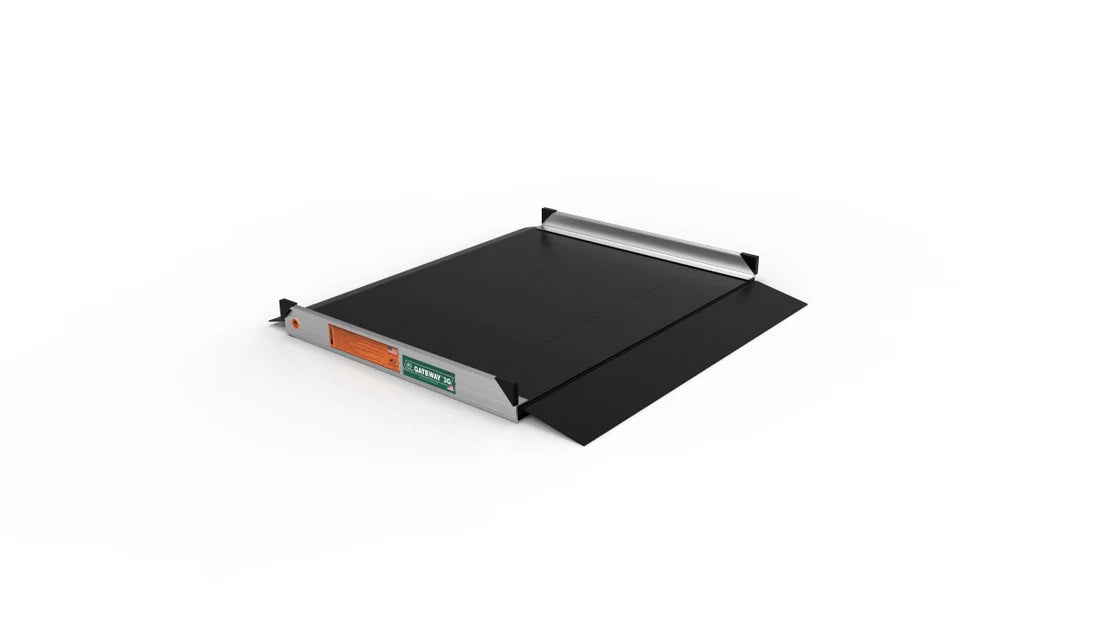

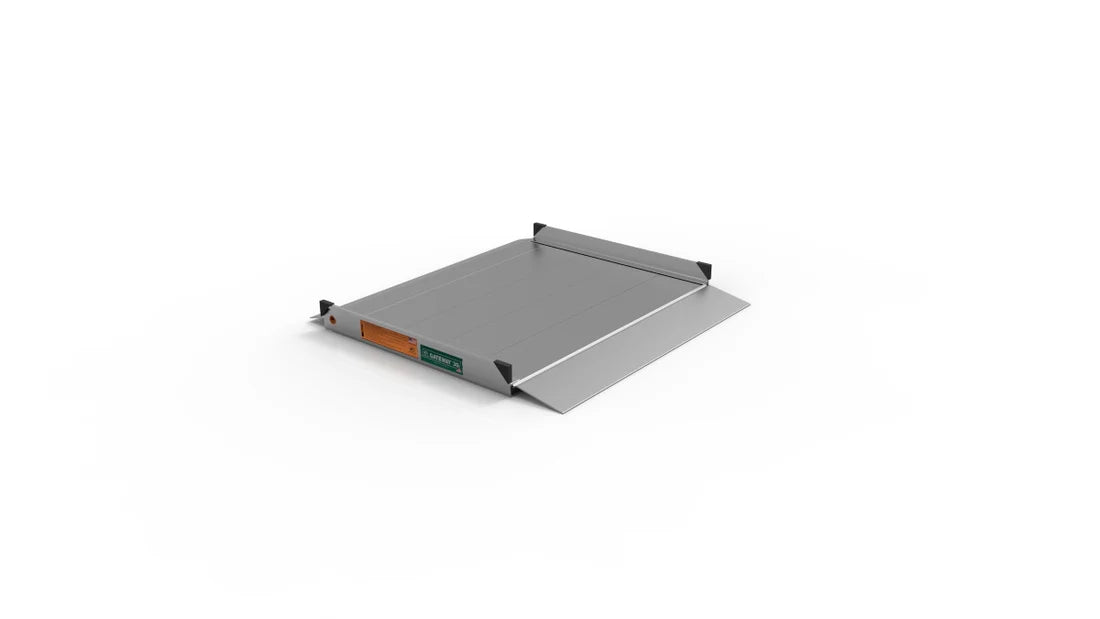

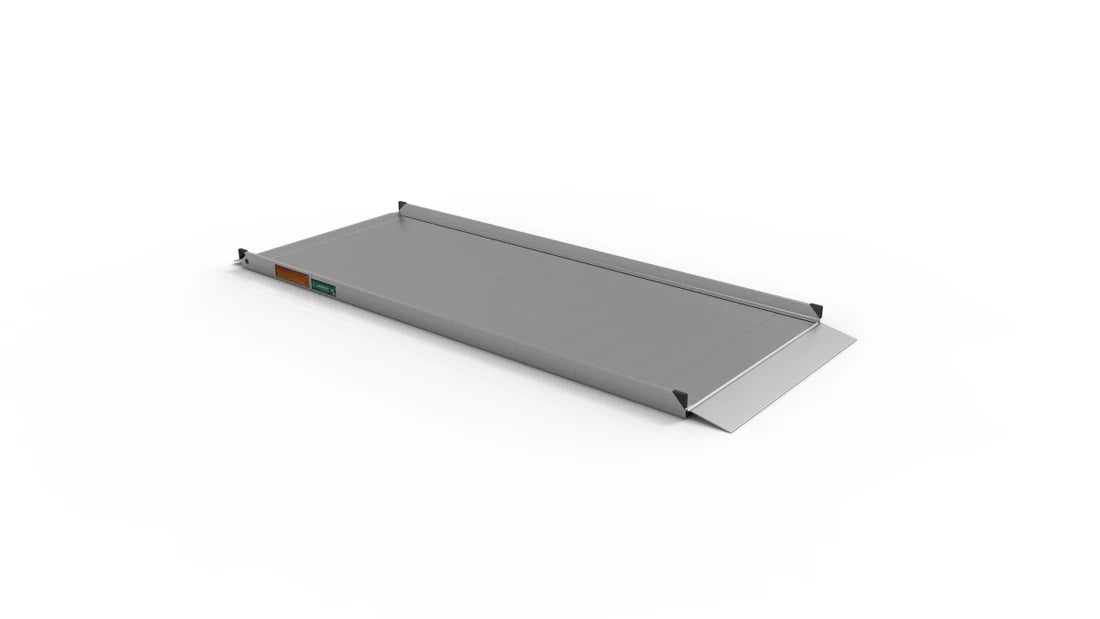

RAMP WITH NO HANDRAILS

Model 3-FT 4-FT 5-FT 6-FT 7-FT
Usable Size (LxW) 3'x36' 4'x36' 5'x36' 6'x36' 7'x36'
Overall Size (LxWxH) 3'x37'x3.5' 4'x37'x3.5' 5'x37'x3.5' 6'x37'x3.5' 7'x37'x3.5'
Curb Height (in.) 2 2 2 2 2

Weight*

 24 lbs. 30 lbs. 36 lbs. 42 lbs. 50 lbs.

Weight Capacity

 1000 lbs. 1000 lbs. 1000 lbs. 1000 lbs. 1000 lbs.
Usage Guidelines** Up to 4' Up to 6' Up to 7' Up to 9' Up to 10'
Model 8-FT 9-FT 10-FT
Usable Size (LxW) 8x36 9x36 10x36
Overall Size (LxWxH) 8'x37'x3.5' 9'x37'x5.5' 10'x37'x3.5'
Curb Height (in.) 2 4 4

Weight*

 54 lbs. 68 lbs. 72 lbs.

Weight Capacity

 1000 lbs. 1000 lbs. 1000 lbs.
Usage Guidelines** Up to 12' Up to 13' Up to 15'

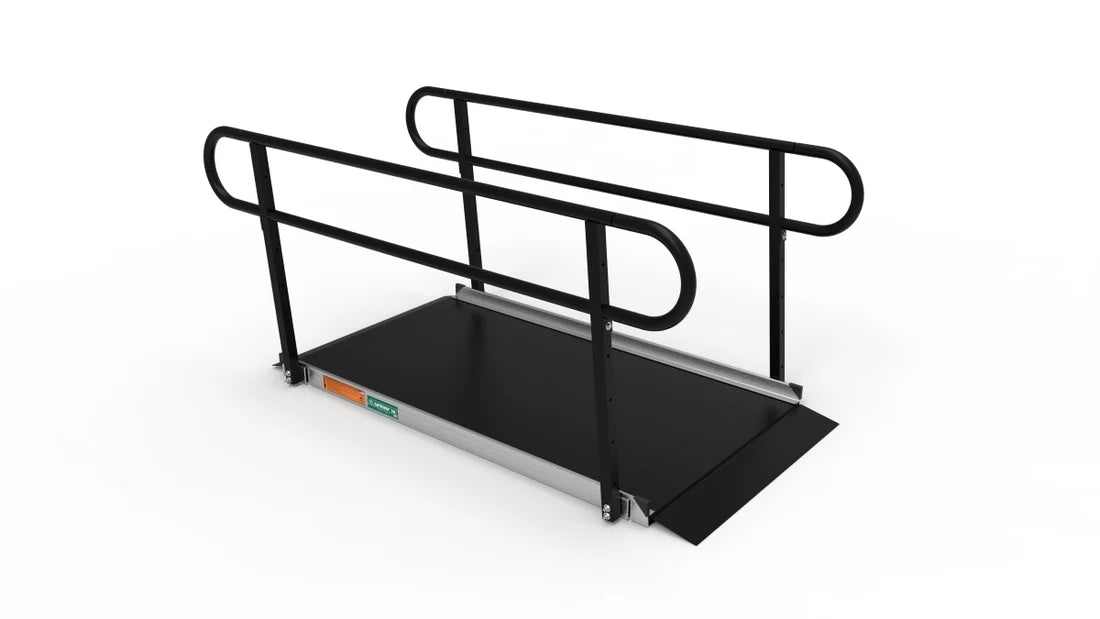

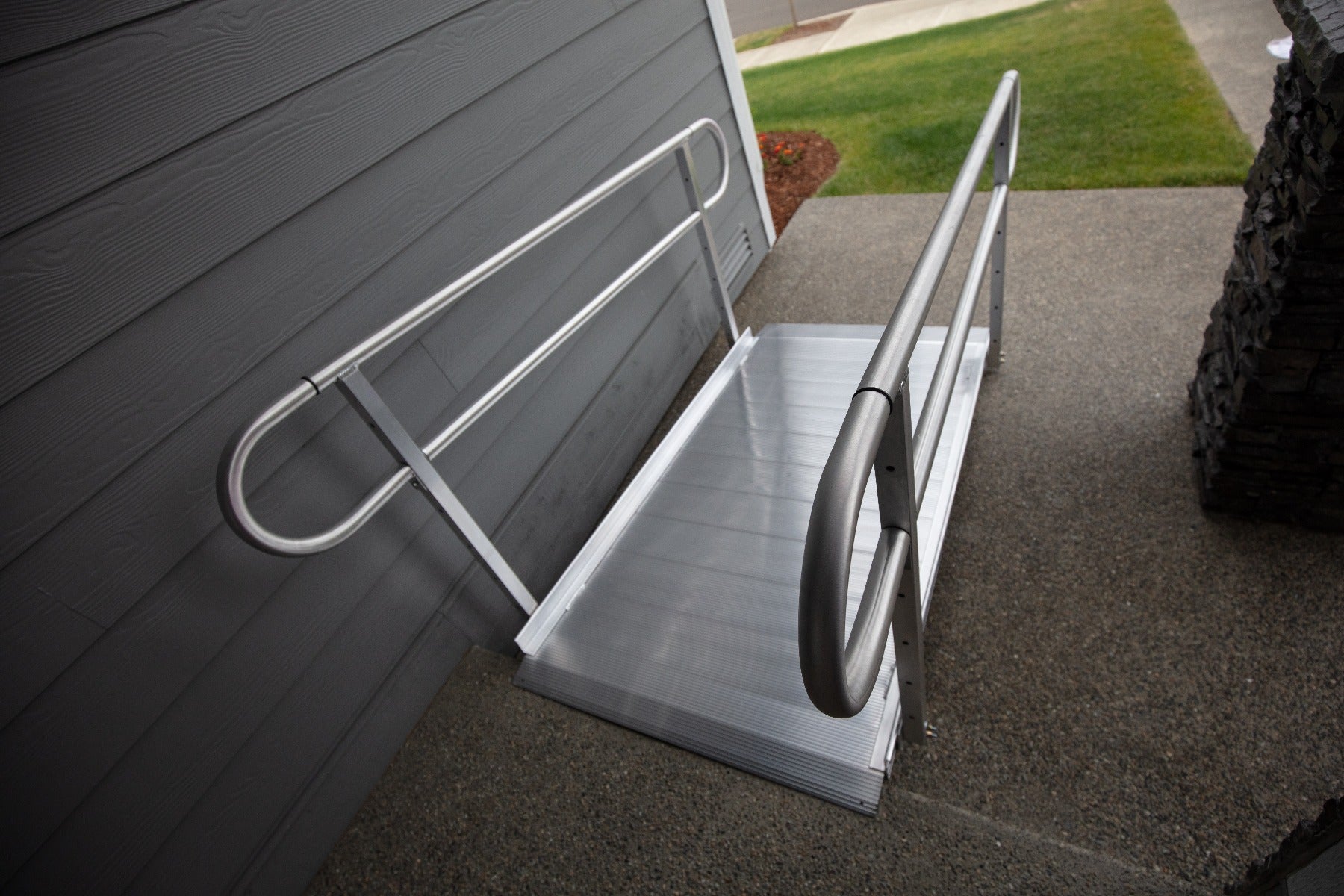

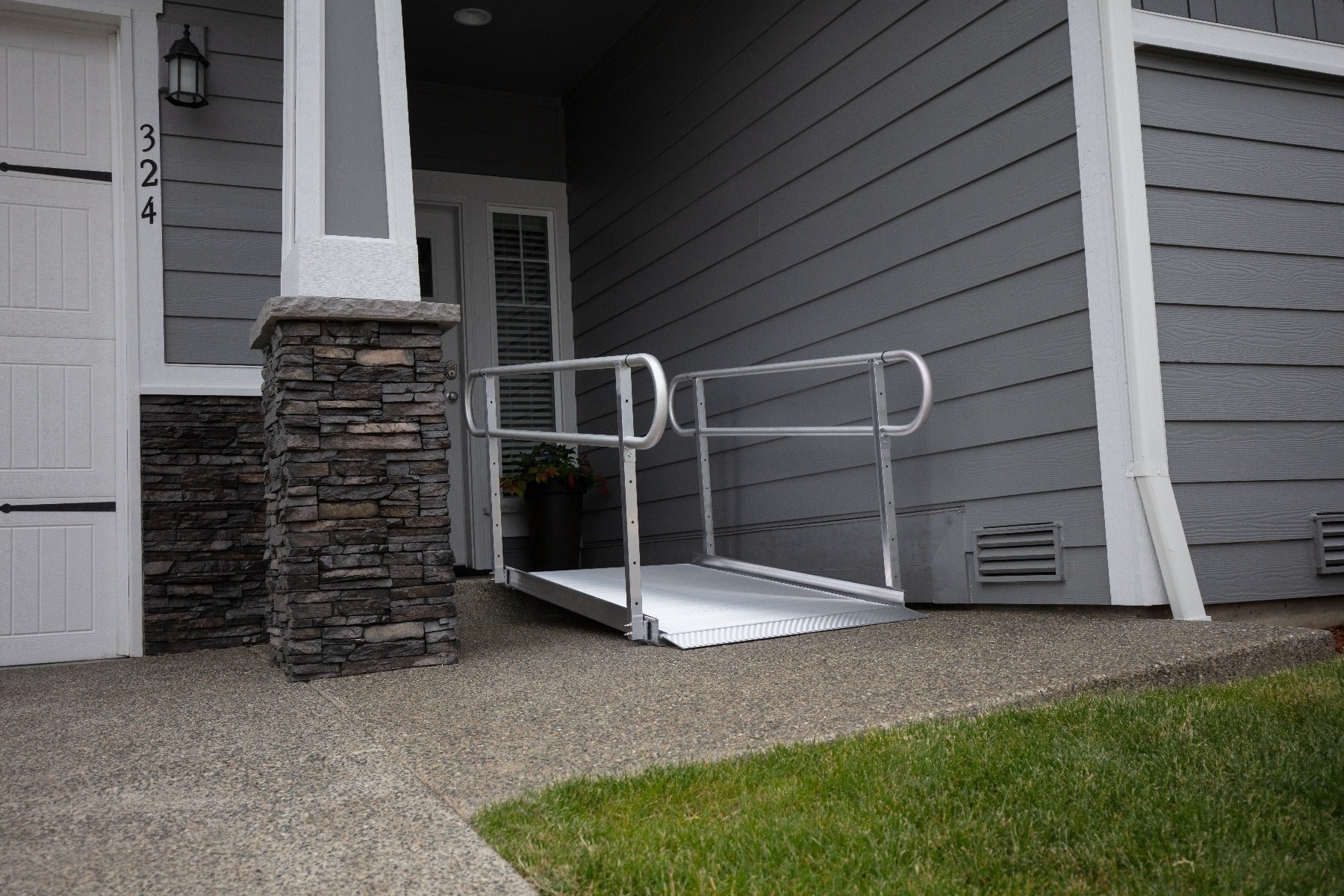

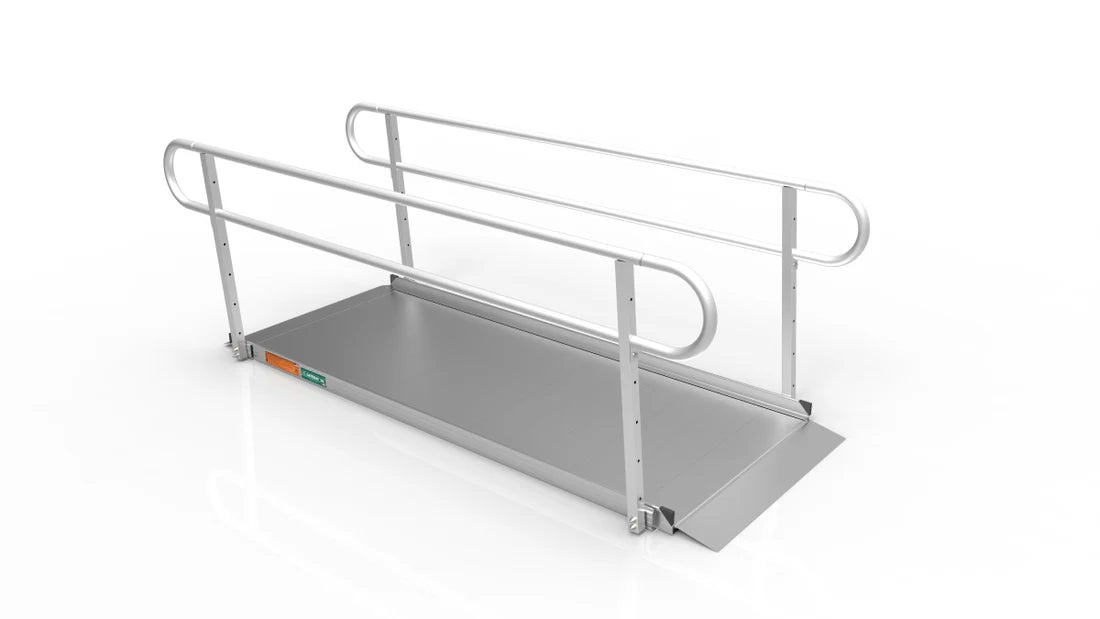

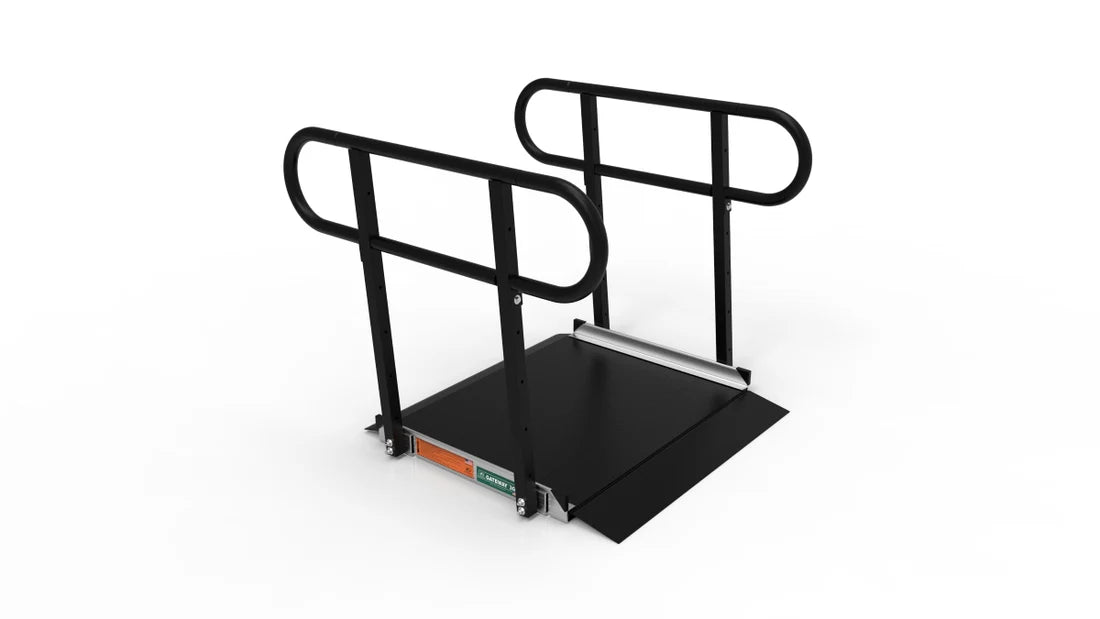

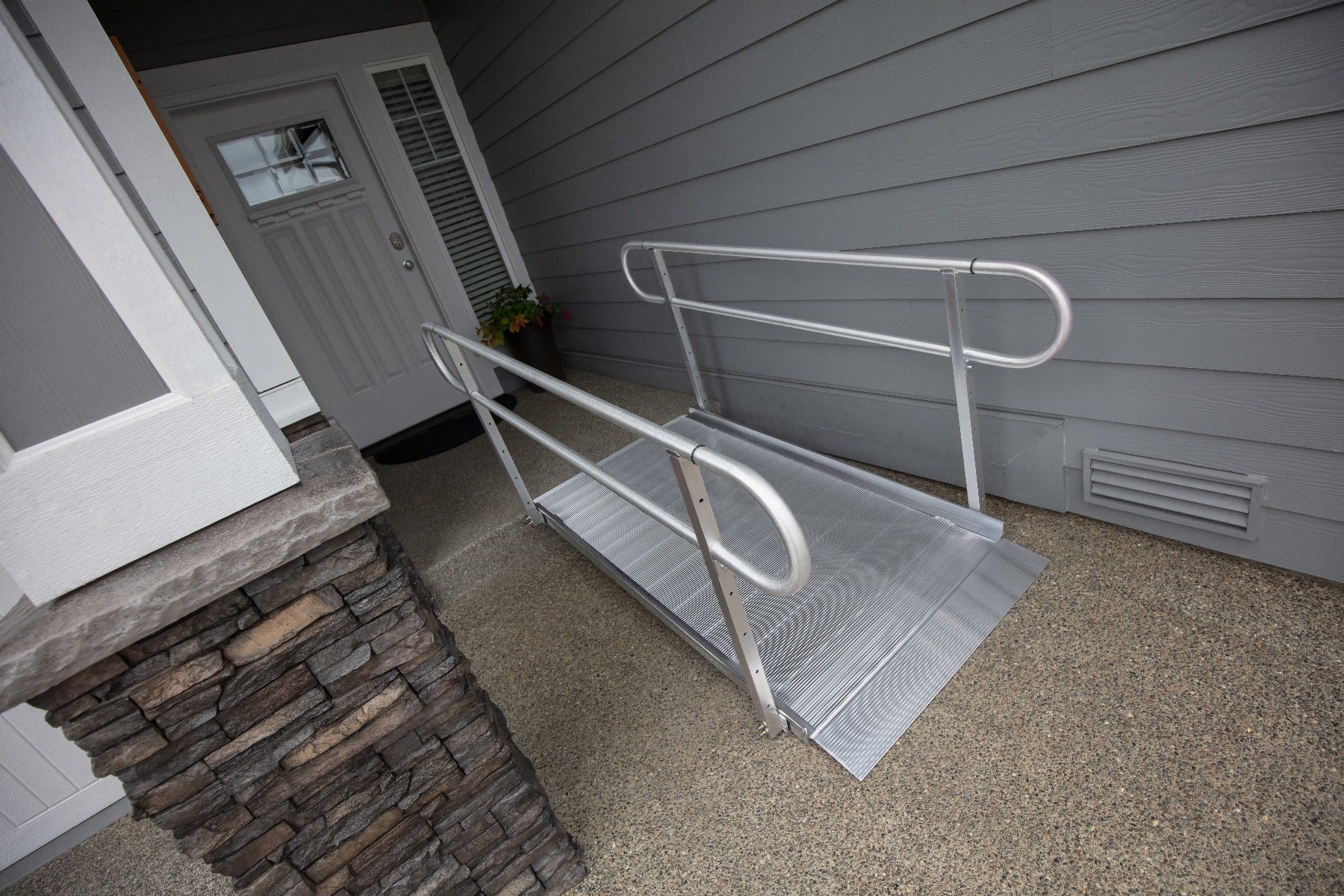

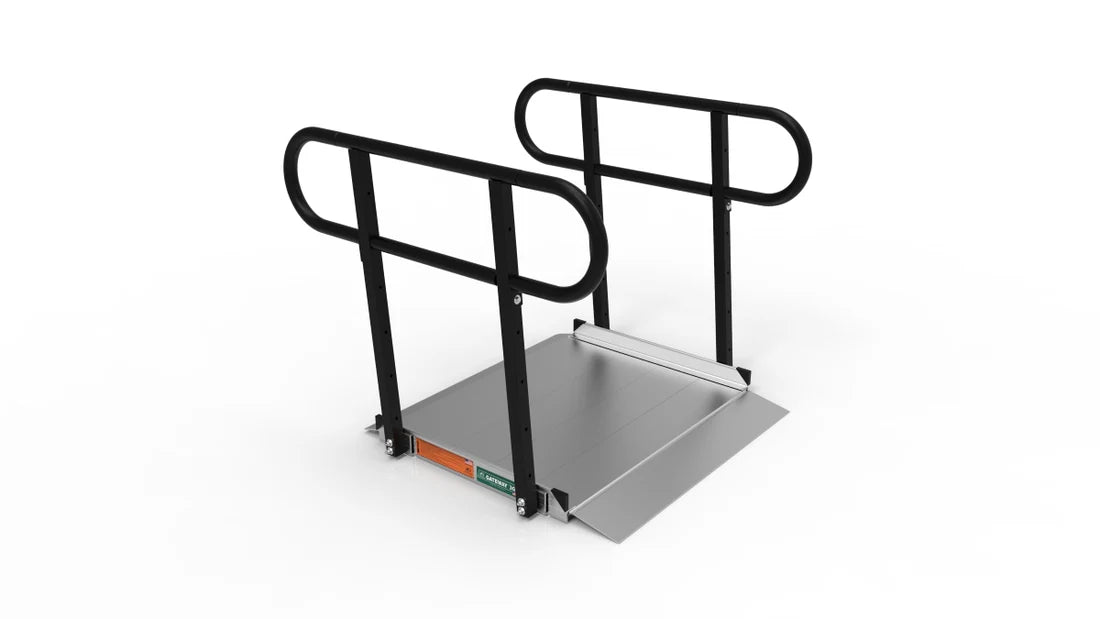

RAMP WITH TWO-LINE HANDRAILS

Model 3-FT 4-FT 5-FT 6-FT 7-FT
Usable Size (LxWxH) 3'x36'x34.5' 4'x36'x34.5' 5'x36'x34.5' 6'x36'x34.5' 7'x36'x34.5'
Overall Size (LxWxH) 3'x41.75'x36' 4'x41.75'x36

5'x41.75'x36'

 6'x41.75'x36' 7'x41.75'x3.5'
Curb Height (in.) 2 2 2 2 2

Handrail Length (ft.)

 2 3 4 5 6

Weight*

 44 lbs. 52 lbs. 60 lbs. 68 lbs. 74 lbs.

Weight Capacity

 1000 lbs. 1000 lbs. 1000 lbs. 1000 lbs. 1000 lbs.
Usage Guidelines** Up to 4' Up to 6' Up to 7' Up to 9' Up to 10'
Model 8-FT 9-FT 10-FT
Usable Size (LxW) 8'x36'x34.5' 9'x36'x34.5' 10'x36'x34.5'
Overall Size (LxWxH) 8'x41.75'x36' 9'x41.75'x36' 10'x41.75'x36'
Curb Height (in.) 2 4 4

Handrail Length (ft.)

 7 8 9

Weight*

 82 lbs. 96 lbs. 106 lbs.

Weight Capacity

 1000 lbs. 1000 lbs. 1000 lbs.
Usage Guidelines** Up to 12' Up to 13' Up to 15'

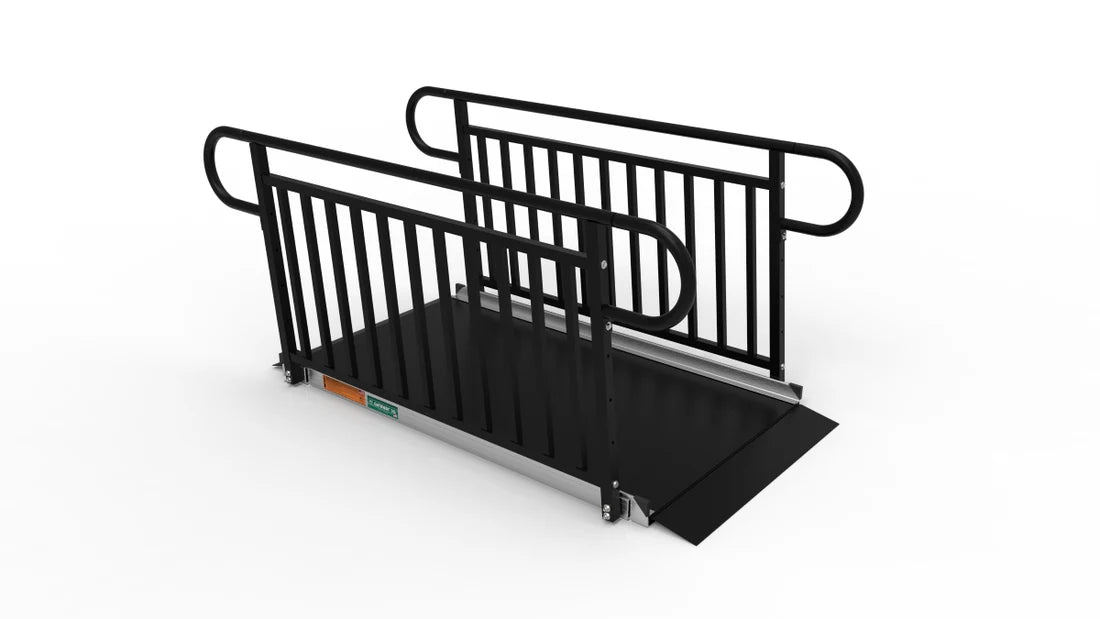

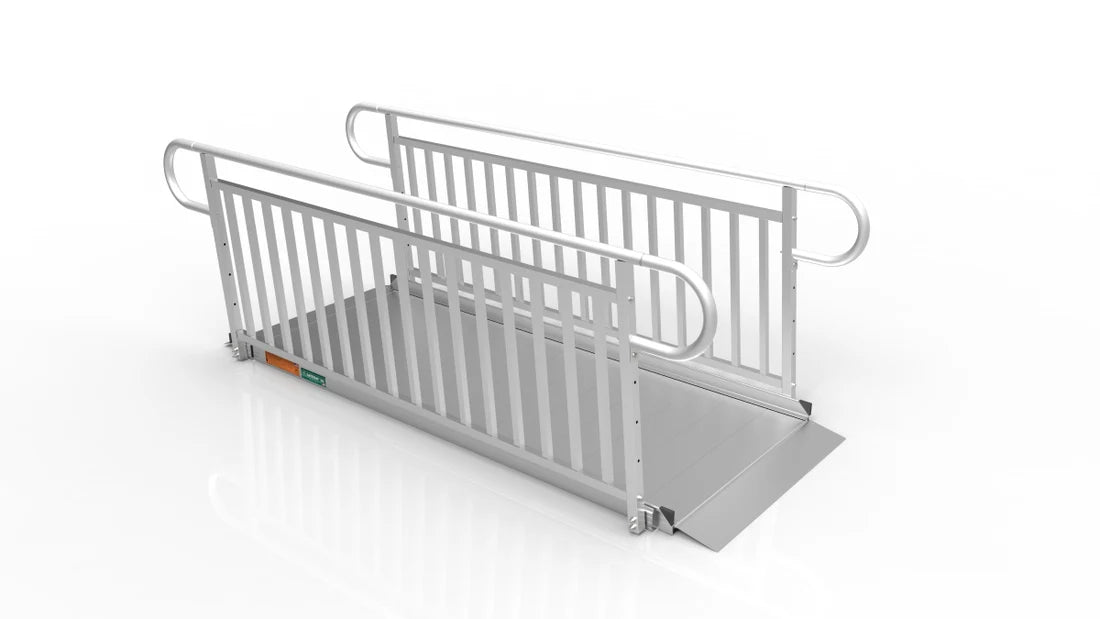

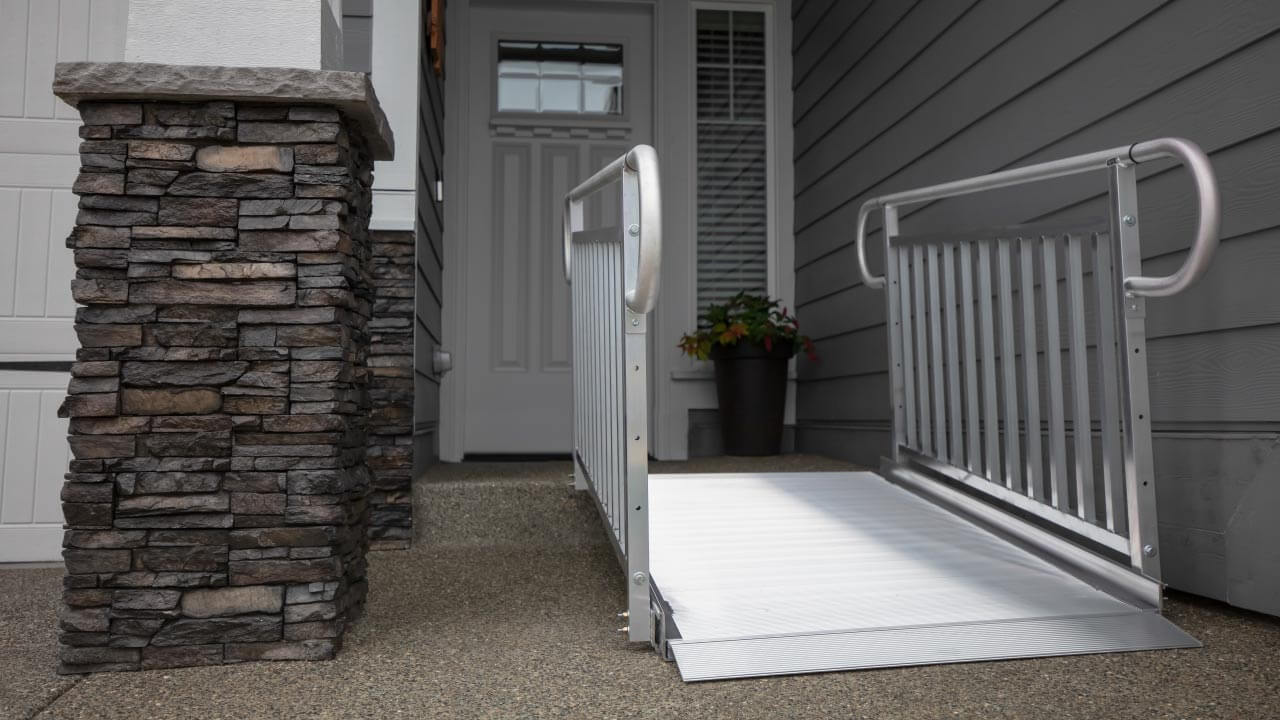

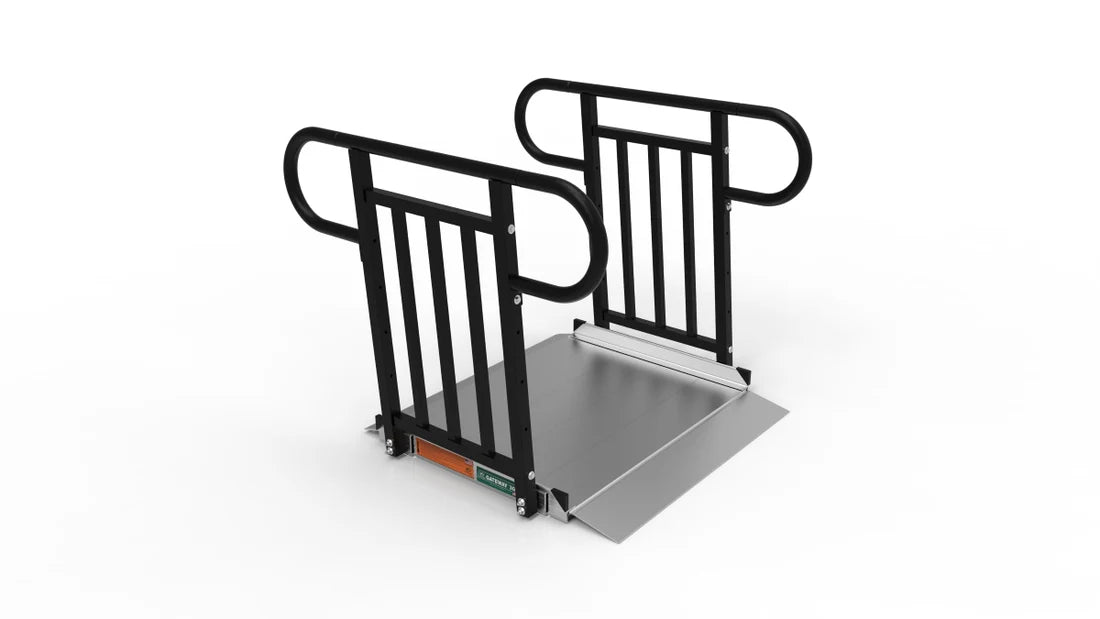

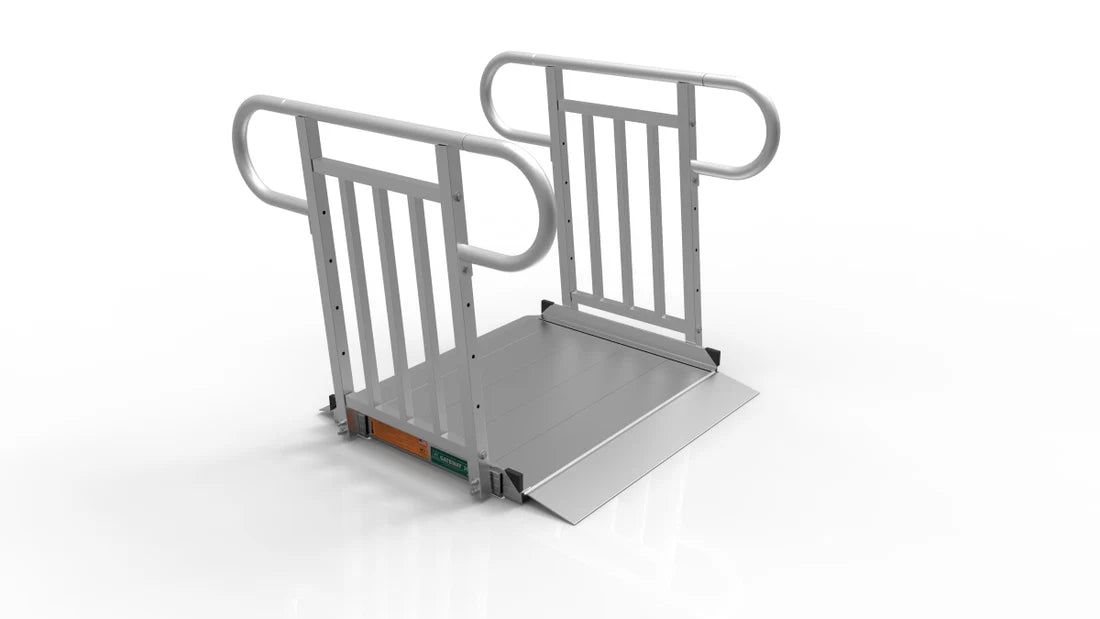

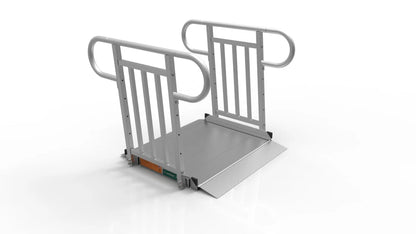

RAMP WITH VERTICAL PICKETS

Model 3-FT 4-FT 5-FT 6-FT 7-FT
Usable Size (LxWxH) 3'x36'x34.5' 4'x36'x34.5' 5'x36'x34.5' 6'x36'x34.5' 7'x36'x34.5'
Overall Size (LxWxH) 3'x41.75'x36' 4'x41.75'x36

5'x41.75'x36'

 6'x41.75'x36' 7'x41.75'x3.5'
Curb Height (in.) 2 2 2 2 2

Handrail Length (ft.)

 2 3 4 5 6

Weight*

 46 lbs. 58 lbs. 68 lbs. 78 lbs. 90 lbs.

Weight Capacity

 1000 lbs. 1000 lbs. 1000 lbs. 1000 lbs. 1000 lbs.
Usage Guidelines** Up to 4' Up to 6' Up to 7' Up to 9' Up to 10'
Model 8-FT 9-FT 10-FT
Usable Size (LxW) 8'x36'x34.5' 9'x36'x34.5' 10'x36'x34.5'
Overall Size (LxWxH) 8'x41.75'x36' 9'x41.75'x36' 10'x41.75'x36'
Curb Height (in.) 2 4 4

Handrail Length (ft.)

 7 8 9

Weight*

 98 lbs. 118 lbs. 128 lbs.

Weight Capacity

 1000 lbs. 1000 lbs. 1000 lbs.
Usage Guidelines** Up to 12' Up to 13' Up to 15'

*Weights and dimensions are approximate and subject to change

**Consult your mobility equipment manufacturer for proper degree of incline; never exceed their recommendations.

Warranty

Limited Lifetime Warranty

Homecare Products, Inc., dba EZ-ACCESS (“Manufacturer”), hereby warrants its products shall be free from defects in material and workmanship under normal use and service for the lifetime of the product. This limited warranty is applicable to Manufacturer’s parts and components only (i.e., warranty excludes powder-coated finish, applied non-skid tape, etc.).

Shipping / Returns

This unit is delivered via common LTL carrier on a pallet. This will be left curbside for standard delivery. Some carriers schedule delivery appointments.
