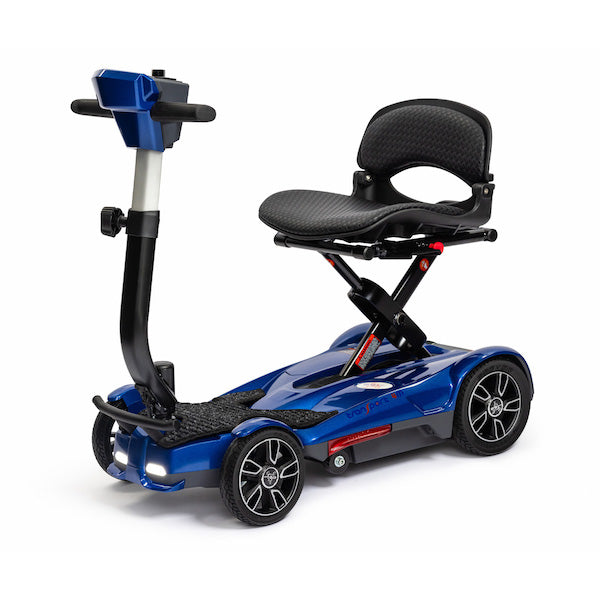

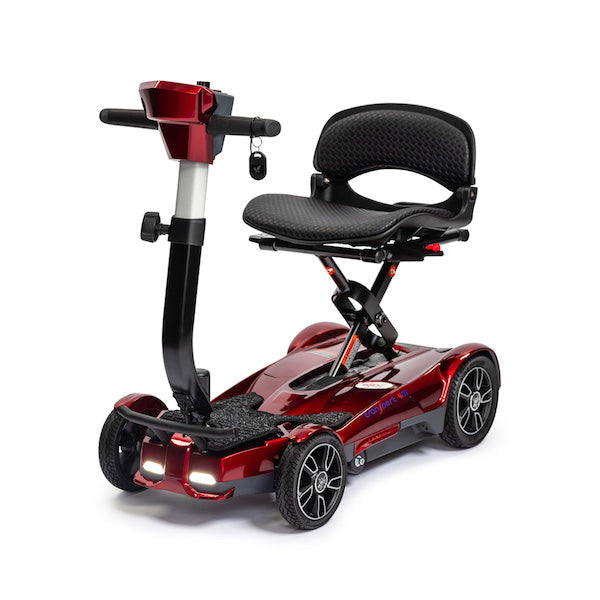

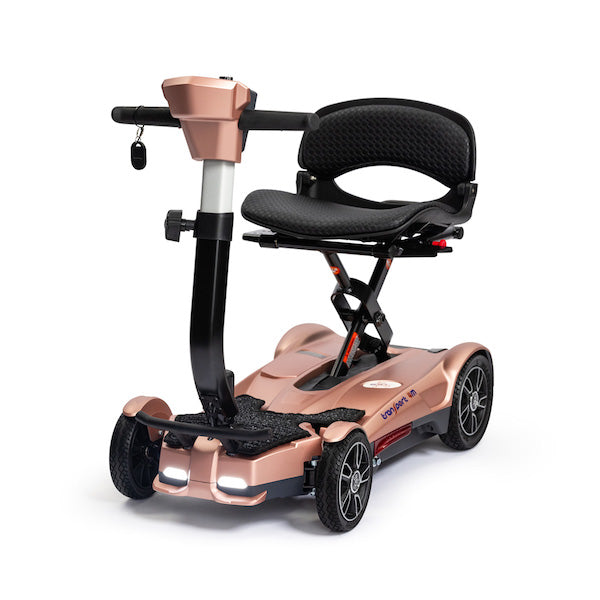

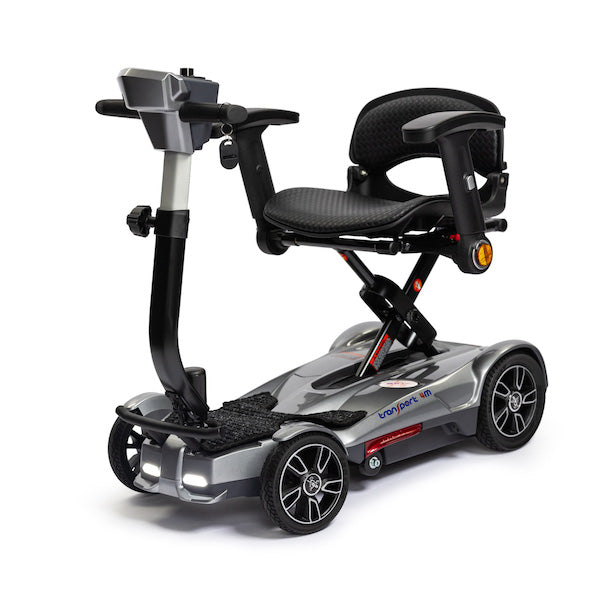

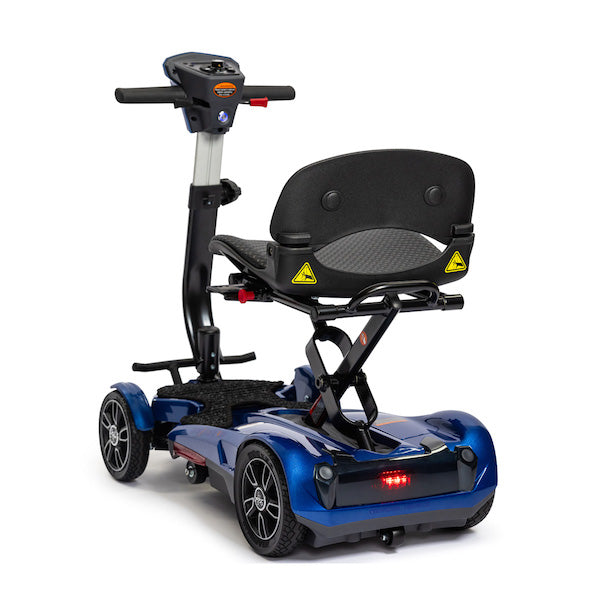

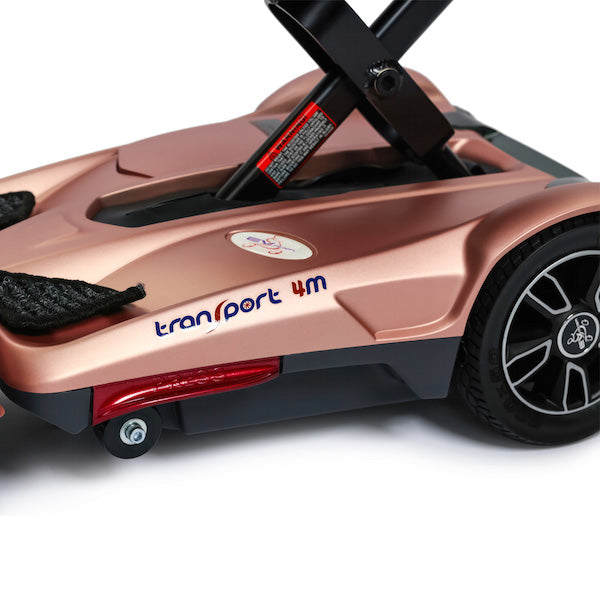

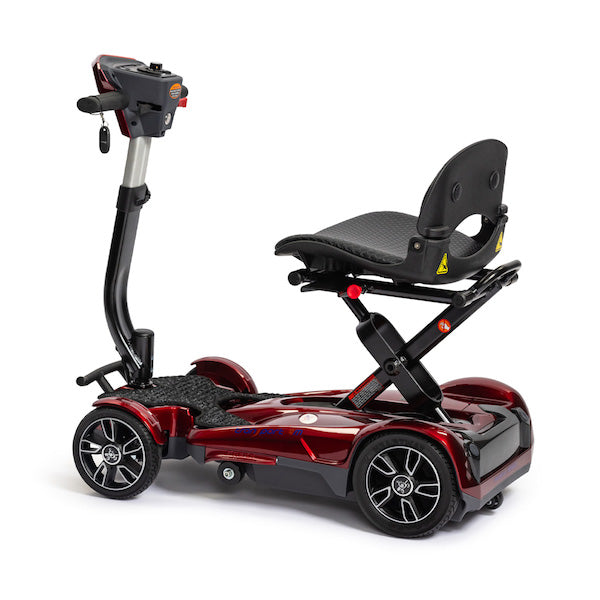

EV Rider Transport 4M Manual Folding Mobility Scooter

Compact design with 4-wheel stability

Transport 4M Manual Folding Scooter Features:

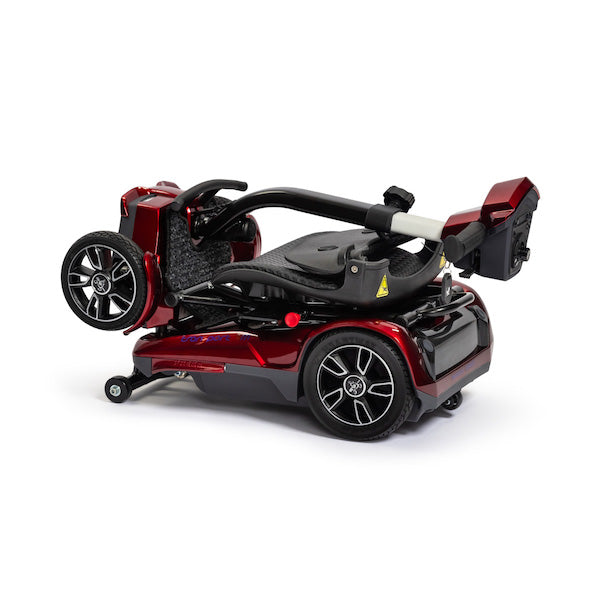

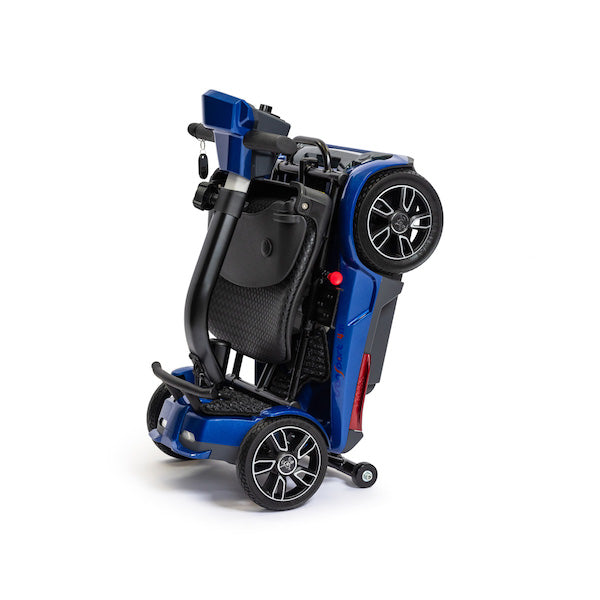

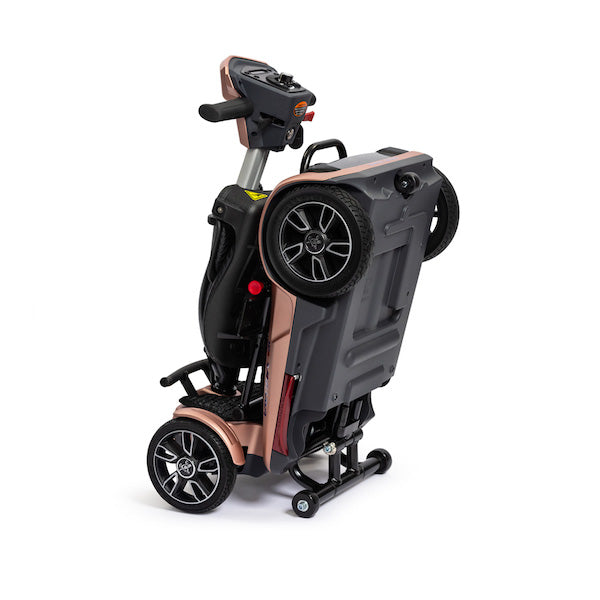

• •Folds manually in seconds
• •Weight capacity of 250 lbs
• •Airling approved lithium battery
• •3.7 mph top speed
• •Front steering sensor reduces speed when turning for added safety

Owners Manual

Brochure

Overall Length	33.5 in / 85 cm
Overall Width	23 in / 58.5 cm
Overall Height (at maximum tiller height)	33.5 in / 85 cm
Overall Height (at minimum tiller height)	30 in / 76 cm
Legroom - Floorboard Length x Width	17 in / 43 cm
Deck Height - Floorboard to Floor	5.9 in / 15 cm
Ground Clearance	1.4 / 3.6 cm
Turning Radius	39.3 in / 100 cm
Weight with Std.	55 lbs / 25 kgs
Weight without Batteries	51.8 lbs / 23.5 kgs
Seat Type	Folding Mobility Seat
Seat - Width x Depth x Height	15 x 12 x 9 in / 38 x 30.5 x 23 cm
Seat - Cushion Thickness	1 in / 2.5 cm
Seat Height - Cushion to Deck	15 in / 38 cm
Seat Height - Cushion to Floor	19.7 in / 50 cm
Tire Type	Solid Tires
Rim Type Rear	Industrial Plastic
Rim Type Front	Industrial Plastic
OEM Spec Front	N/A
Outside Diameter Rear	7.9 in / 20 cm
Tire Width Front	1.57 in / 4 cm
Battery Type and Power	24V 10.05Ah Lithium Ion x1 (included)
Brake System	Electromagnetic
Charger Type	Off Board Li-Ion Charger 1 Amp 24 VDC Input: 100/240 Vac
Chargin Time	4 - 6 hrs
Controller	Dynamic R-Series 50A
Driving Range	Up to 6.8 miles / 11 km
Load Capacity	250 lbs / 115 kg
Motor and Drive Location	180 watt 24 volt
Speed - Maximum	up to 3.7 mph
Colors	Blue, Silver, Rose Gold, Red
Tiller Type	T-Shape Type

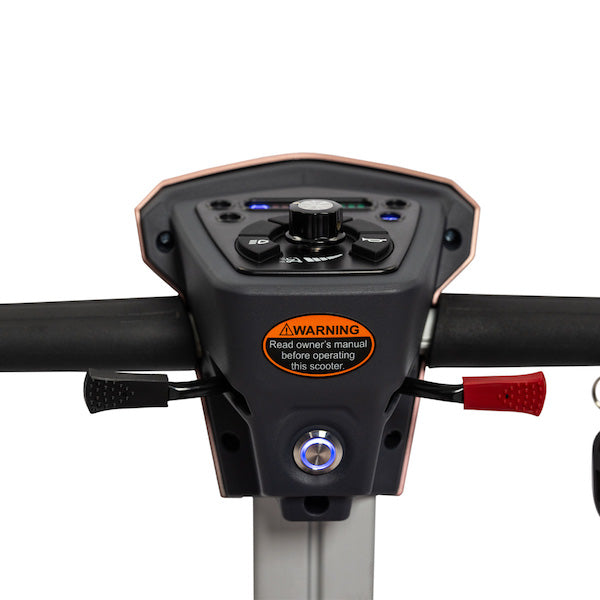

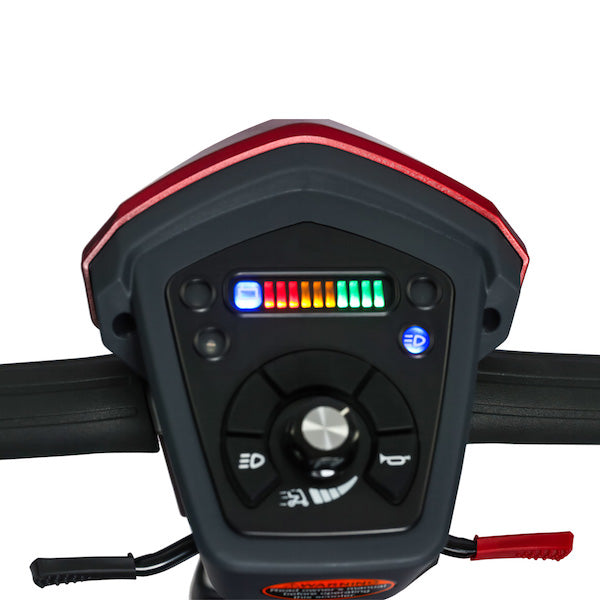

Throttle Control Type	Pot Meter
Anti-Tipper Wheels-Rear	Rear Casters - Standard

Warranty

THREE-YEAR LIMITED WARRANTY Three (3) years from the date of purchase on all structural frame components; including platform, seat post, and frame.

ONE-YEAR LIMITED WARRANTY One (1) year from the date of purchase, if any part or electronic component of the Scooter or charger is found upon examination to be defective in material and/or workmanship, it will be repaired or replaced, at EV Rider, LLC’s option, without charge. Labor charges are NOT included. The purchaser is responsible for the delivery to the authorized repair facility. Satisfactory proof of purchase, serial number and the date of purchase are always required. For warranty service, please contact the dealer/company from whom you purchased your EV Rider product.

6 MONTHS LIMITED WARRANTY All spare parts carry a six month limited warranty from the day of sale. This includes replacement batteries and chargers sold separately from the original scooter purchase

ONE-YEAR WARRANTY EXCEPTIONS

Motor: In cases where there is an increase in the operational noise level, the warranty does not apply. (An increase in operational noise level usually occurs due to abusive and excessive strain on the scooter). The batteries are warranted by EV Rider for one year after the purchase of the Unit with the exception of the Stand-NRide scooter.

Service: Warranty service can be performed by EV Rider, LLC or by an authorized EV Rider, LLC service facility. Do not return faulty parts to EV Rider, LLC without prior consent. A request for a Return Authorization is required prior to returning items. All transportation costs and shipping damage incurred while submitting units and/or parts for repair or replacement are the responsibility of the original purchaser.

WARRANTY EXCLUSIONS: This warranty is only given to the original purchaser of the Scooter. This Warranty excludes:

• Batteries that are provided free with the scooter. See the EV Rider invoice/packing slip for additional detail.

• Consumable items which may need replacing due to normal wear and tear (tires, tubes, belts, bulbs, upholstery and seating, motor brushes, fuses, plastic shrouds and footrest covers, etc.)

• Damaged caused by: battery fluid spillage or leakage, abuse, misuse, accident, or negligence, improper operation, excessive loading, maintenance, or storage, commercial use or use other than normal.

• Used other than for the purpose of the purchaser’s mobility.

• Repairs and/or modifications made to any part of the scooter without specific and prior consent from EV Rider, LLC.

• Labor, service calls, shipping, and other charges incurred for repair of the product not approved by EV Rider, LLC.

Batteries: Batteries carry a limited warranty which is subject to a stringent wear and tear clause. Any battery faults due to a defect in the original manufacture will normally become obvious within the first two months of use. Any gradual deterioration in performance after this period is normally associated with fair wear and tear, misuse or accidental damage and as such is not covered by the manufacturer’s warranty. There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of the original purchase and to the extent permitted by law. Any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded.

Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of limitation of incidental or consequential damages. So, the above limitation or exclusion may not apply to you.

This unit is delivered via UPS or FedEx.

The following conditions apply:

This item has a 20% Restocking Fee.

You are responsible for the cost of return shipping.

The product must be new and unused and in the original packaging.

All accessories and items that were included in the box must be returned.

Items canceled after the product has already shipped will be considered a return.

Delivery and service fees are not refundable.

Custom-made by the manufacturer to suit your specific needs are non-returnable.

An RA (Return Authorization) from Top Mobility must be requested within 15 days of delivery.

The item must be shipped back to the address noted on the RA within 15 days.

Once approved, your refund, minus any restocking and freight fees, will be issued to your original form of payment.

If you have questions about this item please call a Top Mobility Customer Service Expert at 1-888-364-3813.
